XLR 3 Pin to Blunt Install Cables - 18 AWG Shielded Audio Cable

Brand: Custom Cable Connection      SKU: 31095-1X

Length
Gender
  • Custom Cable Connection microphone cables are a great choice for custom "pro" audio hookups to connect microphones to PA amplifiers, mixers or extension cords. These hookups are balanced, which helps cut out noise and hum pickup. A balanced line consists of three paths of current flow, using a pair of twisted wires with a shield covering them. The twisted pair would carry the actual audio signal while the overall shield acts as a noise absorbing barrier. The shield is connected to ground.

    • The outer jacket is constructed from a durable, ultra-flexible matte black PVC compound. O.D.: .23
    • 18-gauge bare copper conductors

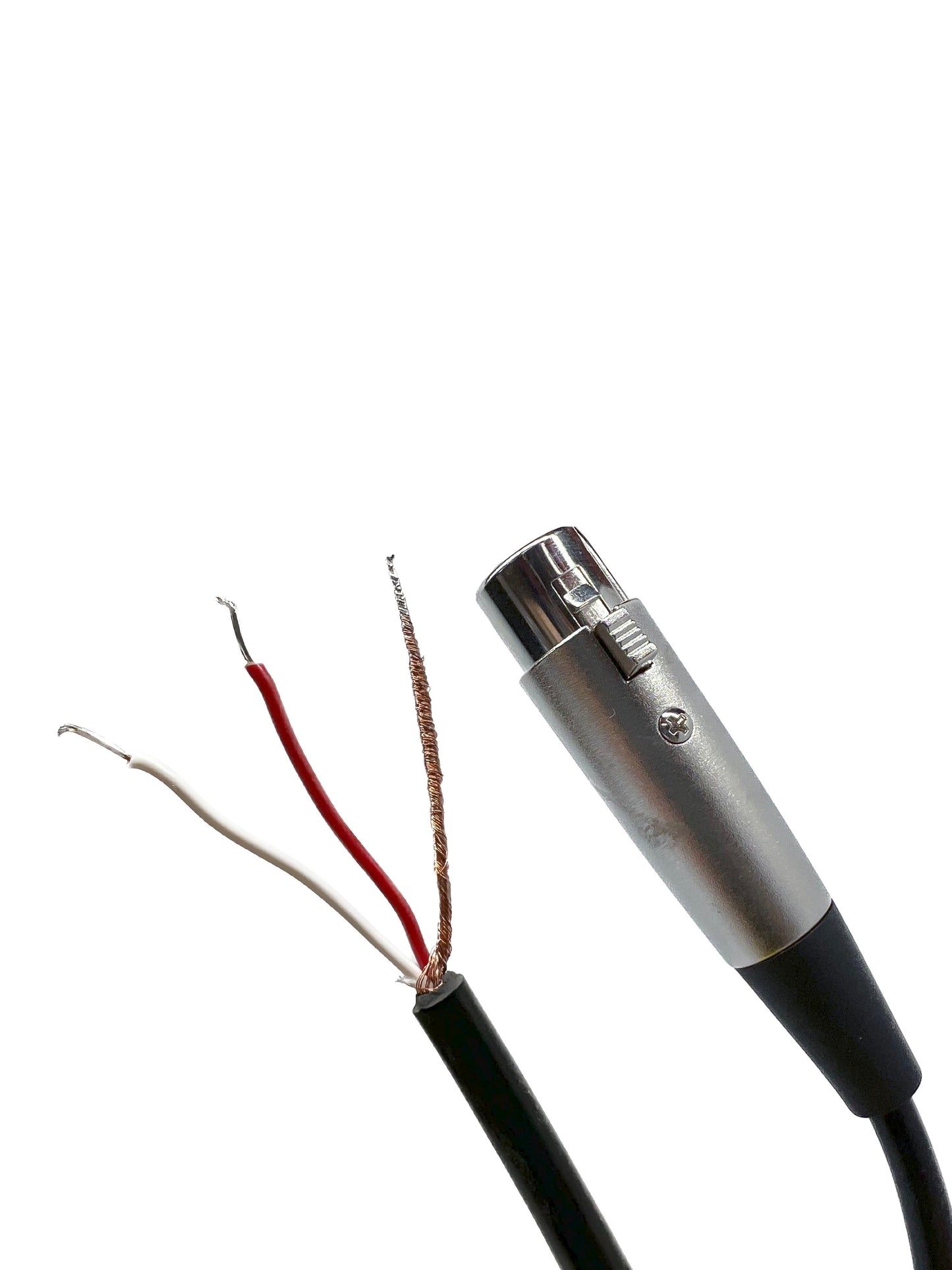

    • Connectors: XLR Female Jack to 3 Bare Wires
    • Rugged Nickel Plated XLR Connectors with Strain Relief
    • Pinout
    • Pin 1- Shield
    • Pin 2- Red
    • Pin 3- White

      Two options available Male to Blunt or Female to Blunt

      Amazon FNSKU
    • 31094-6X = B079KNDW24
    • 31095-6X = B079KNTP59
    • 31095-3X = B079KMZCQL
    • 31095-1X = B01MZ7RZ2N

    Product Specs

    Cable type: 18-2 Audio

    Connector type: XLR to Blunt

    Gender: Female to Blunt

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Barcode Length / Gender Weight
      31095-1X B01MZ7RZ2N 1ft / Female to Blunt 0.2 lb

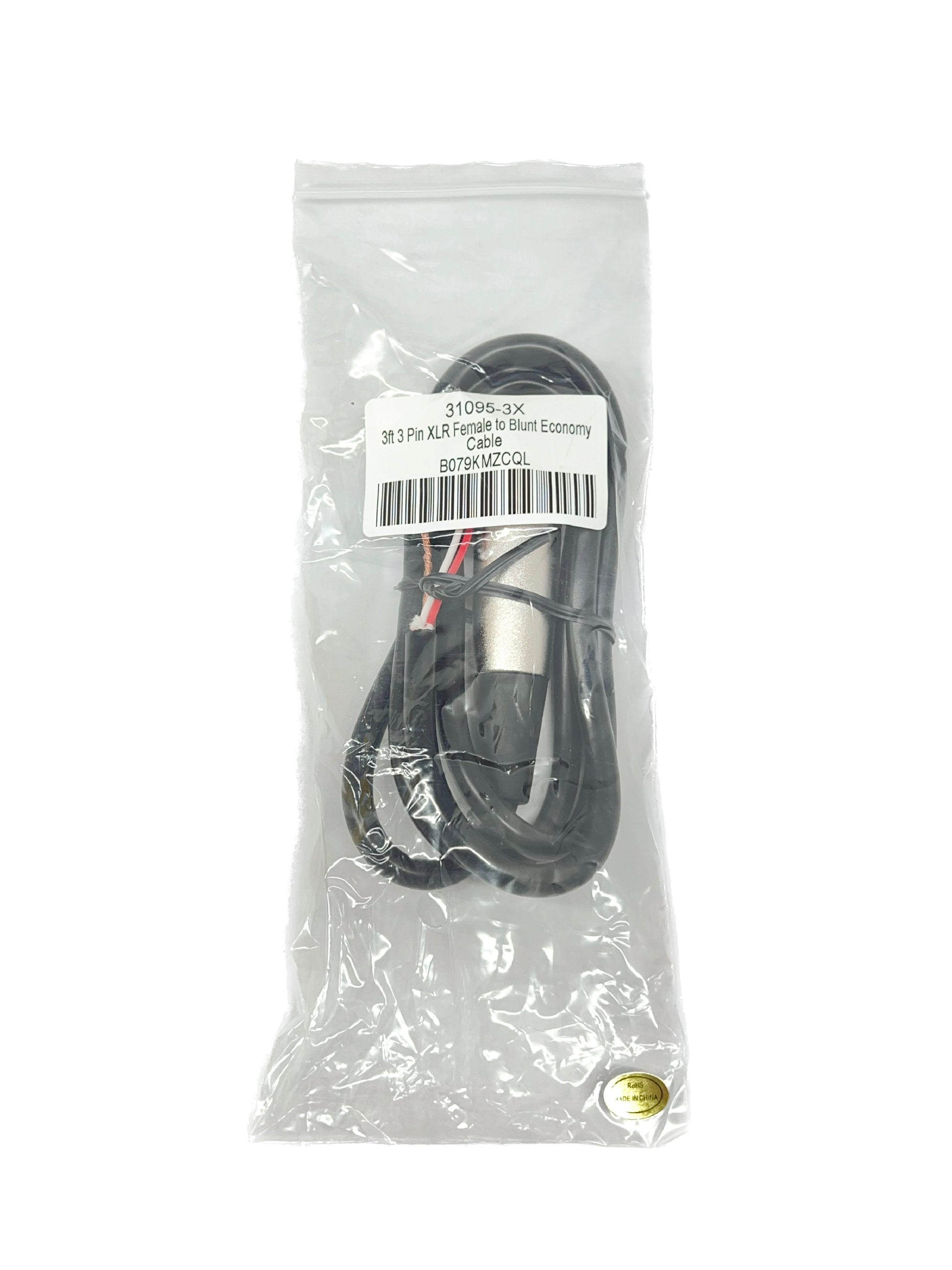

      31095-3X B079KMZCQL 3ft / Female to Blunt 0.25 lb

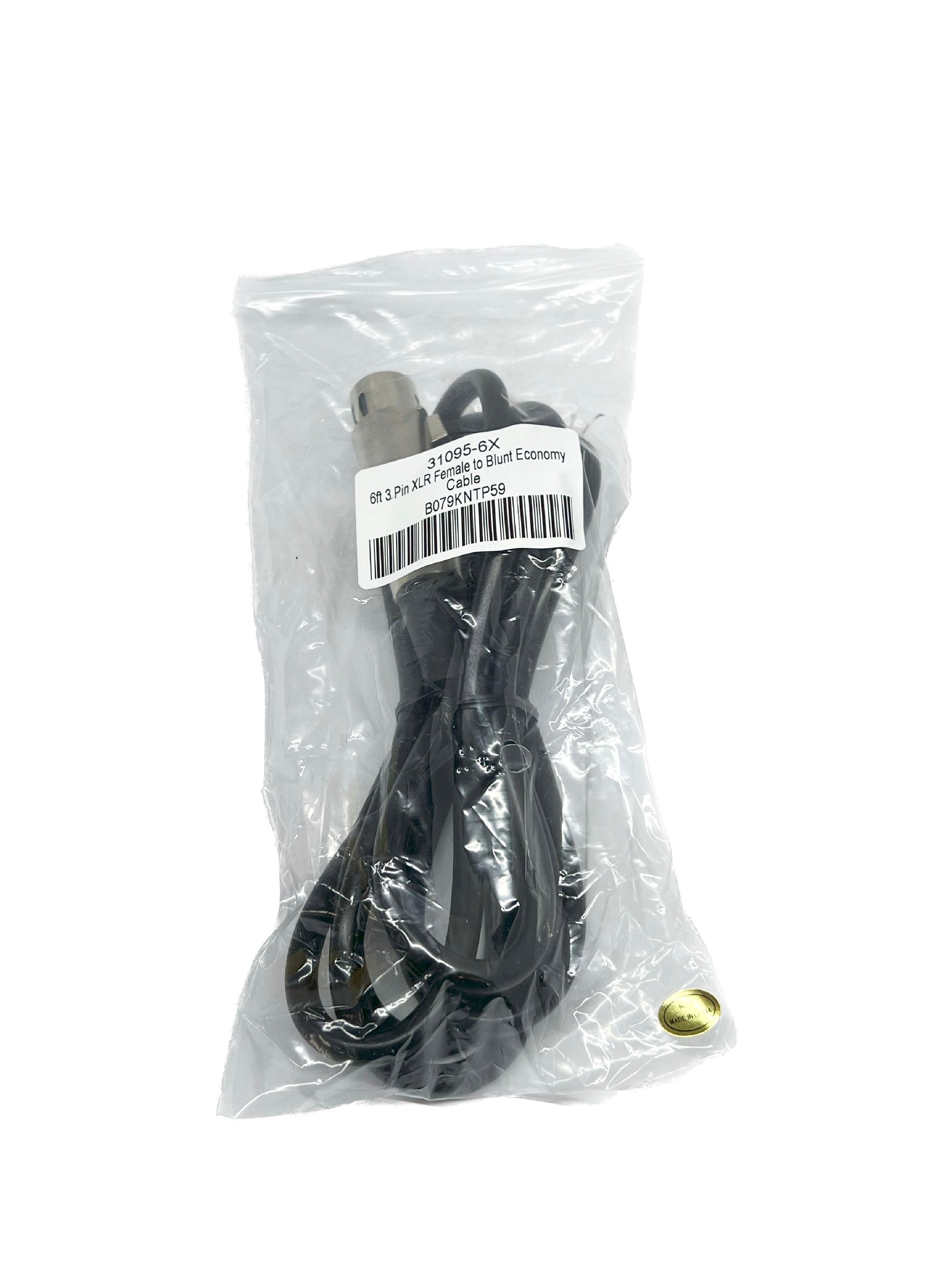

      31095-6X B079KNTP59 6ft / Female to Blunt 0.35 lb
      31094-6X B079KNDW24 6ft / Male to Blunt 0.35 lb
