{"id":6127621898440,"title":"12G Rated BNC Female to HD Micro BNC Right Angle HD-SDI Video Adapter Cable","handle":"bnc-female-to-hdmicro-bnc-right-angle-12g-video-adapter","description":"12G Rated Standard BNC Female to High Density Micro BNC Right Angle cables are designed for professional broadcast applications. Adapt your Standard BNC connections to High Density Micro BNC with this adapter cable. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 23 AWG solid copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 3/6/12 Gbps data transfer.

HD Micro BNC— Delivers true 75 Ohm performance in a footprint 51% smaller than traditional BNC connectors allowing four times the density Cable,

12G, UHDTV1, UHDTV2

Connector A: True 75 Ohm Standard BNC Female

Connector B: True 75 Ohm High Density Micro BNC Male

Number of Coax: 1

RG Type: Mini RG59

AWG: 23

Stranding: Solid

Conductor Material: SC -Silvered Copper Conductor

Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene

Outer Shield Material : Foil + 95% Tinned Copper Braid Shield

Cable Outer Diameter: 0.159 in

Used with Blackmagic Design, Blackmagic HyperDeck Shuttle, Red One, Atomos, and many other patch panels, CCTV devices and cameras.

","published_at":"2020-12-14T11:42:35-06:00","created_at":"2020-12-14T11:42:36-06:00","vendor":"Custom Cable Connection","type":"Cable","tags":["12G","12G Rated","Adapter","Audio Video Cables","BNC to HD BNC","Cable","HD-SDI","Micro BNC","Mini RG59","UHDTV1","UHDTV2"],"price":3200,"price_min":3200,"price_max":4900,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":37704570699976,"title":"6 Inch / Black","option1":"6 Inch","option2":"Black","option3":null,"sku":"103829-RA-12G-6Inch","requires_shipping":true,"taxable":true,"featured_image":{"id":23098400112840,"product_id":6127621898440,"position":2,"created_at":"2020-12-14T13:47:10-06:00","updated_at":"2020-12-14T13:48:44-06:00","alt":null,"width":2048,"height":1482,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975324","variant_ids":[37704570699976,37704570732744,37704570765512,37704570831048,37704570863816,37704570896584,37704570929352,37704570962120]},"available":true,"name":"12G Rated BNC Female to HD Micro BNC Right Angle HD-SDI Video Adapter Cable - 6 Inch / Black","public_title":"6 Inch / Black","options":["6 Inch","Black"],"price":3200,"weight":68,"compare_at_price":null,"inventory_management":null,"barcode":"","featured_media":{"alt":null,"id":15269018206408,"position":2,"preview_image":{"aspect_ratio":1.382,"height":1482,"width":2048,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975230"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":37704570732744,"title":"1ft / Black","option1":"1ft","option2":"Black","option3":null,"sku":"103829-RA-12G-1","requires_shipping":true,"taxable":true,"featured_image":{"id":23098400112840,"product_id":6127621898440,"position":2,"created_at":"2020-12-14T13:47:10-06:00","updated_at":"2020-12-14T13:48:44-06:00","alt":null,"width":2048,"height":1482,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975324","variant_ids":[37704570699976,37704570732744,37704570765512,37704570831048,37704570863816,37704570896584,37704570929352,37704570962120]},"available":true,"name":"12G Rated BNC Female to HD Micro BNC Right Angle HD-SDI Video Adapter Cable - 1ft / Black","public_title":"1ft / Black","options":["1ft","Black"],"price":3270,"weight":77,"compare_at_price":null,"inventory_management":null,"barcode":"","featured_media":{"alt":null,"id":15269018206408,"position":2,"preview_image":{"aspect_ratio":1.382,"height":1482,"width":2048,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975230"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":37704570765512,"title":"18 Inch / Black","option1":"18 Inch","option2":"Black","option3":null,"sku":"103829-RA-12G-18INCH","requires_shipping":true,"taxable":true,"featured_image":{"id":23098400112840,"product_id":6127621898440,"position":2,"created_at":"2020-12-14T13:47:10-06:00","updated_at":"2020-12-14T13:48:44-06:00","alt":null,"width":2048,"height":1482,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975324","variant_ids":[37704570699976,37704570732744,37704570765512,37704570831048,37704570863816,37704570896584,37704570929352,37704570962120]},"available":true,"name":"12G Rated BNC Female to HD Micro BNC Right Angle HD-SDI Video Adapter Cable - 18 Inch / Black","public_title":"18 Inch / Black","options":["18 Inch","Black"],"price":3480,"weight":91,"compare_at_price":null,"inventory_management":null,"barcode":"","featured_media":{"alt":null,"id":15269018206408,"position":2,"preview_image":{"aspect_ratio":1.382,"height":1482,"width":2048,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975230"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":37704570831048,"title":"2ft / Black","option1":"2ft","option2":"Black","option3":null,"sku":"103829-RA-12G-2","requires_shipping":true,"taxable":true,"featured_image":{"id":23098400112840,"product_id":6127621898440,"position":2,"created_at":"2020-12-14T13:47:10-06:00","updated_at":"2020-12-14T13:48:44-06:00","alt":null,"width":2048,"height":1482,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975324","variant_ids":[37704570699976,37704570732744,37704570765512,37704570831048,37704570863816,37704570896584,37704570929352,37704570962120]},"available":true,"name":"12G Rated BNC Female to HD Micro BNC Right Angle HD-SDI Video Adapter Cable - 2ft / Black","public_title":"2ft / Black","options":["2ft","Black"],"price":3670,"weight":113,"compare_at_price":null,"inventory_management":null,"barcode":"","featured_media":{"alt":null,"id":15269018206408,"position":2,"preview_image":{"aspect_ratio":1.382,"height":1482,"width":2048,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975230"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":37704570863816,"title":"3ft / Black","option1":"3ft","option2":"Black","option3":null,"sku":"103829-RA-12G-3","requires_shipping":true,"taxable":true,"featured_image":{"id":23098400112840,"product_id":6127621898440,"position":2,"created_at":"2020-12-14T13:47:10-06:00","updated_at":"2020-12-14T13:48:44-06:00","alt":null,"width":2048,"height":1482,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975324","variant_ids":[37704570699976,37704570732744,37704570765512,37704570831048,37704570863816,37704570896584,37704570929352,37704570962120]},"available":true,"name":"12G Rated BNC Female to HD Micro BNC Right Angle HD-SDI Video Adapter Cable - 3ft / Black","public_title":"3ft / Black","options":["3ft","Black"],"price":3810,"weight":136,"compare_at_price":null,"inventory_management":null,"barcode":"","featured_media":{"alt":null,"id":15269018206408,"position":2,"preview_image":{"aspect_ratio":1.382,"height":1482,"width":2048,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975230"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":37704570896584,"title":"5ft / Black","option1":"5ft","option2":"Black","option3":null,"sku":"103829-RA-12G-5","requires_shipping":true,"taxable":true,"featured_image":{"id":23098400112840,"product_id":6127621898440,"position":2,"created_at":"2020-12-14T13:47:10-06:00","updated_at":"2020-12-14T13:48:44-06:00","alt":null,"width":2048,"height":1482,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975324","variant_ids":[37704570699976,37704570732744,37704570765512,37704570831048,37704570863816,37704570896584,37704570929352,37704570962120]},"available":true,"name":"12G Rated BNC Female to HD Micro BNC Right Angle HD-SDI Video Adapter Cable - 5ft / Black","public_title":"5ft / Black","options":["5ft","Black"],"price":4100,"weight":154,"compare_at_price":null,"inventory_management":null,"barcode":"","featured_media":{"alt":null,"id":15269018206408,"position":2,"preview_image":{"aspect_ratio":1.382,"height":1482,"width":2048,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975230"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":37704570929352,"title":"6ft / Black","option1":"6ft","option2":"Black","option3":null,"sku":"103829-RA-12G-6","requires_shipping":true,"taxable":true,"featured_image":{"id":23098400112840,"product_id":6127621898440,"position":2,"created_at":"2020-12-14T13:47:10-06:00","updated_at":"2020-12-14T13:48:44-06:00","alt":null,"width":2048,"height":1482,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975324","variant_ids":[37704570699976,37704570732744,37704570765512,37704570831048,37704570863816,37704570896584,37704570929352,37704570962120]},"available":true,"name":"12G Rated BNC Female to HD Micro BNC Right Angle HD-SDI Video Adapter Cable - 6ft / Black","public_title":"6ft / Black","options":["6ft","Black"],"price":4300,"weight":227,"compare_at_price":null,"inventory_management":null,"barcode":"","featured_media":{"alt":null,"id":15269018206408,"position":2,"preview_image":{"aspect_ratio":1.382,"height":1482,"width":2048,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975230"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":37704570962120,"title":"10ft / Black","option1":"10ft","option2":"Black","option3":null,"sku":"103829-RA-12G-10","requires_shipping":true,"taxable":true,"featured_image":{"id":23098400112840,"product_id":6127621898440,"position":2,"created_at":"2020-12-14T13:47:10-06:00","updated_at":"2020-12-14T13:48:44-06:00","alt":null,"width":2048,"height":1482,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975324","variant_ids":[37704570699976,37704570732744,37704570765512,37704570831048,37704570863816,37704570896584,37704570929352,37704570962120]},"available":true,"name":"12G Rated BNC Female to HD Micro BNC Right Angle HD-SDI Video Adapter Cable - 10ft / Black","public_title":"10ft / Black","options":["10ft","Black"],"price":4900,"weight":272,"compare_at_price":null,"inventory_management":null,"barcode":"","featured_media":{"alt":null,"id":15269018206408,"position":2,"preview_image":{"aspect_ratio":1.382,"height":1482,"width":2048,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975230"}},"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["//cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA-12G.jpg?v=1607975324","//cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975324"],"featured_image":"//cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA-12G.jpg?v=1607975324","options":["Length","Color"],"media":[{"alt":null,"id":15269036163272,"position":1,"preview_image":{"aspect_ratio":1.272,"height":949,"width":1207,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA-12G.jpg?v=1607975324"},"aspect_ratio":1.272,"height":949,"media_type":"image","src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA-12G.jpg?v=1607975324","width":1207},{"alt":null,"id":15269018206408,"position":2,"preview_image":{"aspect_ratio":1.382,"height":1482,"width":2048,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975230"},"aspect_ratio":1.382,"height":1482,"media_type":"image","src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/103829-RA.jpg?v=1607975230","width":2048}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"12G Rated Standard BNC Female to High Density Micro BNC Right Angle cables are designed for professional broadcast applications. Adapt your Standard BNC connections to High Density Micro BNC with this adapter cable. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 23 AWG solid copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 3/6/12 Gbps data transfer.

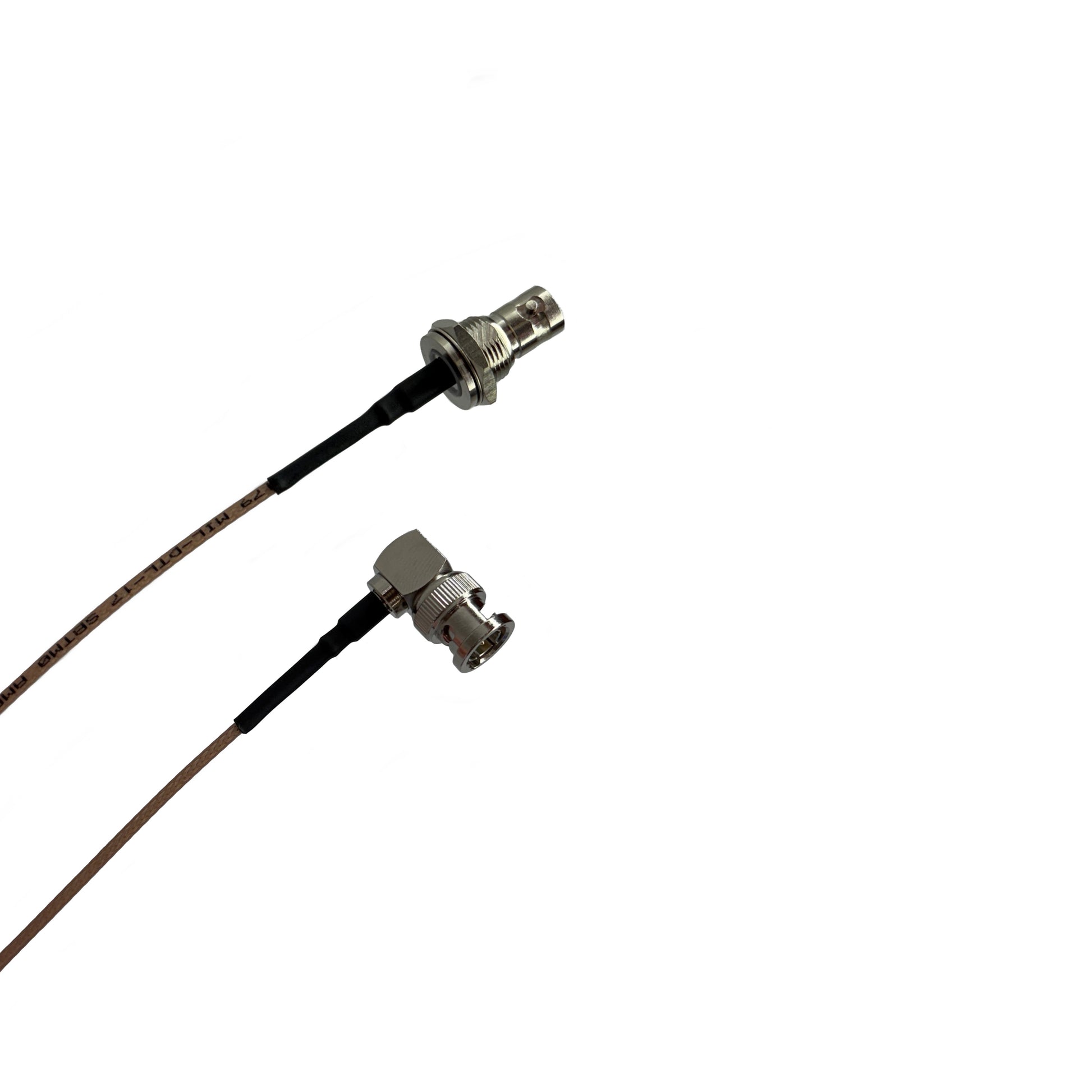

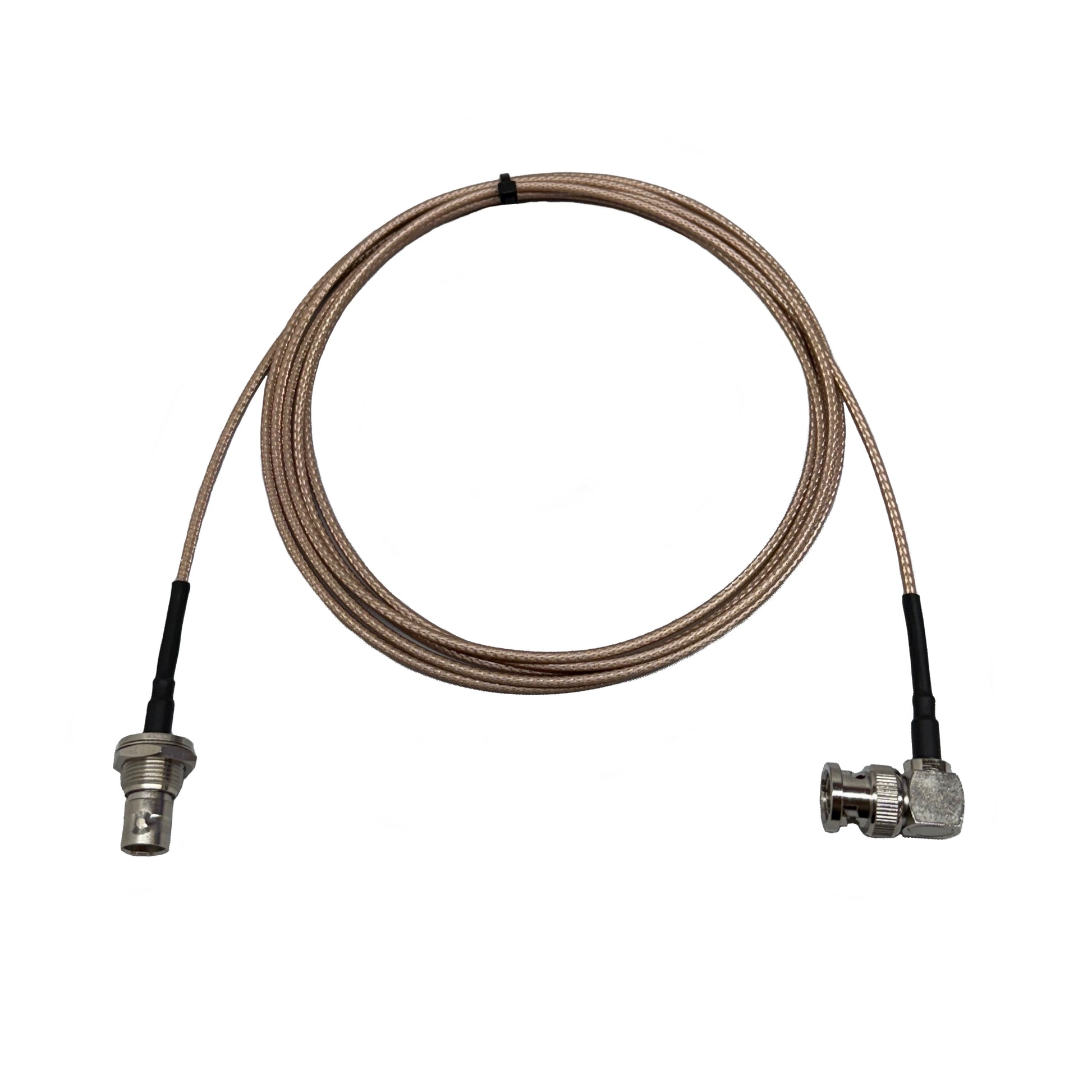

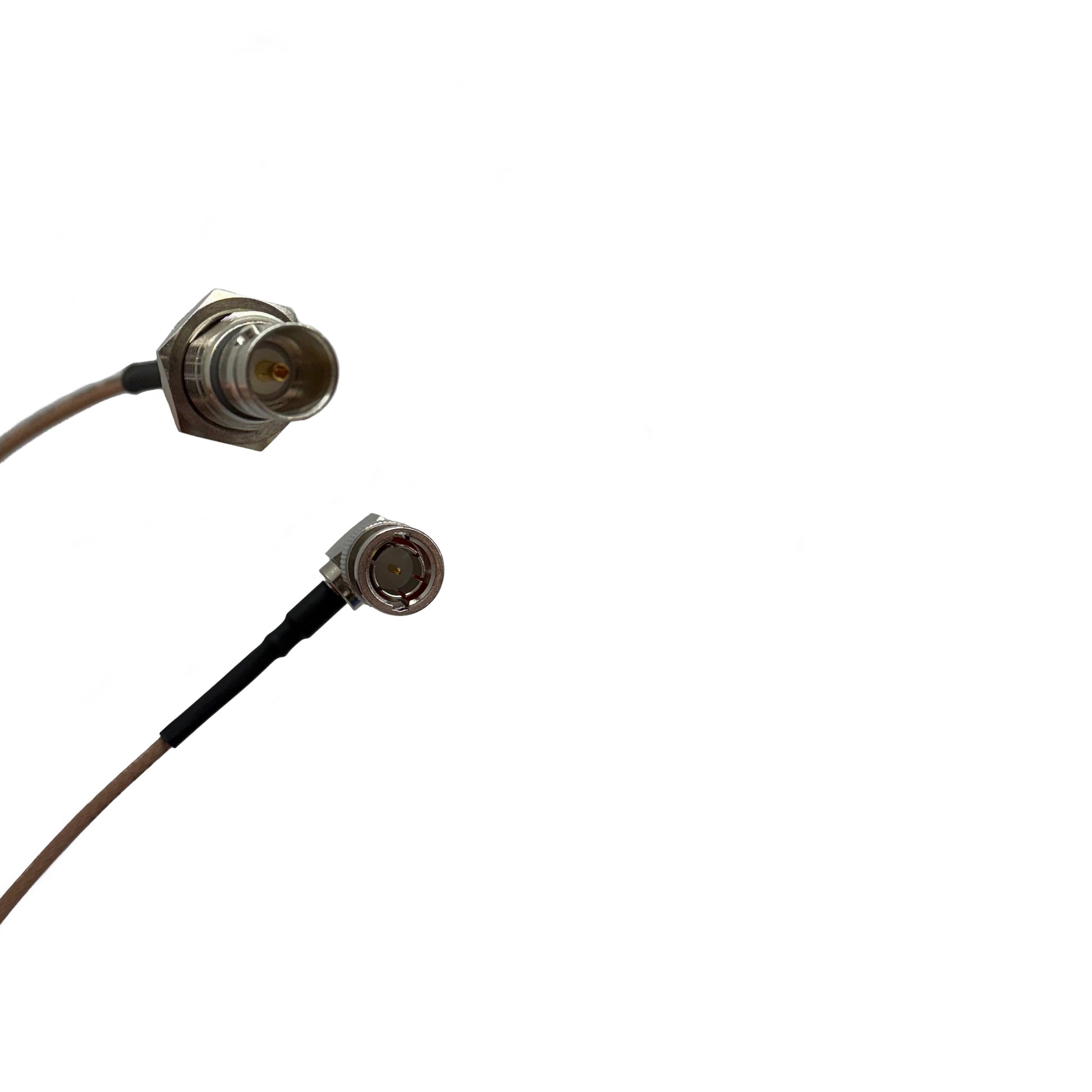

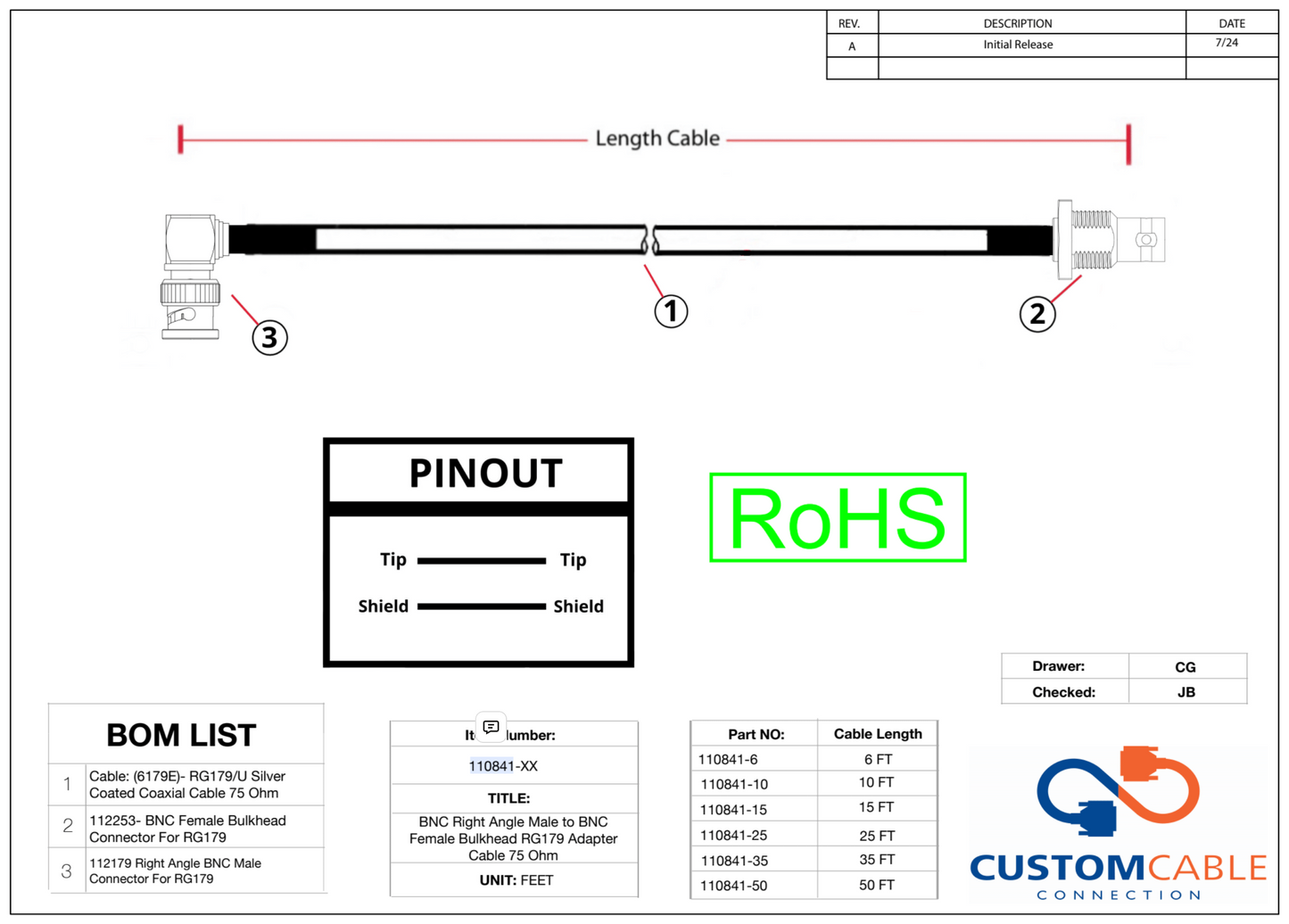

BNC Right Angle Male to BNC Female Bulkhead RG179 Adapter Cable 75 Ohm

Product Specs
