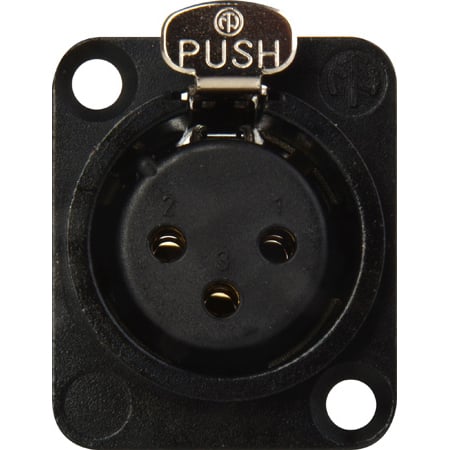

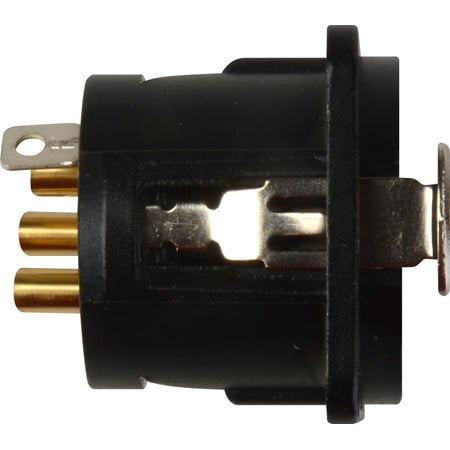

NEUTRIK NC3FD-L-B-1 3-Pin Female XLR Panel/Chassis Mount Connector - Latching - Black/Gold

NEUTRIK NC3FD-L-B-1 3-Pin Female XLR Panel/Chassis Mount Connector - Latching - Black/Gold

$7.72 USD
$7.72 USD
Sale Sold out
Shipping calculated at checkout.

SKU: NC3FD-L-B-1
NC3FD-L-B-1 - Overview NEUTRIK Group Neutrik NC3FD-L-B-1 is a 3 pole female receptacle, solder cups, black metal housing, gold contacts Universal D-size metal body XLR panel mount series. UL recognized component. Features: Robust "D" metal shell Standardized D sized 24 mm panel cutout Solder cups on 3 - 7 pole version Specifications: Connection Type: XLR Gender: Female Electrical Capacitance between contacts: ≤ 4 pF Contact resistance: ≤ 5 mΩ Dielectric strength: 1,5 kVdc Insulation resistance: > 2 GΩ (initial) Rated current per contact: 16 A Rated voltage: < 50 V Mechanical Insertion force: ≤ 20 N Withdrawal force: ≤ 20 N Lifetime: > 1000 mating cycles Wiresize: max. 2.5 mm² Wiresize: max. 14 AWG Wiring: Solder contacts Locking device: Latch lock Chassis shape: D
View full details
