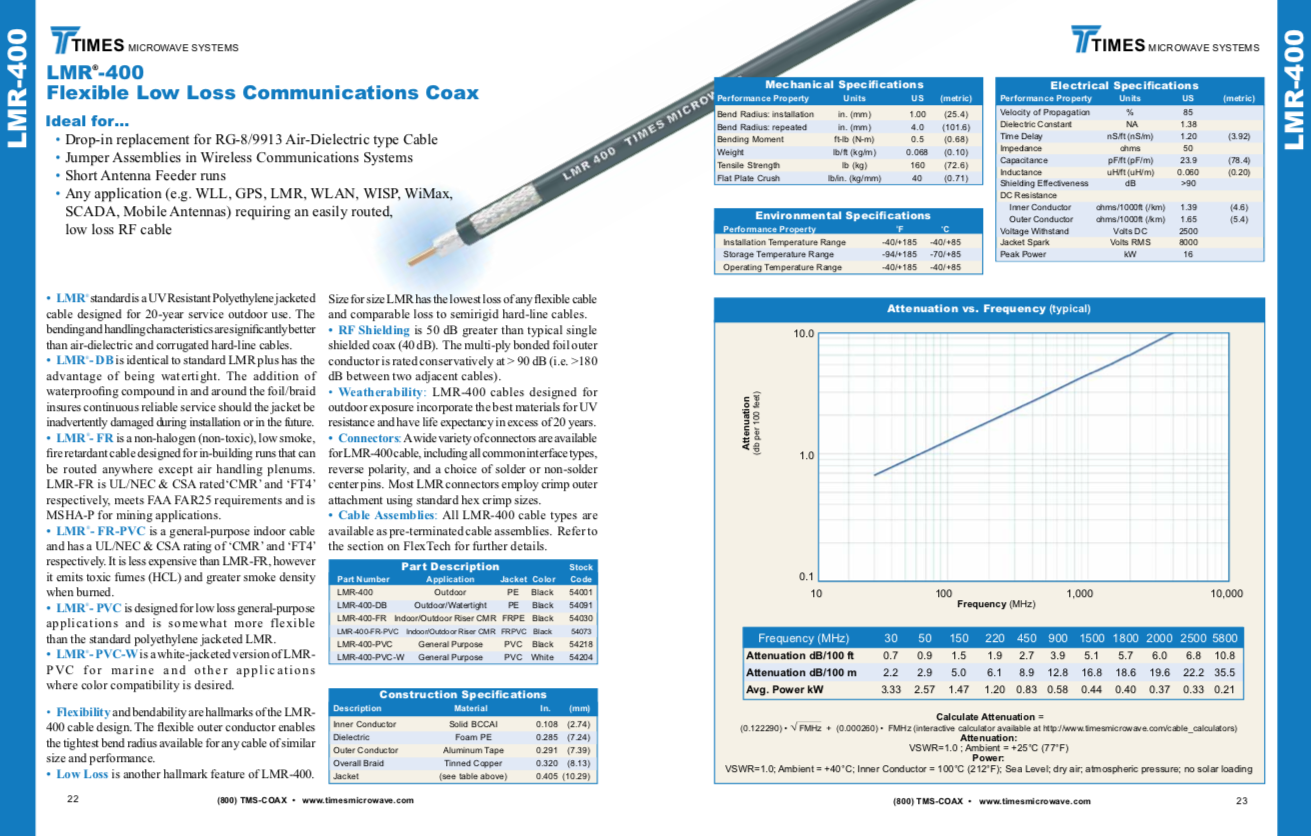

Times Microwave LMR-400-DB Flexible Low Loss Coax Outdoor/Watertight PE Black

Brand: Times Microwave      SKU: LMR-400-DB/1000

Length
Color
Black
  • LMR®-DB is identical to standard LMR plus has the advantage of being watertight. The addition of waterproofing compound in and around the foil/braid insures continuous reliable service should the jacket be inadvertently damaged during installation or in the future.

    Flexibility and bendability are hallmarks of the LMR-400 cable design. The flexible outer conductor enables the tightest bend radius available for any cable of similar size and performance.

    Low Loss is another hallmark feature of LMR-400 Size for size LMR has the lowest loss of any flexible cable and comparable loss to semi rigid hard-line cables.

    RF Shielding is 50 dB greater than typical single shielded coax (40 dB). The multi-ply bonded foil outer conductor is rated conservatively at > 90 dB (i.e. >180 dB between two adjacent cables).

    Weatherability: LMR-400-DB cables designed for outdoor exposure incorporate the best materials for UV resistance and have life expectancy in excess of 20 years.

    Connectors: A wide variety of connectors are available for LMR-400 cable, including all common interface types, reverse polarity, and a choice of solder or non-solder center pins. Most LMR connectors employ crimp outer attachment using standard hex crimp sizes.

    • Cable Type: LMR-400-DB
    • Impedance: 50 ohm
    • Outer Diameter: .405 inch
    • Outdoor Grade WaterTight Material
    • Drop-in replacement for RG-8

    Product Specs

    Cable type: LMR-400

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Length / Color Weight
      LMR-400-DB/1000 1000ft / Black 72.0 lb
