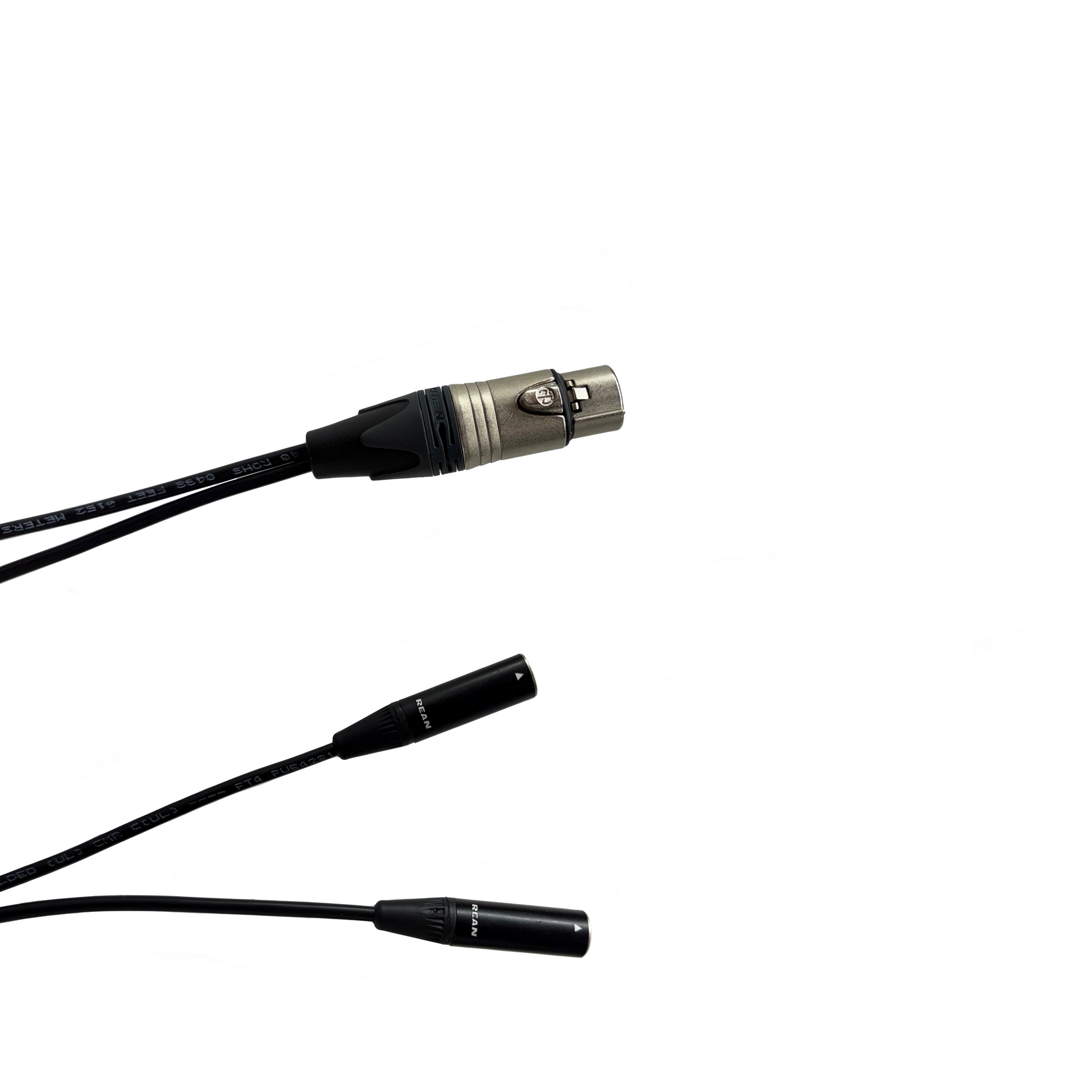

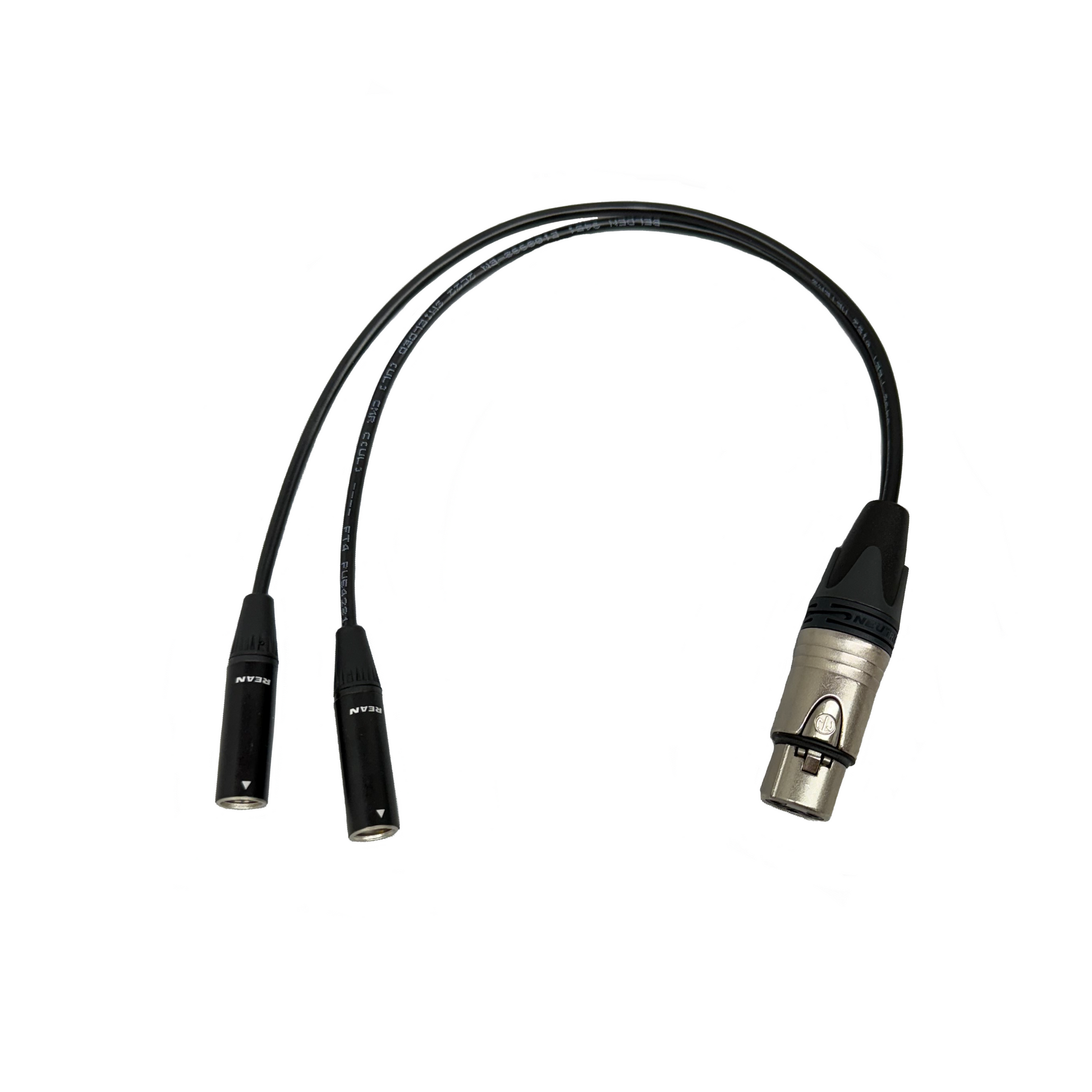

XLR 3 Pin Female to Two Male Mini XLR 3 Pin Y-Cable

Brand: Custom Cable Connection      SKU: 115716-1

Length
Pinout
  • XLR 3 Pin Female to Two Male Mini XLR 3 Pin Y-Cable from Custom Cable Connection. The Belden 9451 cable features 22-gauge stranded conductors and a drain wire, which are tinned to resist oxidation. The conductors and drain wire are wrapped with an aluminum foil shield to resist noise and interference. Wired straight through.

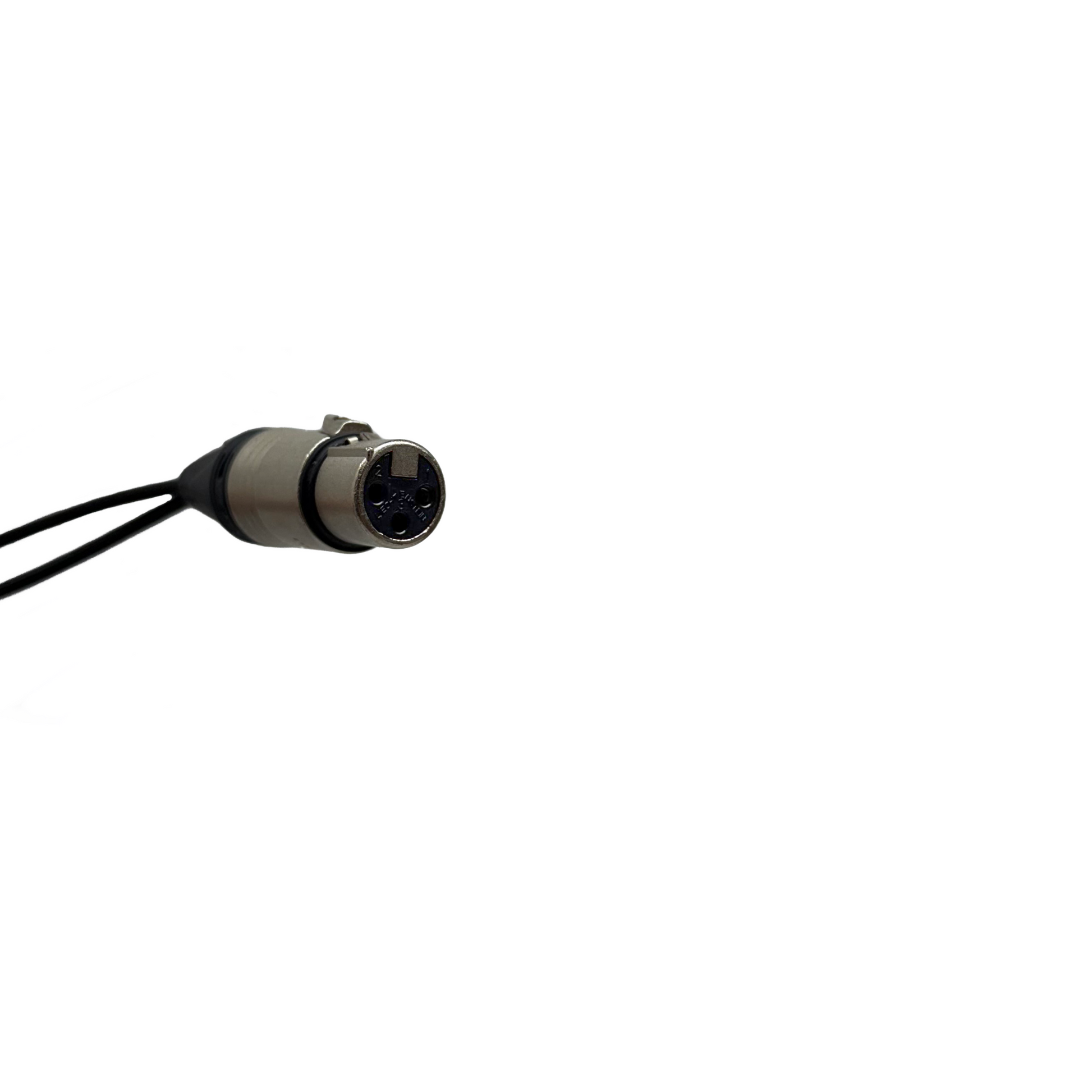

    • Connector 1 : XLR Female 3 Pin - Neutrik NC3FXX

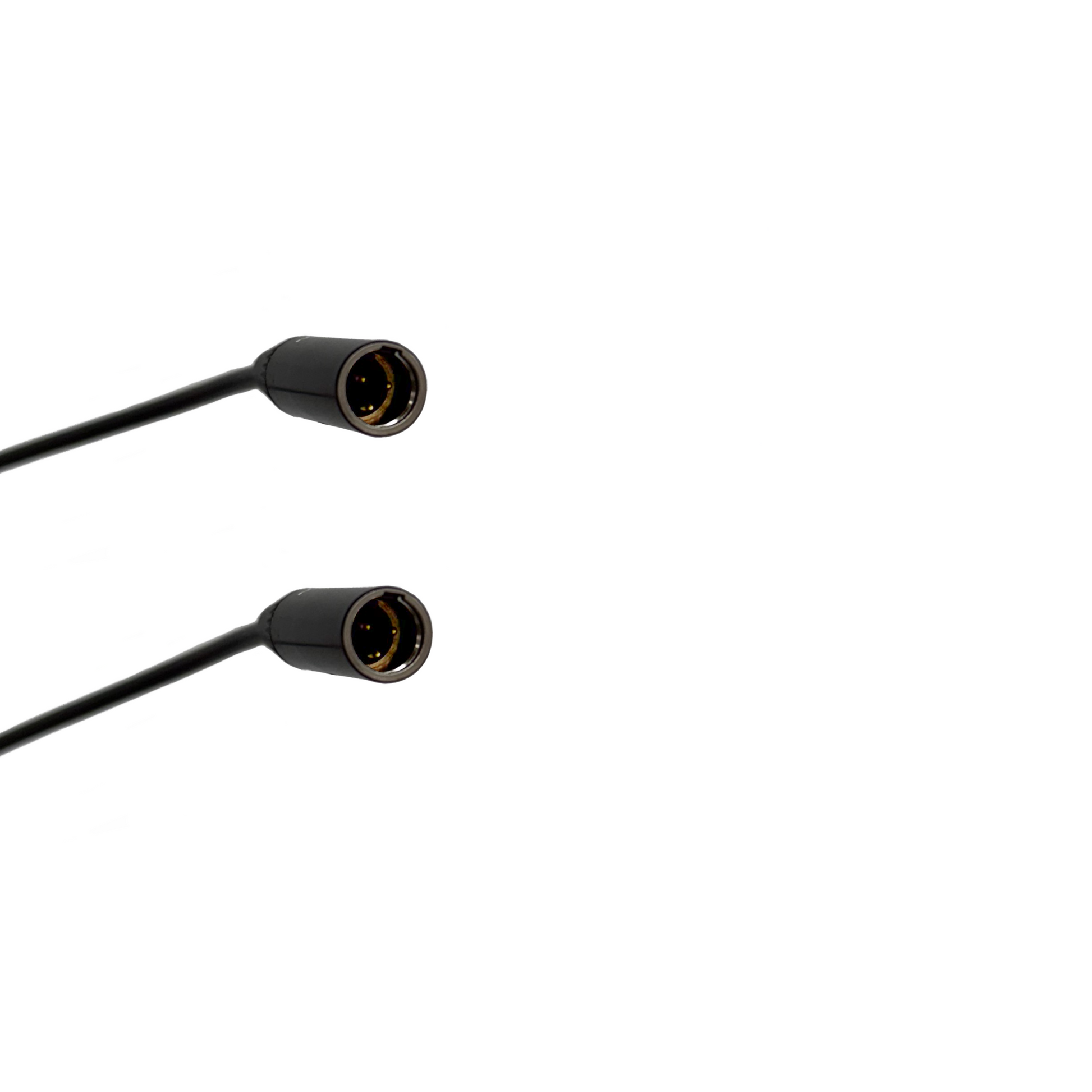

    • Connector 2: Mini XLR Male 3 Pin - RT3MC-B
    • Connector 3: Mini XLR Male 3 Pin - RT3MC-B
    • 22 AWG Shielded Belden 9451

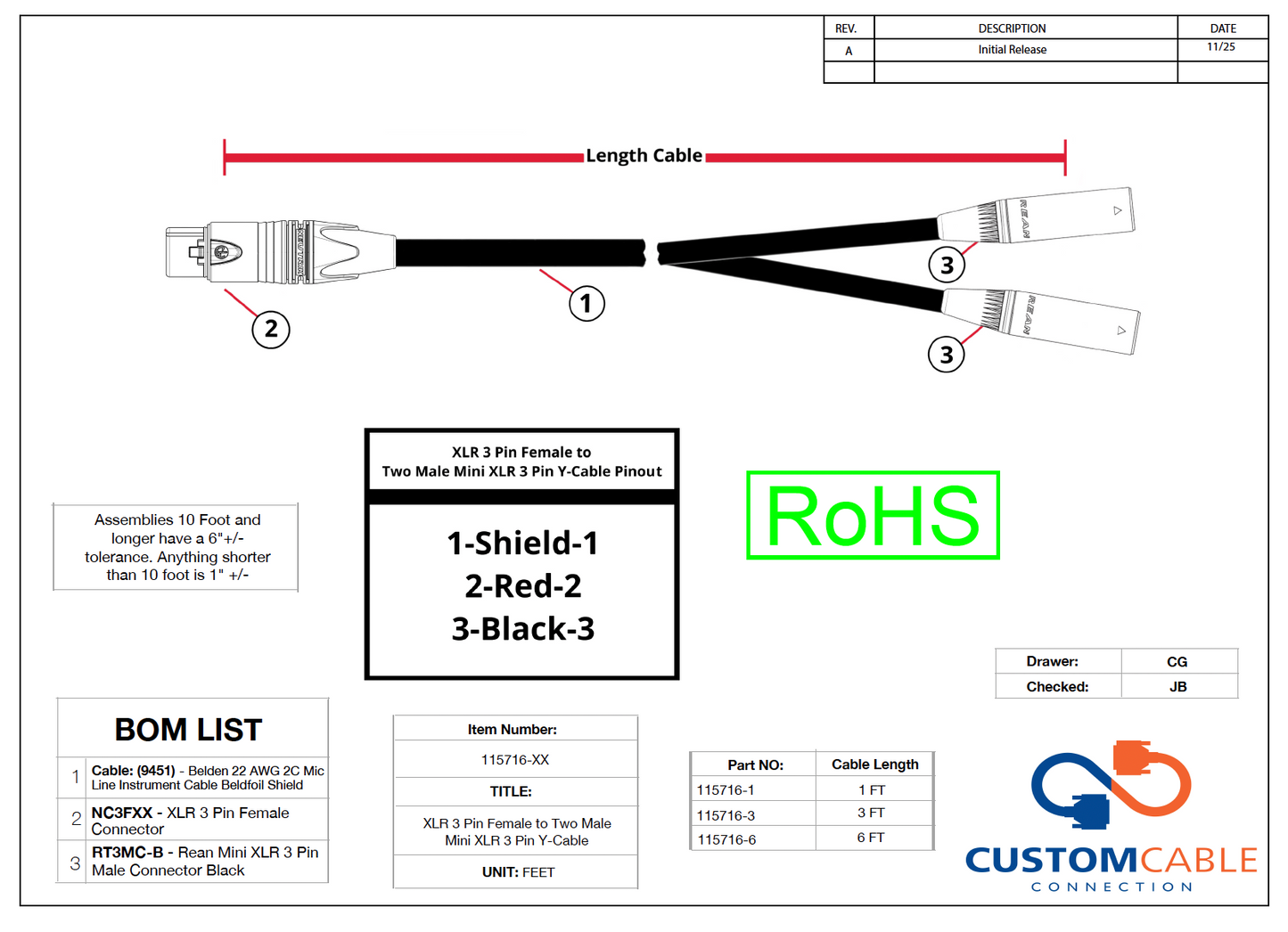

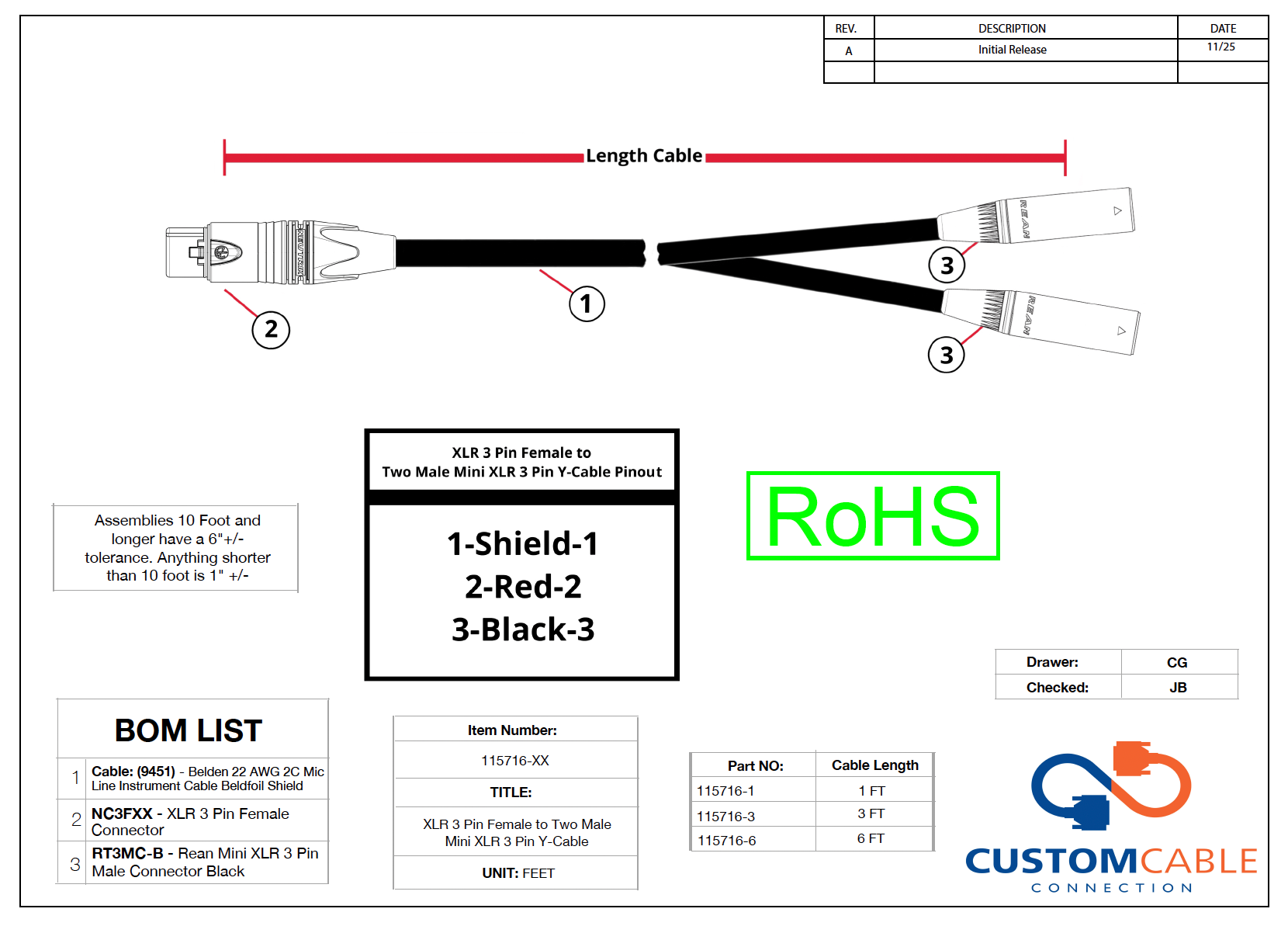

      Straight Through Pinout 1-1, 2-2, 3-3

    Product Specs

    Cable type: 22 AWG

    Connector type: XLR 3 Pin to Mini XLR 3 Pin

    Gender: Female to 2x Male

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
