XLR 3 Pin to Blunt Installation Cable with Neutrik XLR Connectors (Male or Female Options)

Brand: Custom Cable Connection      SKU: 31095-1NEUX

  • Custom Cable Connection microphone cables are a great choice for custom "pro" audio hookups to connect microphones to PA amplifiers, mixers or extension cords. These hookups are balanced, which helps cut out noise and hum pickup. A balanced line consists of three paths of current flow, using a pair of twisted wires with a shield covering them. The twisted pair would carry the actual audio signal while the overall shield acts as a noise absorbing barrier. The shield is connected to ground.

    • The outer jacket is constructed from a durable, ultra-flexible matte black PVC compound. O.D.: .210"
    • 24-gauge bare copper conductors

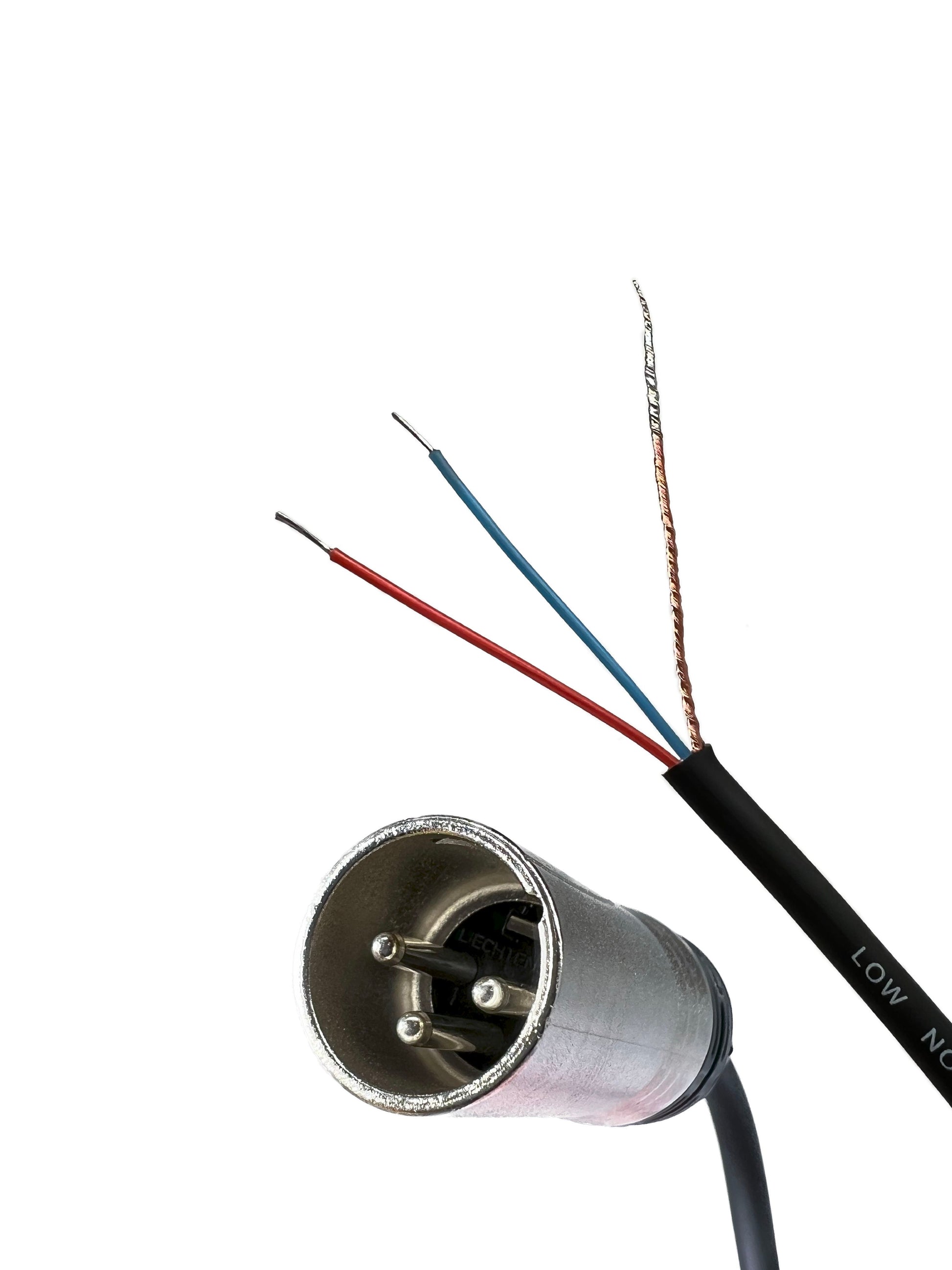

    • Connectors: XLR 3 Pin to 3 Bare Wires
    • Connector Options: Male (31096) or Female (31095)
    • Rugged Nickel Plated XLR Connectors with Strain Relief

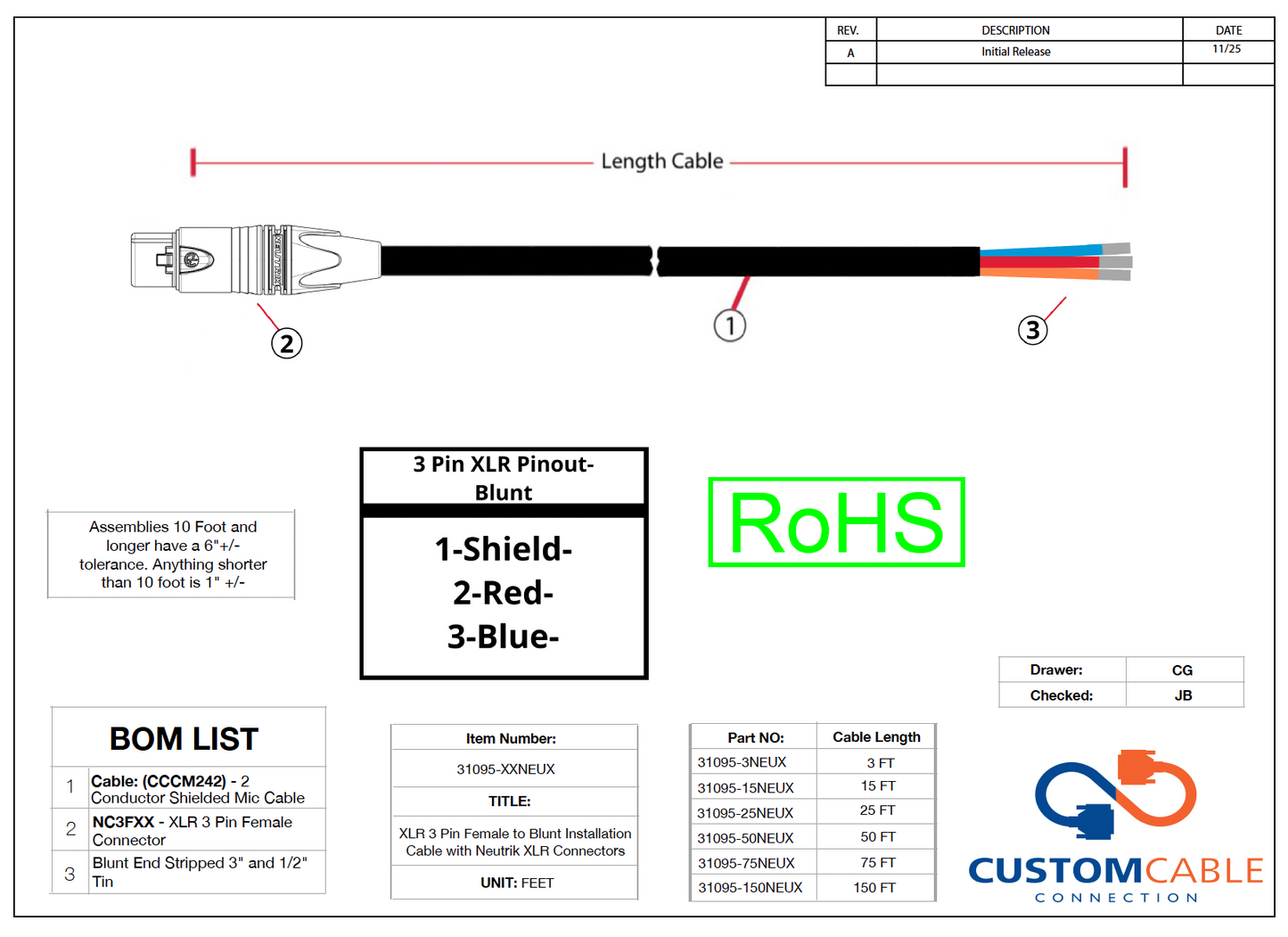

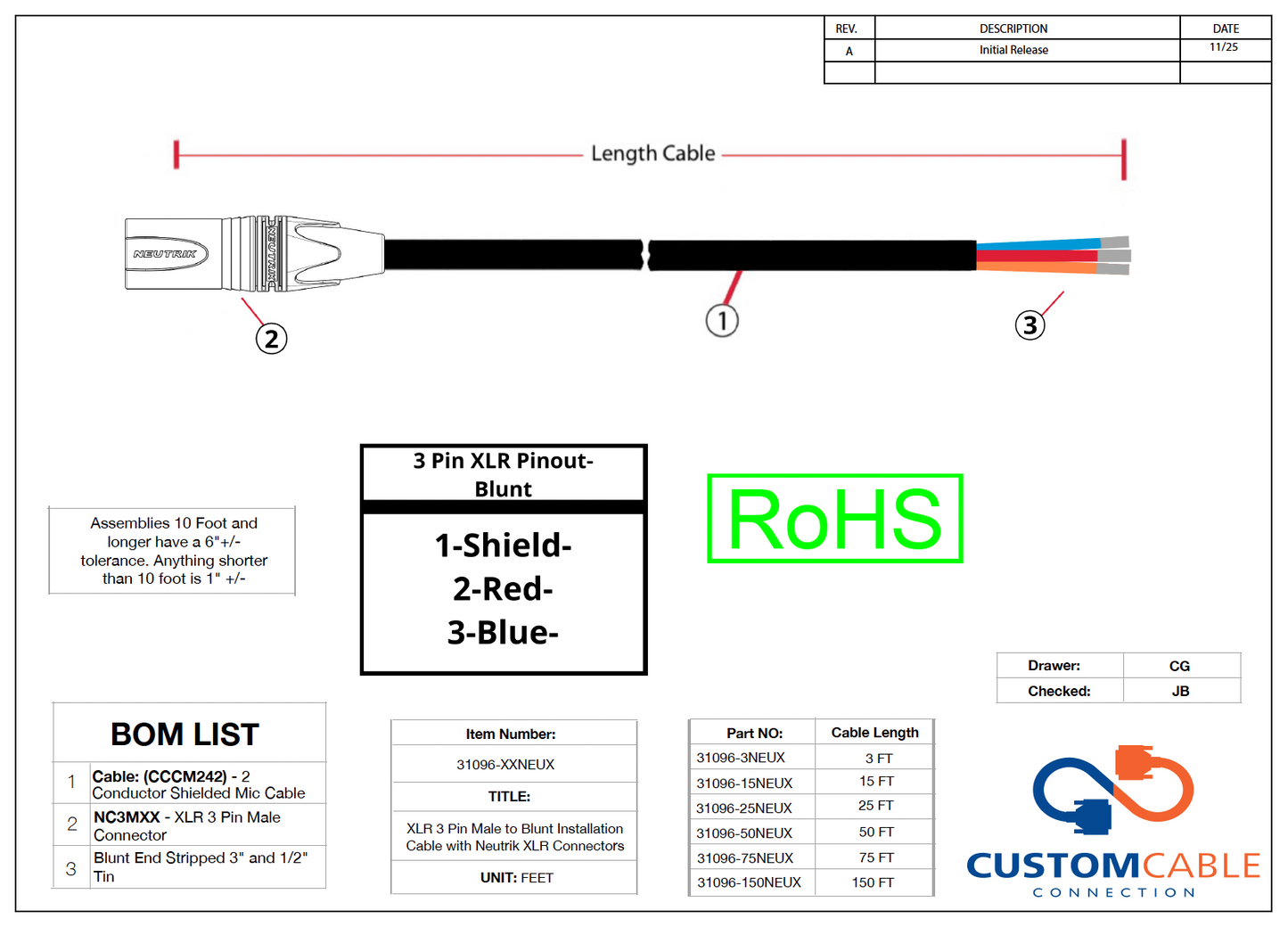

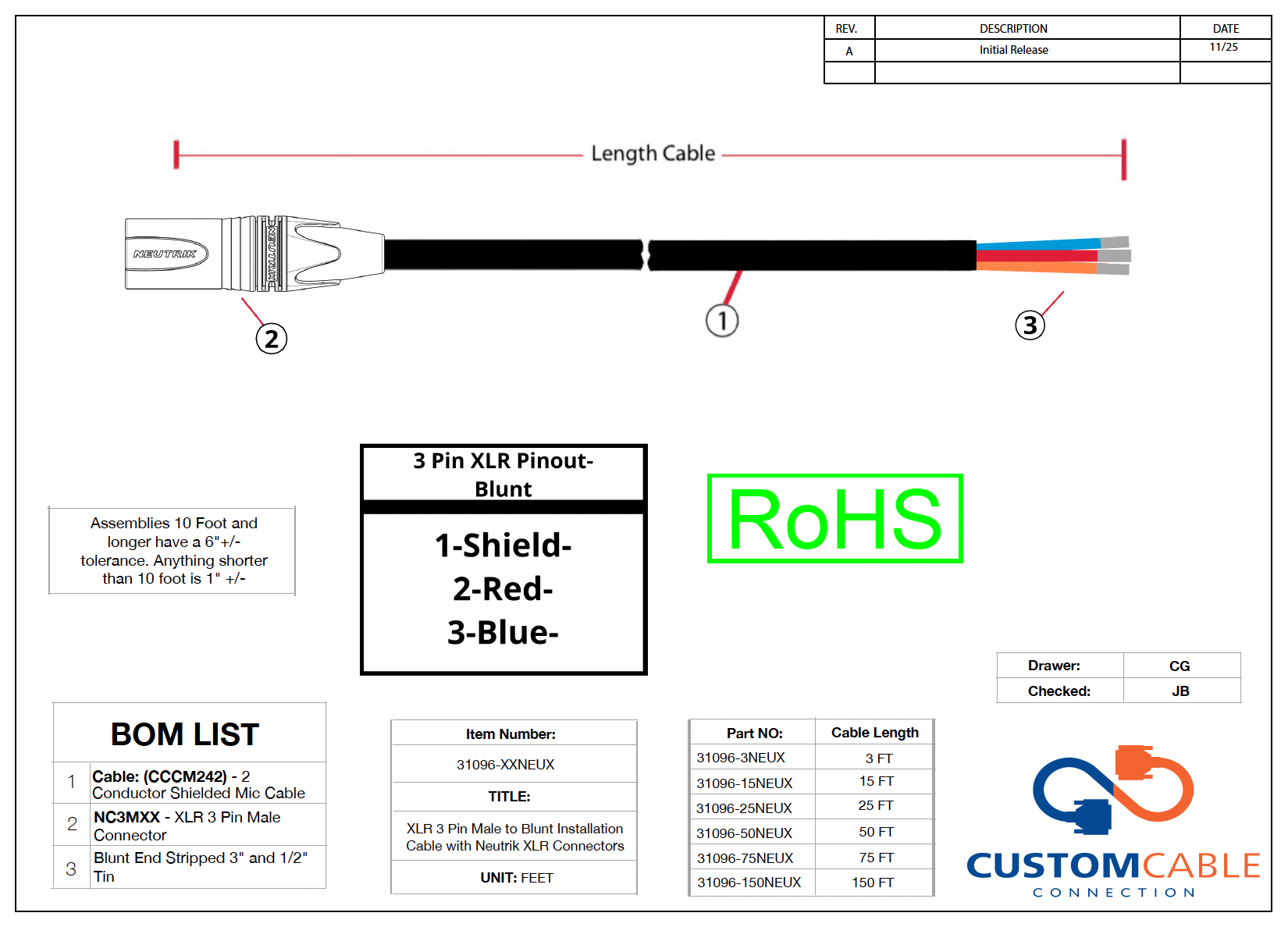

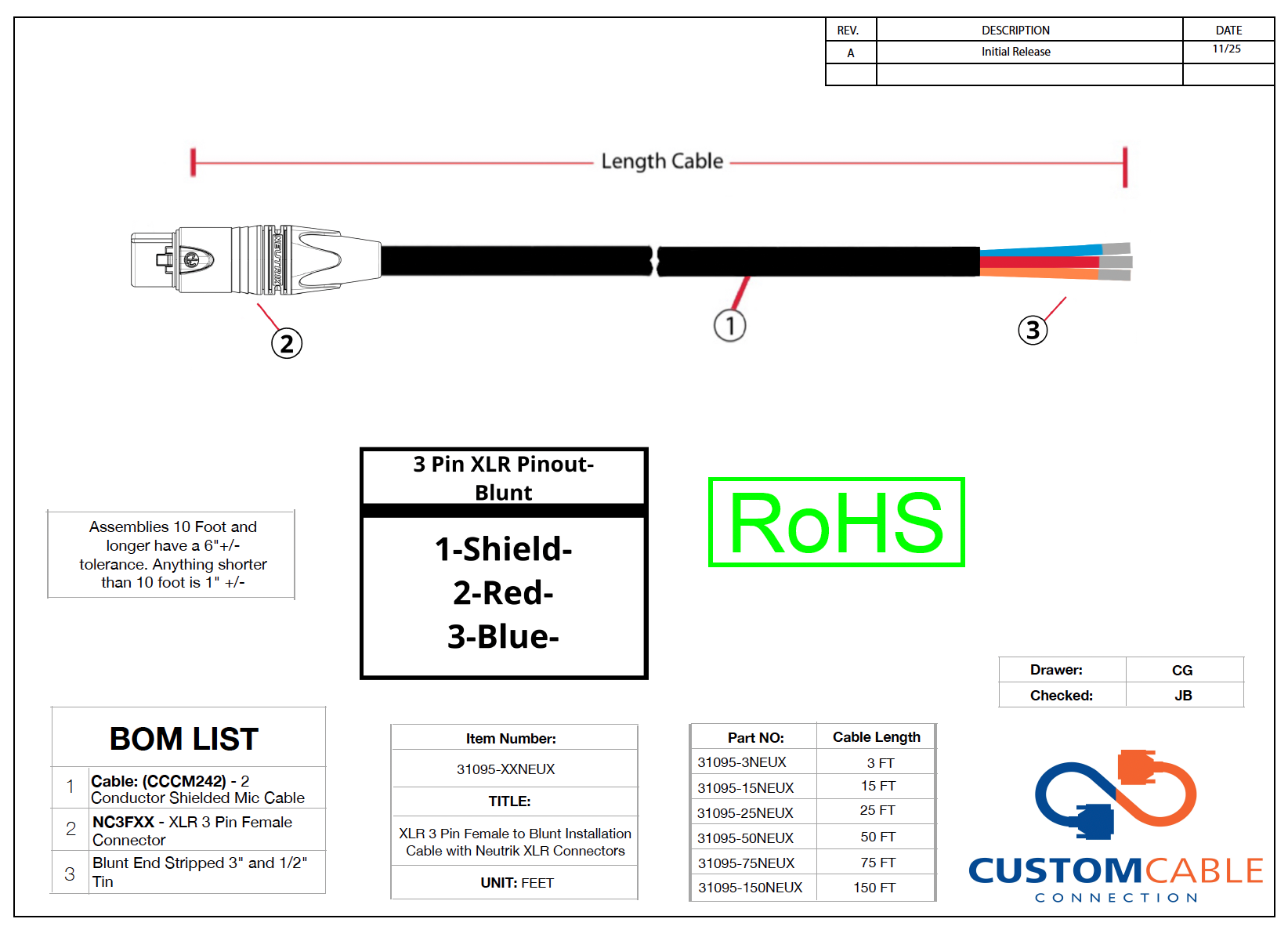

    • Pinout
    • Pin 1- Shield
    • Pin 2- Red
    • Pin 3- Blue

    Product Specs

    Cable type: 24-2 Audio

    Connector type: XLR 3 Pin

    Gender: Female to Blunt

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Length / Gender Weight
      31095-1NEUX 1ft / Female to Blunt 0.3 lb
      31096-1NEUX 1ft / Male to Blunt 0.3 lb
      31096-2NEUX 2ft / Male to Blunt 0.4 lb
      31095-2NEUX 2ft / Female to Blunt 0.4 lb
      31095-3NEUX 3ft / Female to Blunt 0.4 lb
      31096-3NEUX 3ft / Male to Blunt 0.4 lb
      31095-15NEUX 15ft / Female to Blunt 1.0 lb
      31096-15NEUX 15ft / Male to Blunt 1.0 lb
      31095-25NEUX 25ft / Female to Blunt 1.2 lb
      31096-25NEUX 25ft / Male to Blunt 1.2 lb
      31095-50NEUX 50ft / Female to Blunt 4.0 lb
      31096-50NEUX 50ft / Male to Blunt 4.0 lb
      31095-75NEUX 75ft / Female to Blunt 4.2 lb
      31096-75NEUX 75ft / Male to Blunt 4.2 lb
      31095-150NEUX 150ft / Female to Blunt 6.0 lb
      31096-150NEUX 150ft / Male to Blunt 6.0 lb
      31095-200NEUX 200ft / Female to Blunt 7.0 lb
      31096-200NEUX 200ft / Male to Blunt 7.0 lb
