Pro Audio RCA Male to Blunt 24 AWG Cables

Brand: Custom Cable Connection      SKU: 31091-3X

  • RCA Male to Blunt cable. Rack wiring patch cable is a practical solution to reduce contractor costs and rack wiring time. Just plug them in, run the blunt end to the correct length, cut and terminate. This unique system reduces rack wiring time substantially.
    • Flexible 24 AWG Audio Wire

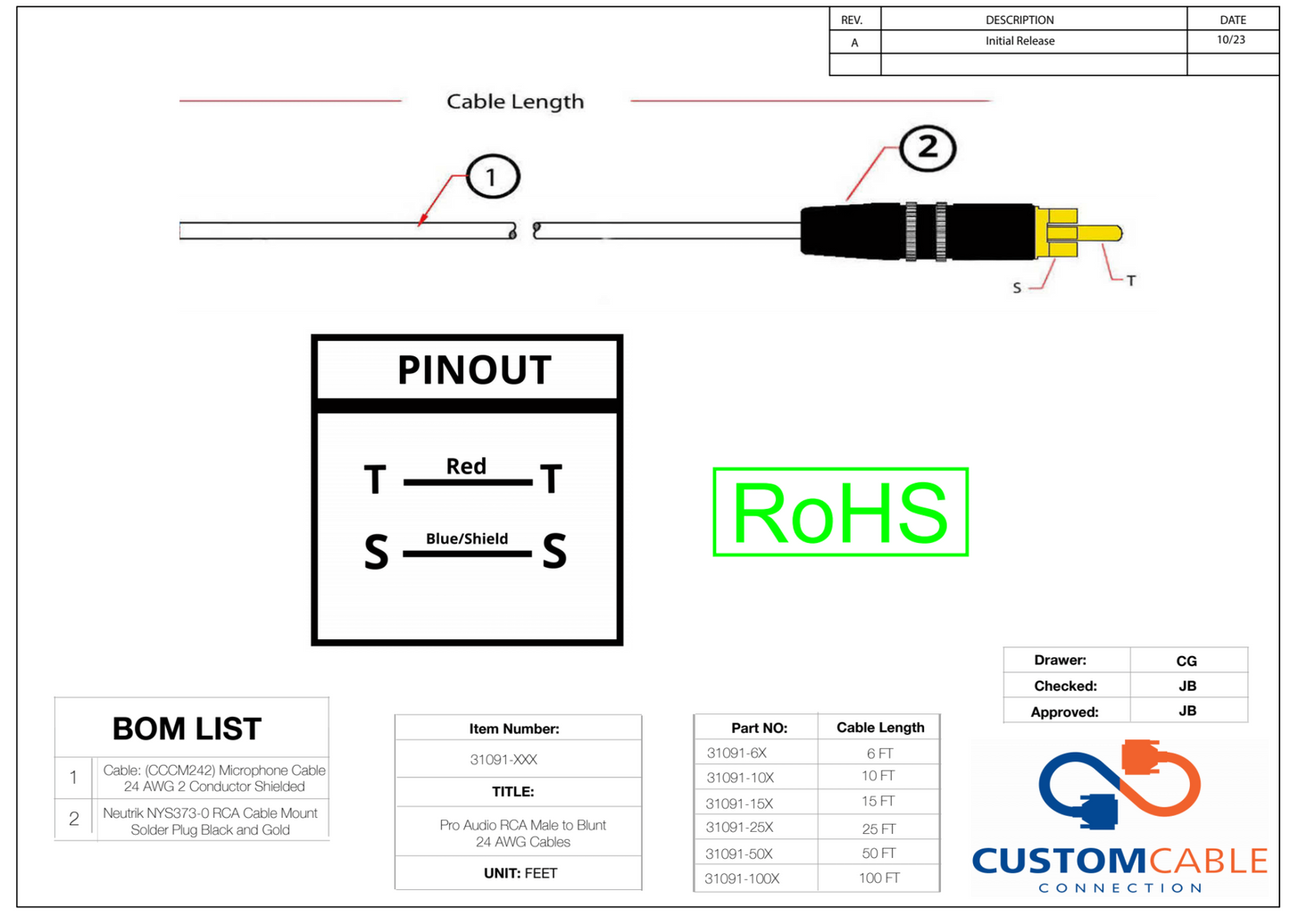

    • Pinout: White to Center Pin, Black and Shield to Ground Pin
    • Uses Our CCCM242 Mic Cable
    • Rean NYS373-0 RCA Connector - black shell, gold plated contacts, rubber boot for best anti-kink protection, chuck type strain relief for cable O.D. 3.5 to 6.1 mm
    • High performance Mono Microphone Cable 24 AWG with 95% spiral shield.
    • PVC Black Jacket
    • Shield: Bare annealed copper
    • Capacitance: 21 pF/ft. @ 1 kHz
    • Characteristic Impedance: 70 Ohm NOMINAL
    • D.C. Resistance @ 20°C: 23 Ohm/1000'
    • Gold Plated RCA Male
    • Assembled in Dallas, TX by Custom Cable Connection

      Don't see the length you are looking for, we will build it for you!
    • For a custom length quote, call: 866.770.3207 or email:

    Product Specs

    Cable type: 24-2 Audio

    Connector type: 1/4 to RCA

    Gender: Male to Blunt

    • For a custom length, call: 866-770-3207 or email:
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Length / Color Weight
      31091-3X 3ft / Black 0.3 lb
      31091-6X 6ft / Black 0.36 lb
      31091-10X 10ft / Black 0.4 lb
      31091-15X 15ft / Black 0.6 lb
      31091-25X 25ft / Black 1.2 lb
      31091-35X 35ft / Black 2.5 lb
      31091-50X 50ft / Black 3.8 lb
      31091-75X 75ft / Black 4.0 lb
      31091-100X 100ft / Black 5.0 lb
      31091-150X 150ft / Black 6.0 lb
      31091-200X 200ft / Black 7.0 lb
