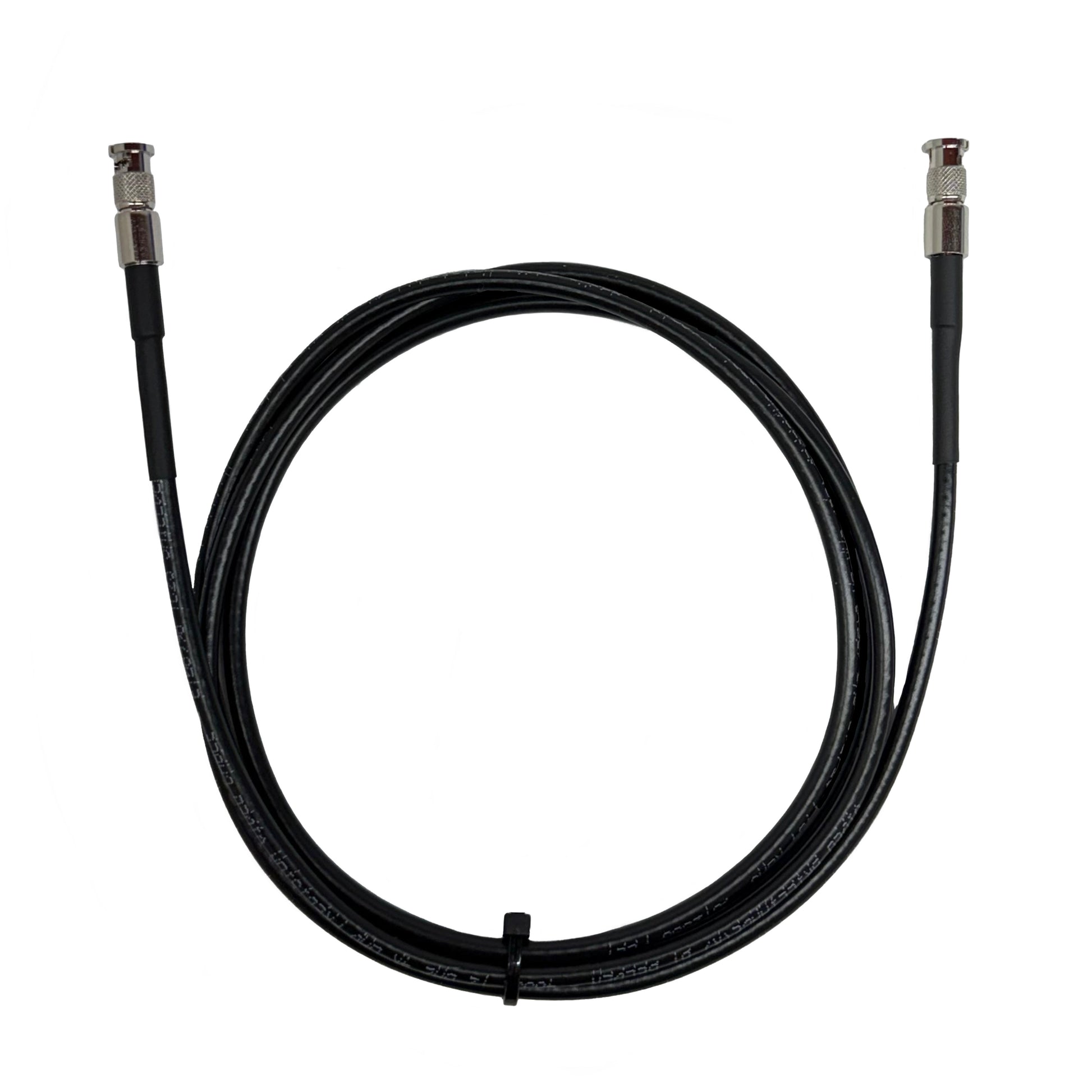

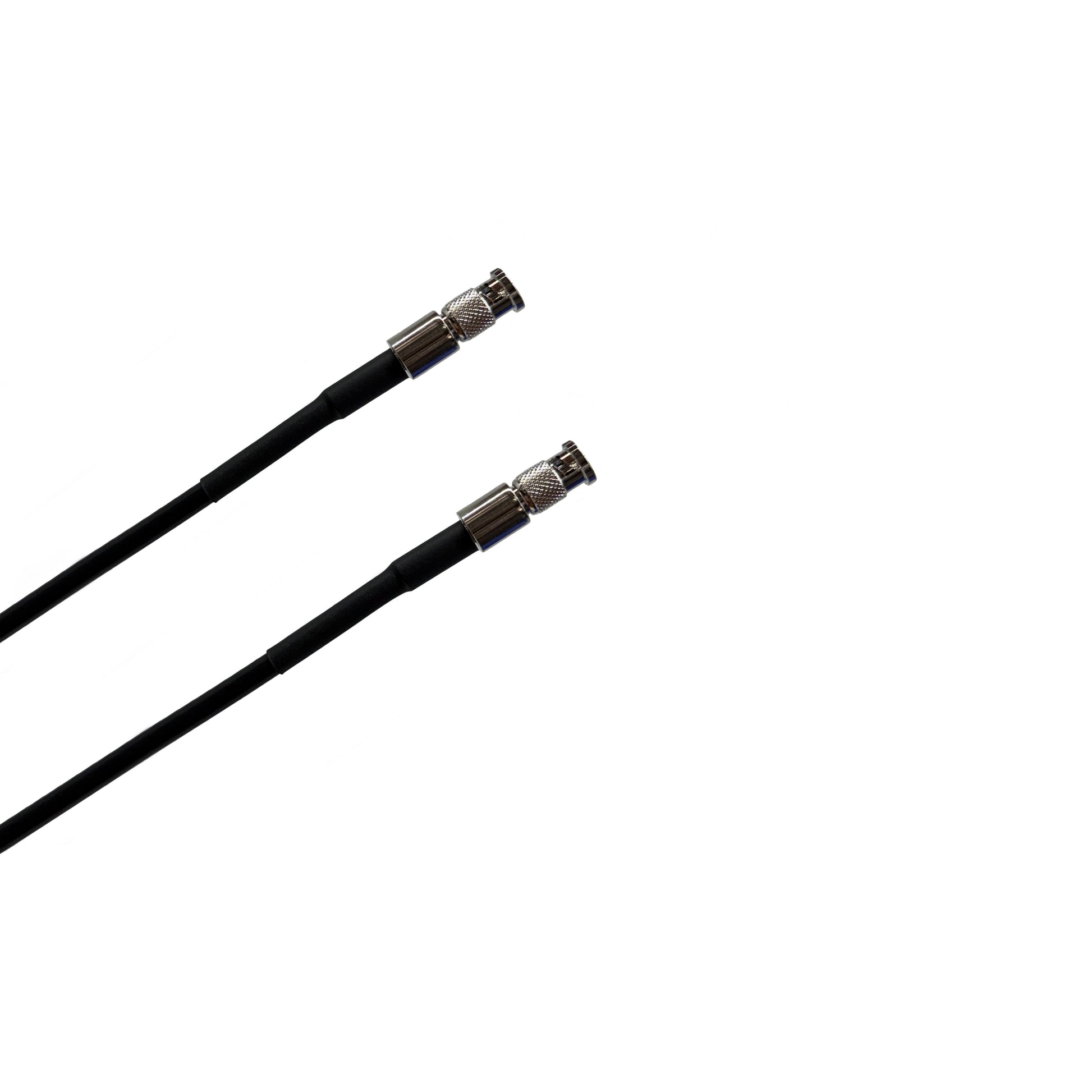

12G Rated High Density Micro BNC HD-SDI Belden 4855R Video Adapter Cables

12G Rated High Density Micro BNC HD-SDI Belden 4855R Video Adapter Cables

$39.00 USD
$39.00 USD
Sale Sold out
Shipping calculated at checkout.
Length
Color

SKU: 103828-12G-6INCH
12G Rated! Connect your RED ONE camera with HD Micro BNC cables (also known as HD BNC).

HD-SDI cables are designed for professional broadcast applications. These cables features Belden 4855R copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 23 AWG solid copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 12 Gbps data transfer.

  • 12G, UHDTV1, UHDTV2
  • Supports SMPTE 259M/292M/424M Standards

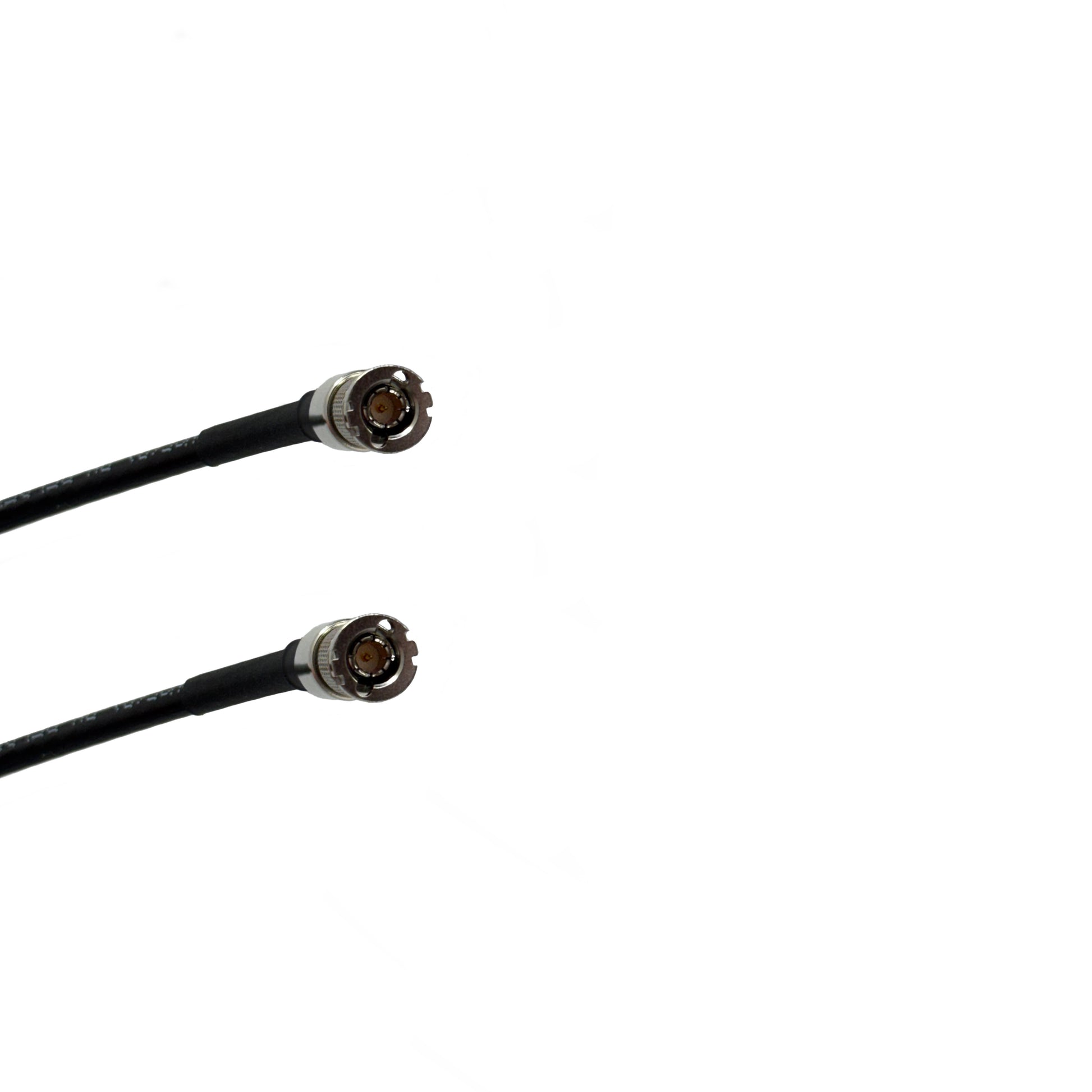

  • Connector A: True 75 Ohm Micro HD BNC
  • Connector B: True 75 Ohm Micro HD BNC
  • Number of Coax: 1
  • RG Type: Mini RG59
  • AWG: 23
  • Stranding: Solid
  • Conductor Material: SC - Silvered Copper
  • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
  • Outer Shield Material Trade Name: Duofoil®

    Used with Blackmagic Design, Blackmagic HyperDeck Shuttle, Red One, Atomos, and many other patch panels, CCTV devices and cameras."
    • View full details

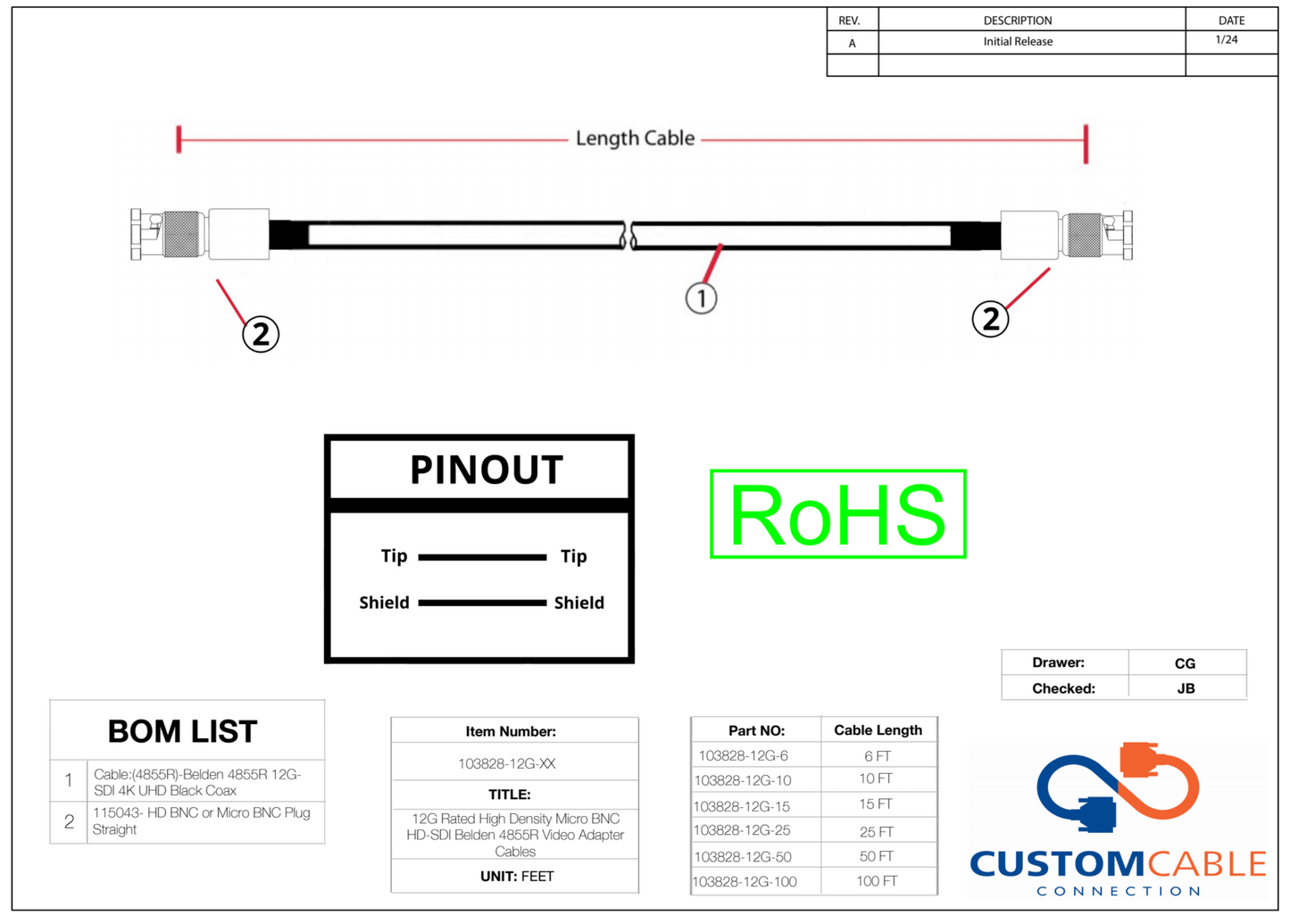

    Product Specs

    Cable Type: 12G Belden 4855R

    Connector Type: HD BNC to HD BNC

    Gender: Male to Male

    Additional Info

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    Sku Barcode Length / Color Weight
    103828-12G-6INCH 810105473018 6 Inch / Black 0.17 lb
    103828-12G-1 810105473025 1ft / Black 0.2 lb
    103828-12G-1.5 810105473032 18" / Black 0.24 lb
    103828-12G-2 810105473049 2ft / Black 0.25 lb
    103828-12G-3 810105473056 3ft / Black 0.3 lb
    103828-12G-5 810105473063 5ft / Black 0.31 lb
    103828-12G-6 810105473070 6ft / Black 0.5 lb
    103828-12G-100 100ft / Black 3.0 lb
    103828-12G-10 810105473087 10ft / Black 0.67 lb
    103828-12G-15 810105473094 15ft / Black 0.8 lb
    103828-12G-25 810105473100 25ft / Black 1.0 lb
    103828-12G-35 810105473117 35ft / Black 1.2 lb
