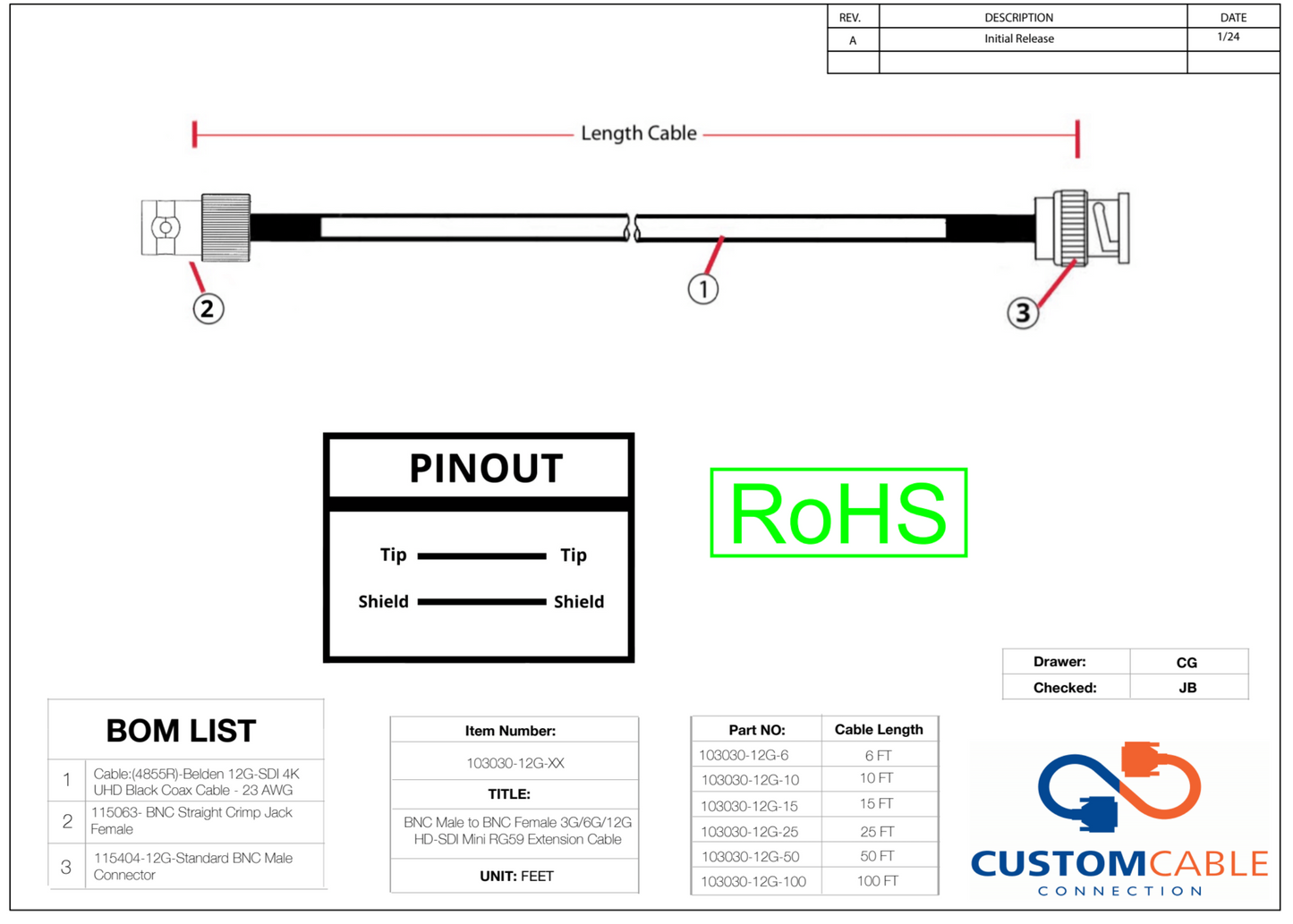

BNC Male to BNC Female 3G/6G/12G HD-SDI Mini RG59 Extension Cable - 75 Ohm - 23 AWG Coax

Brand: Custom Cable Connection      SKU: 103030-12G-6INCH

Length
Color
Black
  • Standard BNC Male to BNC Female cables are designed for professional broadcast applications. Extend your Standard BNC with this adapter cable. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 23 AWG solid copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 3 Gbps data transfer.
    • HD-BNC— Delivers true 75 Ohm performance in a footprint 51% smaller than traditional BNC connectors allowing four times the density,

    • Supports SMPTE 259M/292M/424M Standards
    • Connector A: True 75 Ohm Standard BNC Female
    • Connector B: True 75 Ohm BNC Male
    • Number of Coax: 1
    • RG Type: Mini RG59
    • AWG: 23
    • Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
    • Outer Shield Material Trade Name: Duofoil®

      Used with Blackmagic Design, Blackmagic HyperDeck Shuttle, Red One, Atomos, and many other patch panels, CCTV devices and cameras.

    Product Specs

    Cable type: 12G Belden 4855R

    Connector type: BNC to BNC

    Gender: Male to Female

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Barcode Length / Color Weight
      103030-12G-6INCH 810105472325 6 Inch / Black 0.2 lb
      103030-12G-1 810105472332 1ft / Black 0.3 lb
      103030-12G-2 810105472349 2ft / Black 0.3 lb
      103030-12G-3 810105472356 3ft / Black 0.3 lb
      103030-12G-5 810105472363 5ft / Black 0.5 lb
      103030-12G-6 810105472370 6ft / Black 0.25 lb
      103030-12G-10 810105472387 10ft / Black 1.0 lb
      103030-12G-15 810105472394 15ft / Black 1.5 lb
      103030-12G-25 810105472400 25ft / Black 2.5 lb
      103030-12G-35 810105472417 35ft / Black 3.5 lb
      103030-12G-40 810105472424 40ft / Black 4.0 lb
      103030-12G-50 810105472431 50ft / Black 4.2 lb
