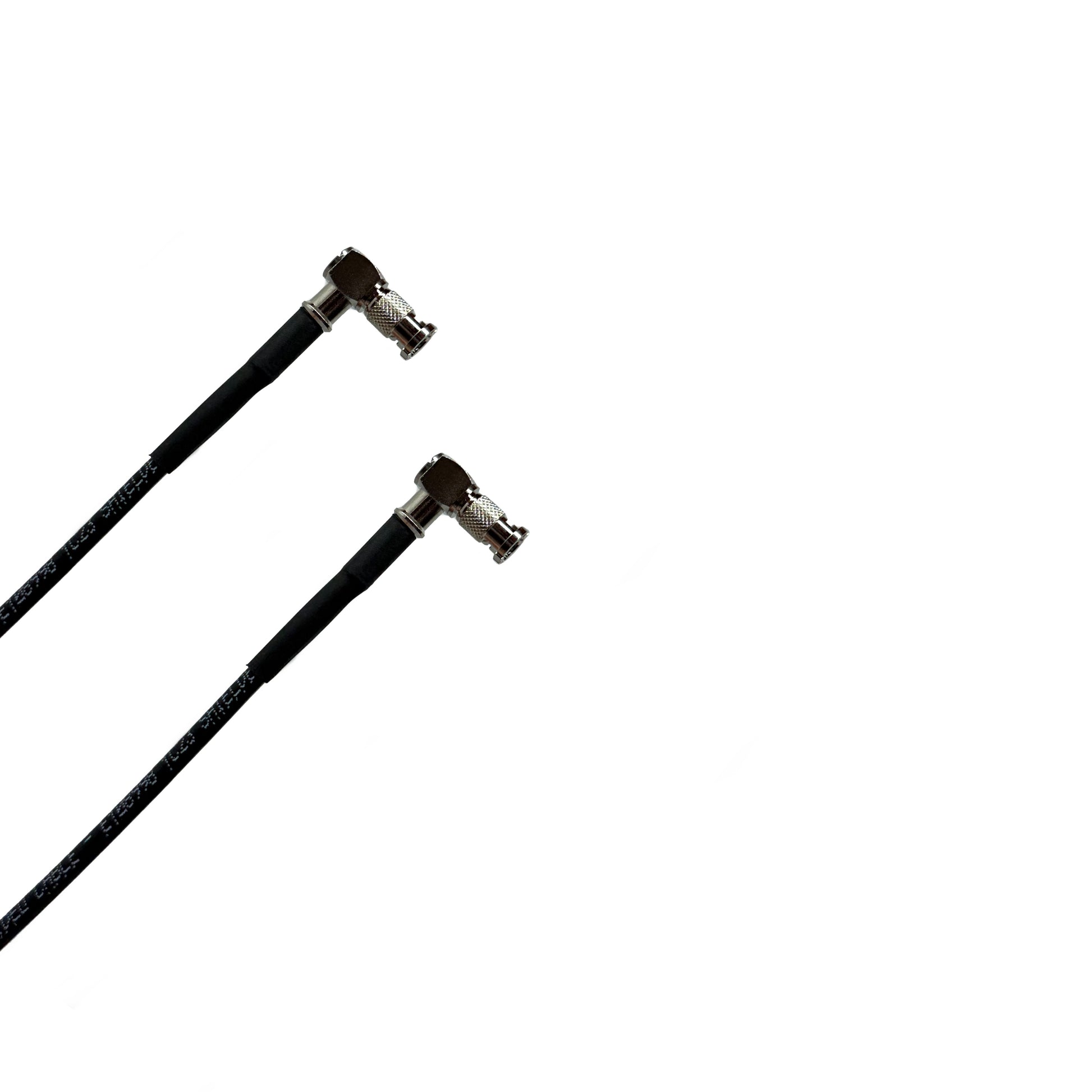

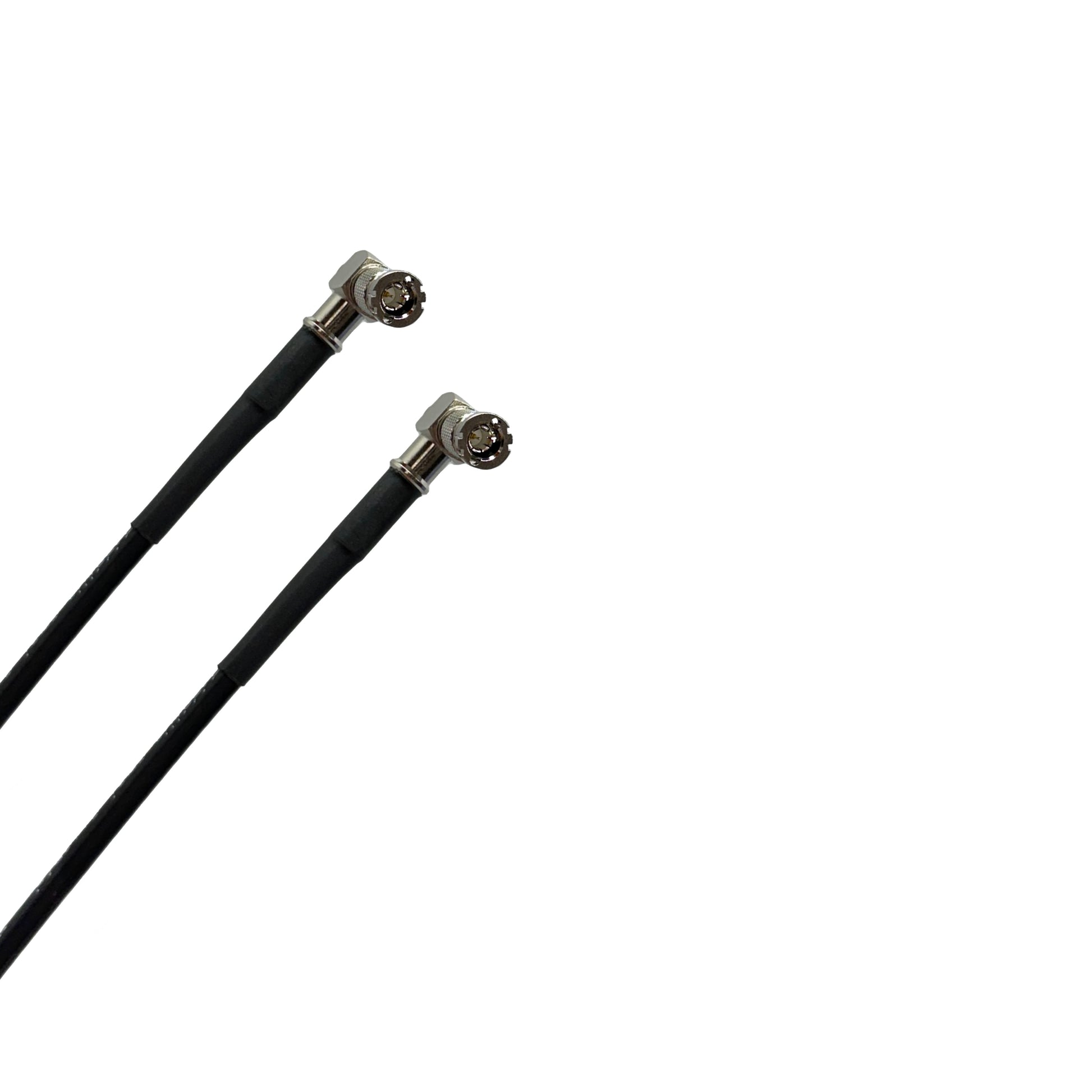

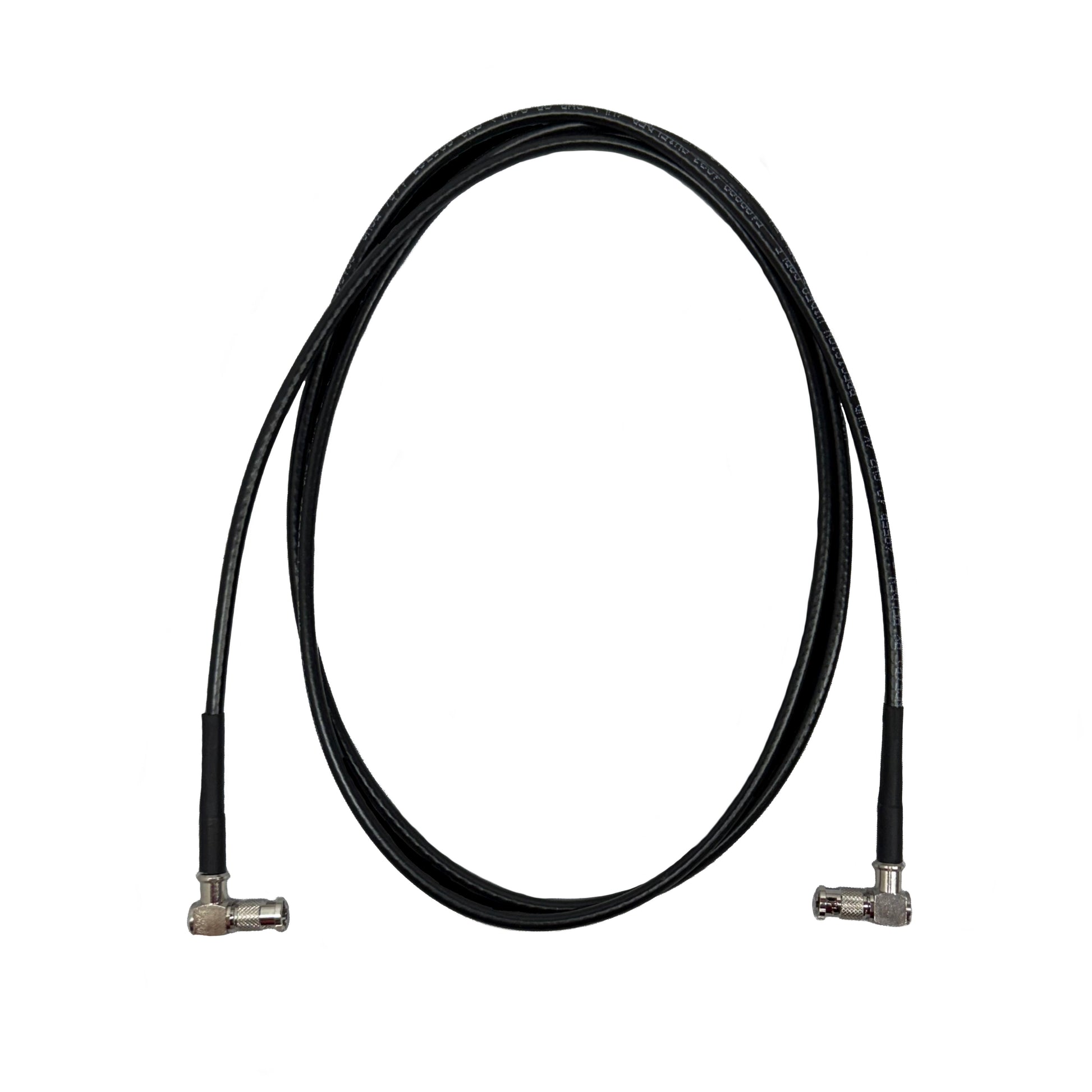

HDBNC (Micro BNC) Right Angle 4855R 12G Cables

Brand: Custom Cable Connection      SKU: 115462-RA-12G-6INCH

  • 12G Rated Belden 4855R HD-SDI cables are designed for professional broadcast applications. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 23AWG solid copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 12 Gbps data transfer.

    • Supports SMPTE 259M/292M/424M Standards
    • Connector A: True 75 Ohm High Density Micro BNC Male Right Angle
    • Connector B: True 75 Ohm High Density Micro BNC Male Right Angle
    • Number of Coax: 1
    • RG Type: Mini RG59
    • AWG: 23
    • Stranding: Solid
    • Conductor Material: SC -Silvered Copper Conductor
    • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
    • Outer Shield Material : Foil + 95% Tinned Copper Braid Shield
    • Cable Outer Diameter: 0.159 in

      Used with Blackmagic Design, Blackmagic HyperDeck Shuttle, Red One, Atomos, and many other patch panels, CCTV devices and cameras.

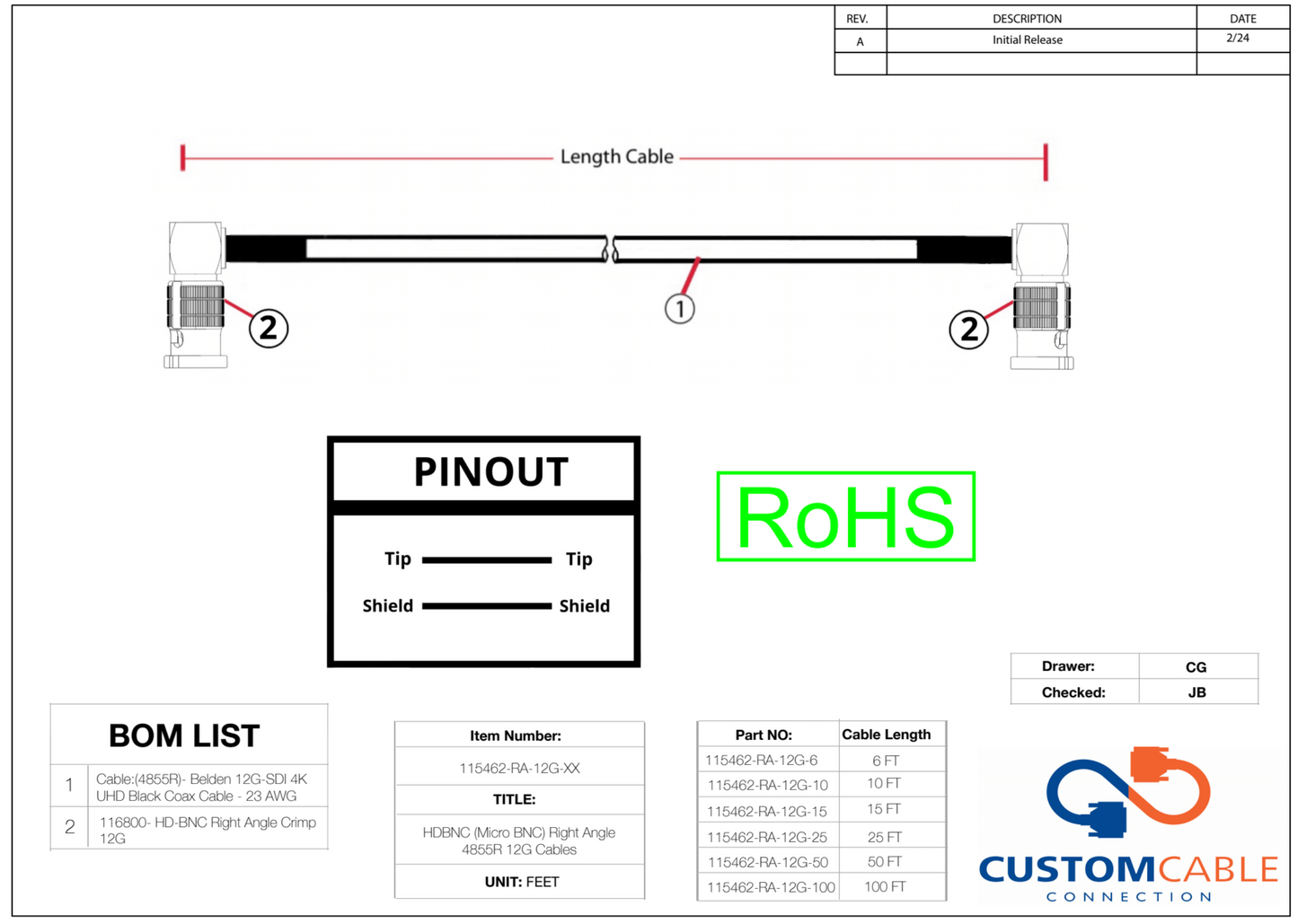

    Product Specs

    Cable type: 12G Belden 4855R

    Connector type: HDBNC RA to HDBNC RA

    Gender: Male to Male

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Length / Color Weight
      115462-RA-12G-6INCH 6 Inch / Black 0.23 lb
      115462-RA-12G-1 1ft / Black 0.25 lb
      115462-RA-12G-2 2ft / Black 0.3 lb
      115462-RA-12G-1.5 18 Inch / Black 0.3 lb
      115462-RA-12G-3 3ft / Black 0.31 lb
      115462-RA-12G-6 6ft / Black 0.35 lb
      115462-RA-12G-10 10ft / Black 0.6 lb
