HDBNC (Micro BNC) to Din 1.0/2.3 Mini RG59 3G/6G Video Coaxial Cable

HDBNC (Micro BNC) to Din 1.0/2.3 Mini RG59 3G/6G Video Coaxial Cable

HDBNC (Micro BNC) to Din 1.0/2.3 Mini RG59 3G/6G Video Coaxial Cable

HDBNC (Micro BNC) to Din 1.0/2.3 Mini RG59 3G/6G Video Coaxial Cable

Featured

HDBNC (Micro BNC) to Din 1.0/2.3 Mini RG59 3G/6G Video Coaxial Cable

Brand: Custom Cable Connection SKU: 114356-1

$32.40

Category: Audio Video Cables, Cable, Din 1.0/2.3, HD BNC to Din, HD-SDI, Micro BNC, Mini RG59

Description
Additional Info
Reviews

Mini RG59 HD-SDI cables are designed for professional broadcast applications. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 23AWG solid copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 6 Gbps data transfer.
- Belden 1855A Cable is made in the USA
- Supports SMPTE 259M/292M/424M Standards
- Connector A: True 75 Ohm High Density Micro BNC Male
- Connector B: True 75 Ohm Din 1.0/2.3 Male
- Number of Coax: 1
- RG Type: Mini RG59
- AWG: 23
- Stranding: Solid
- Conductor Material: BC - Bare Copper
- Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
- Outer Shield Material Trade Name: Duofoil®

  Used with Blackmagic Design, Blackmagic HyperDeck Shuttle, Red One, Atomos, and many other patch panels, CCTV devices and cameras.

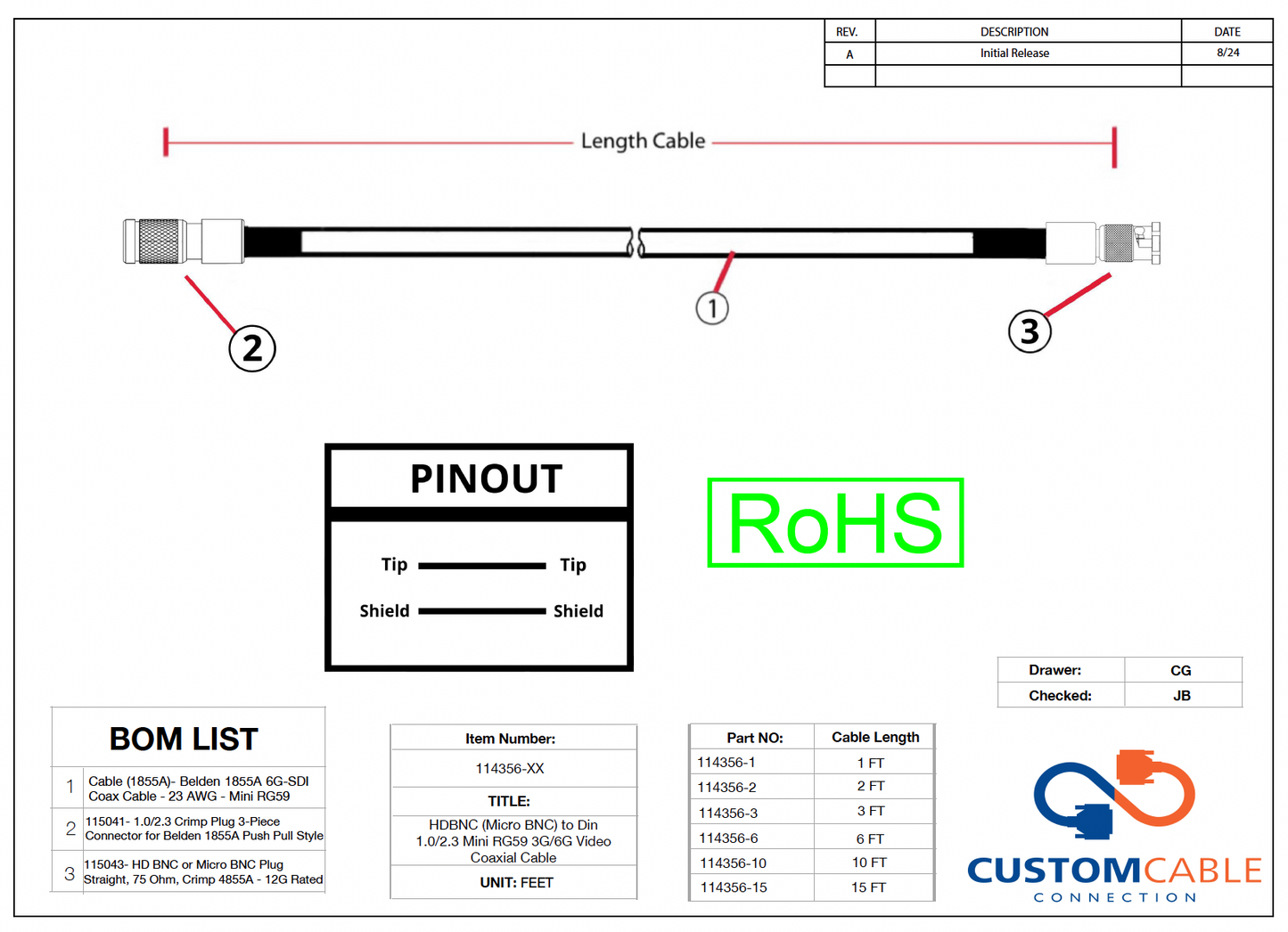

Product Specs

Cable type: Mini RG59

Connector type: HDBNC to Din 1.0/2.3

Gender: Male to Male

For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
Net 30 Terms Available
School and Universities automatically approved for Net 30 with PO
Quantity discounts and RFQ's available
Same day shipping (1PM Cutoff)

Sku	Barcode	Length / Color	Weight
114356-1	810105478556	1ft / Black	0.17 lb
114356-2	810105478549	2ft / Black	0.2 lb
114356-3	810105478532	3ft / Black	0.24 lb
114356-6	810105478525	6ft / Black	0.3 lb
114356-10	810105478365	10ft / Black	0.5 lb
114356-15	810105478372	15ft / Black	0.65 lb
