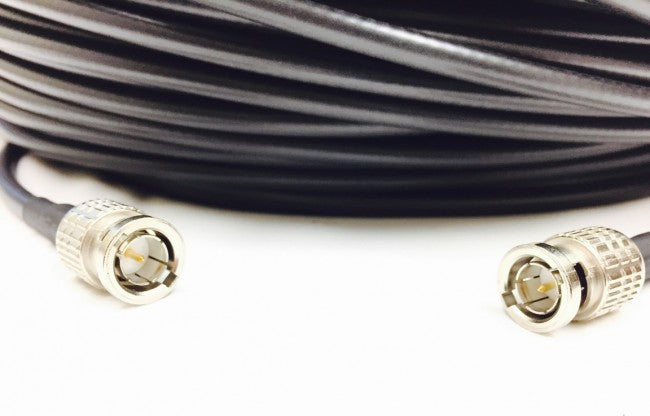

HD-SDI BNC to BNC 3G/6G Belden 1505A Cable with Canare BCP-B4F Connectors

Brand: Custom Cable Connection      SKU: 112152-6INCAN

  • Our 112152CAN sereis of HD SDI cables are made of Belden 1505A 75 ohm RG59 20 AWG Digital Video Coaxial Cable with Canare BCP-C4F BNC connectors. The cable is well suited for use with SD/HD-SDI applications, satellite head-ends, or any other work in broadband, digital, and HDTV facilities. The cable is rated at 75 Ohm impedance and features a solid annealed copper center conductor. It also includes a tinned copper-braided shield, aluminum foil, and foam polyethylene dielectric. An additional benefit with this cable is extremely low signal loss.

    • Canare BCP-C4F BNC connectors
    • Construction: The cable is constructed from a solid annealed copper center conductor, as well as a tinned copper-braided shield, aluminum foil, and foam polyethylene dielectric.

    Product Specs

    Cable type: Belden 1505A

    Connector type: BNC to BNC

    Gender: Male to Male

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Length / Color Weight
      112152-6INCAN 6 Inch / Black 0.25 lb
      112152-1CAN 1ft / Black 0.25 lb
      112152-2CAN 2ft / Black 0.25 lb
      112152-1.5CAN 18 Inch / Black 0.25 lb
      112152-3CAN 3ft / Black 0.3 lb
      112152-6CAN 6ft / Black 1.5 lb
      112152-10CAN 10ft / Black 1.5 lb
      112152-15CAN 15ft / Black 1.5 lb
      112152-25CAN 25ft / Black 2.0 lb
      112152-50CAN 50ft / Black 3.0 lb
      112152-75CAN 75ft / Black 5.0 lb
      112152-100CAN 100ft / Black 5.0 lb
      112152-150CAN 150ft / Black 7.0 lb
      112152-250CAN 250ft / Black 7.0 lb
