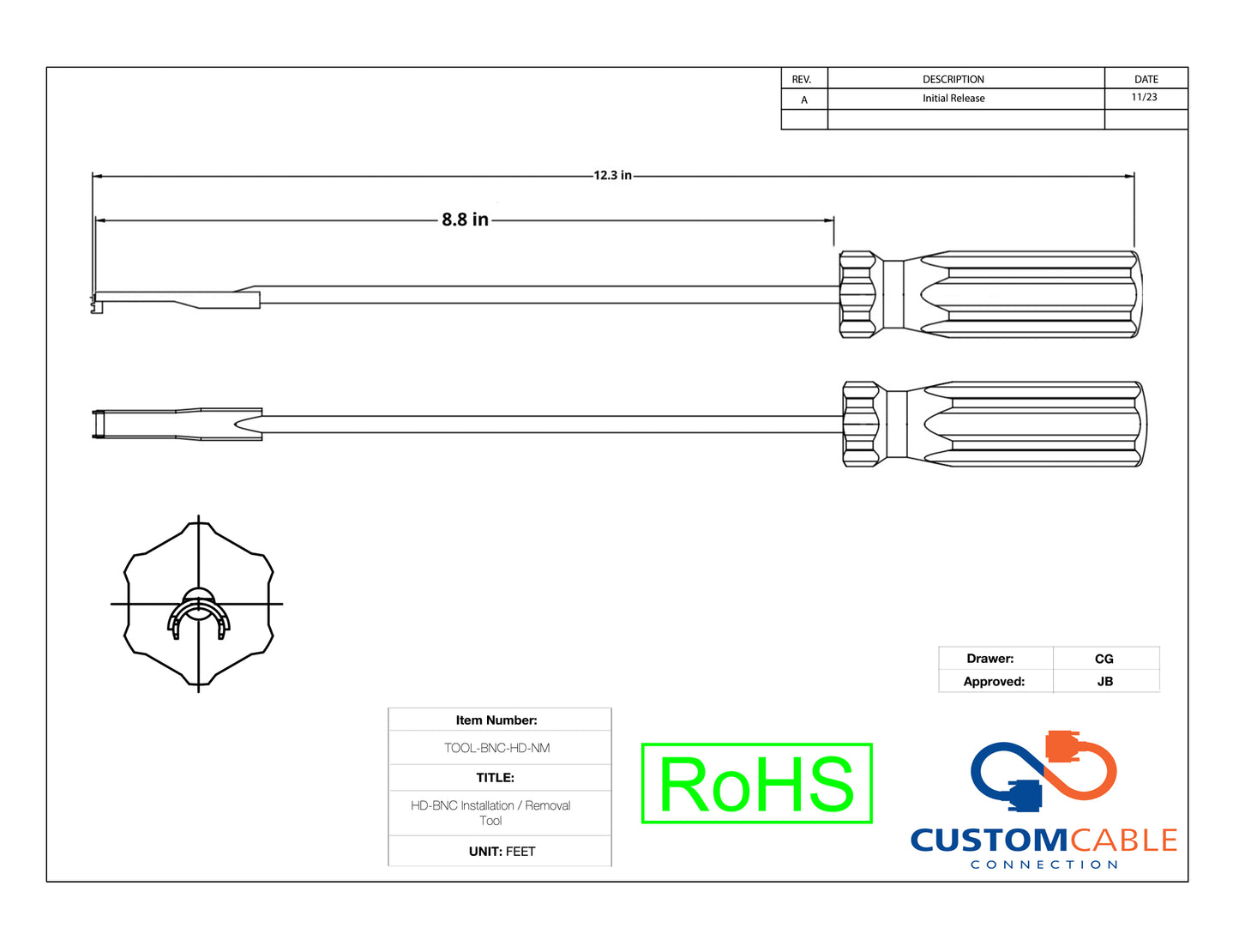

HD BNC Series Installation and Removal Tool

Brand: Custom Cable Connection      SKU: TOOL-BNC-HD-NM

  • Custom Cable Connection installation and removal tool designed for use with the 115043 HD BNC Series connectors.The HD BNC Series Connectors are miniaturized BNC connectors similar in size to DIN 1.0 / 2.3 connectors and feature a quick-connect/quick-disconnect interface. HD BNC Series Connectors exceed SMPTE 424M-2006 (3G-SDI), optimized to achieve superior electrical performance for 6G-SDI and 12G-SDI single 4K coax channels.
    • Specifically made to work with our 115043 HD BNC Connector
    • Does not work with Amphenol or Canare

    Product Specs

    Cable type: RG58, RG59, RG6

    Connector type: BNC, TNC

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Size / Color Weight
      TOOL-BNC-HD-NM HD BNC / Blue 0.3 lb
