12G Rated Din to Din 1.0/2.3 Male to Male HD-SDI Belden 4855R Video Coaxial Cable

Brand: Custom Cable Connection      SKU: 103822-12G-6INCH

$33.00

Length
Color
Black

Category: 12G, 75 Ohm, Audio Video Cables, Cable, Coax, Din 1.0/2.3, Din to Din, HD-SDI, Mini RG59, Video

  • 12G Rated Mini RG59 HD-SDI cables are designed for professional broadcast applications. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 23AWG solid copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 12 Gbps data transfer.

    • Cable is made in the USA
    • Supports SMPTE 259M/292M/424M Standards
    • Connector A: True 75 Ohm Din 1.0/2.3 Male
    • Connector B: True 75 Ohm Din 1.0/2.3 Male
    • Number of Coax: 1
    • RG Type: Mini RG59
    • AWG: 23
    • Stranding: Solid
    • Conductor Material: SC - Silvered Copper
    • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
    • Outer Shield Material Trade Name: Duofoil®

      Used with Blackmagic Design, Blackmagic HyperDeck Shuttle, Red One, Atomos, and many other patch panels, CCTV devices and cameras.

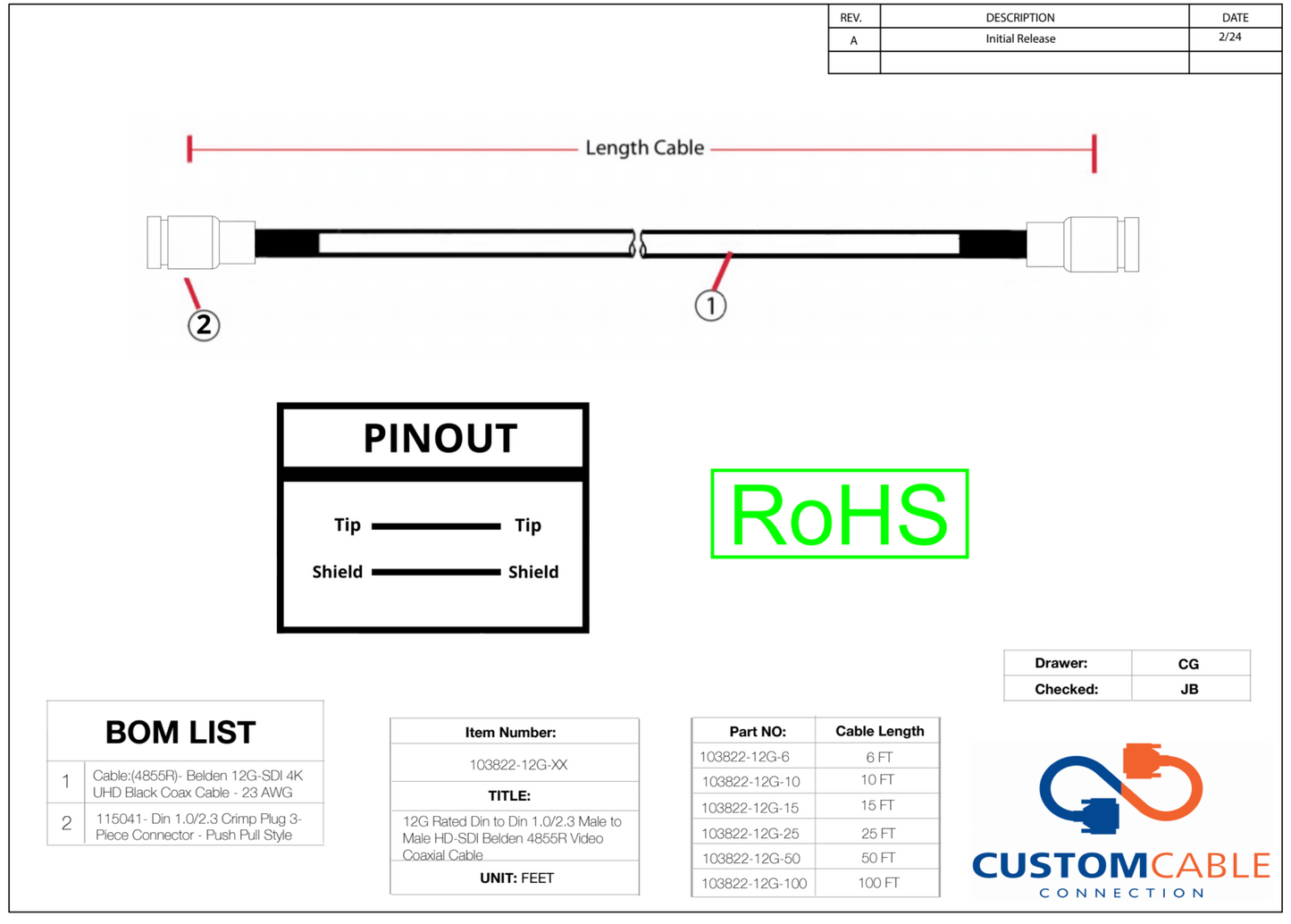

    Product Specs

    Cable type: 12G Belden 4855R

    Connector type: Din 1.0/2.3

    Gender: Male to Male

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
      • Sku Barcode Length / Color Weight
      103822-12G-6INCH 810105472950 6 Inch / Black 0.2 lb
      103822-12G-1 810105472967 1ft / Black 0.25 lb
      103822-12G-2 810105472974 2ft / Black 0.3 lb
      103822-12G-3 810105472981 3ft / Black 0.3 lb
      103822-12G-5 810105472998 5ft / Black 0.34 lb
      103822-12G-6 810105473001 6ft / Black 0.5 lb
      103822-12G-10 810105473827 10ft / Black 1.0 lb
      103822-12G-15 810105473834 15ft / Black 1.25 lb
      103822-12G-25 810105473841 25ft / Black 2.0 lb
      103822-12G-35 810105473872 35ft / Black 2.3 lb
      103822-12G-50 810105473889 50ft / Black 3.0 lb
      103822-12G-75 810105473896 75ft / Black 3.8 lb
