Description:

Bare copper conductors, PVC/NYLON insulation, Cabled together, Water block tape, Aluminum polyester foil with drain wire, Black PVC jacket. Sequential footage marking.

Made in the USA

Applications:

Security Systems

Intercom Systems

Sound/Audio Systems

Power-Limited Controls

Cable Specs:

AWG: 16

Conductors: 2

Shielded: Aluminum polyester foil with drain wire

Nominal OD: 0.29 Inch or 7.37mm

Stranding: 7 Strands of Bare Copper

Insulation: 15 mils PVC .05” NYLON

Jacket PVC

NEC Articles: 336 - TC, 725 - PLTC, 760 - FPL/NPLF

UL Listed and ROHS

Voltage Rating 600 V

Temp. Rating: -39ºC to 90ºC Wet/Dry

Direct Burial Jacket
Custom Cable’s proven solution for your water block- ing needs. REPEL™ cables are first constructed using a premium grade jacket com- pound which is flame retardant, sunlight resistant and water resistant and has been developed to be durable in outdoor and direct burial applications. In addition to the jacket, REPEL™ cables utilize a superior water-blocking tape, rather than the messy gel, which swells to absorb any moisture that is present. The special formulated tape stops water in its tracks by blocking migration of moisture throughout the cable.

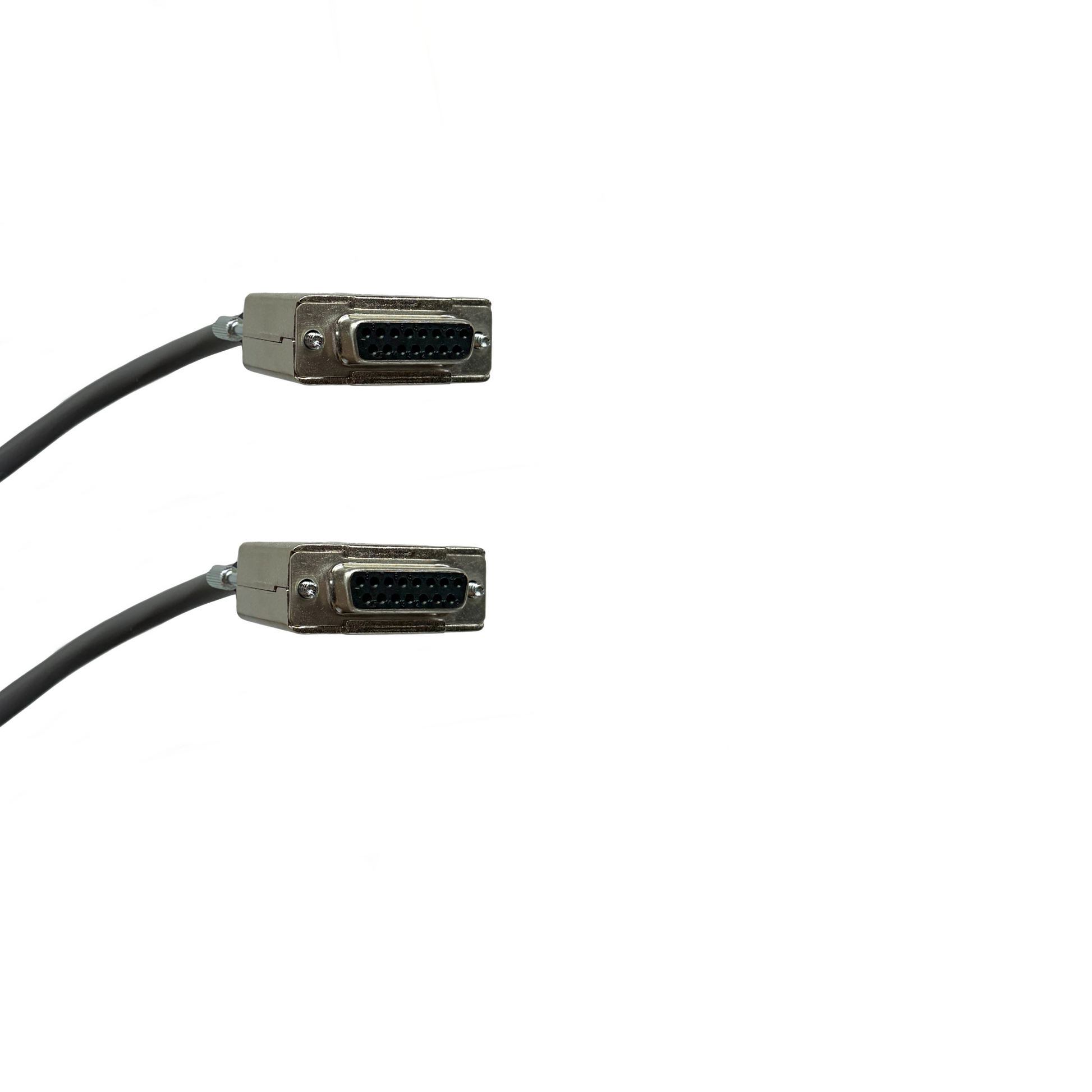

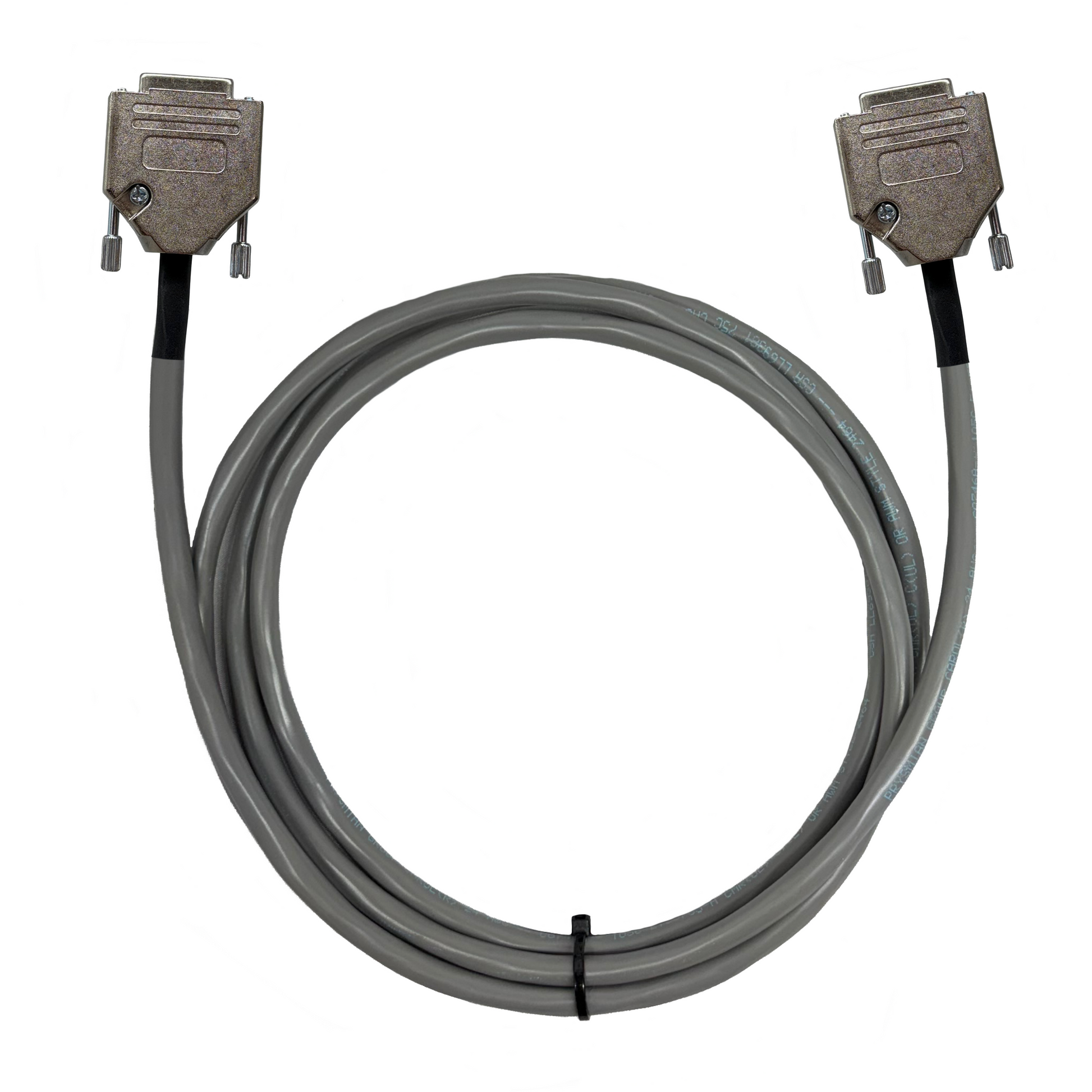

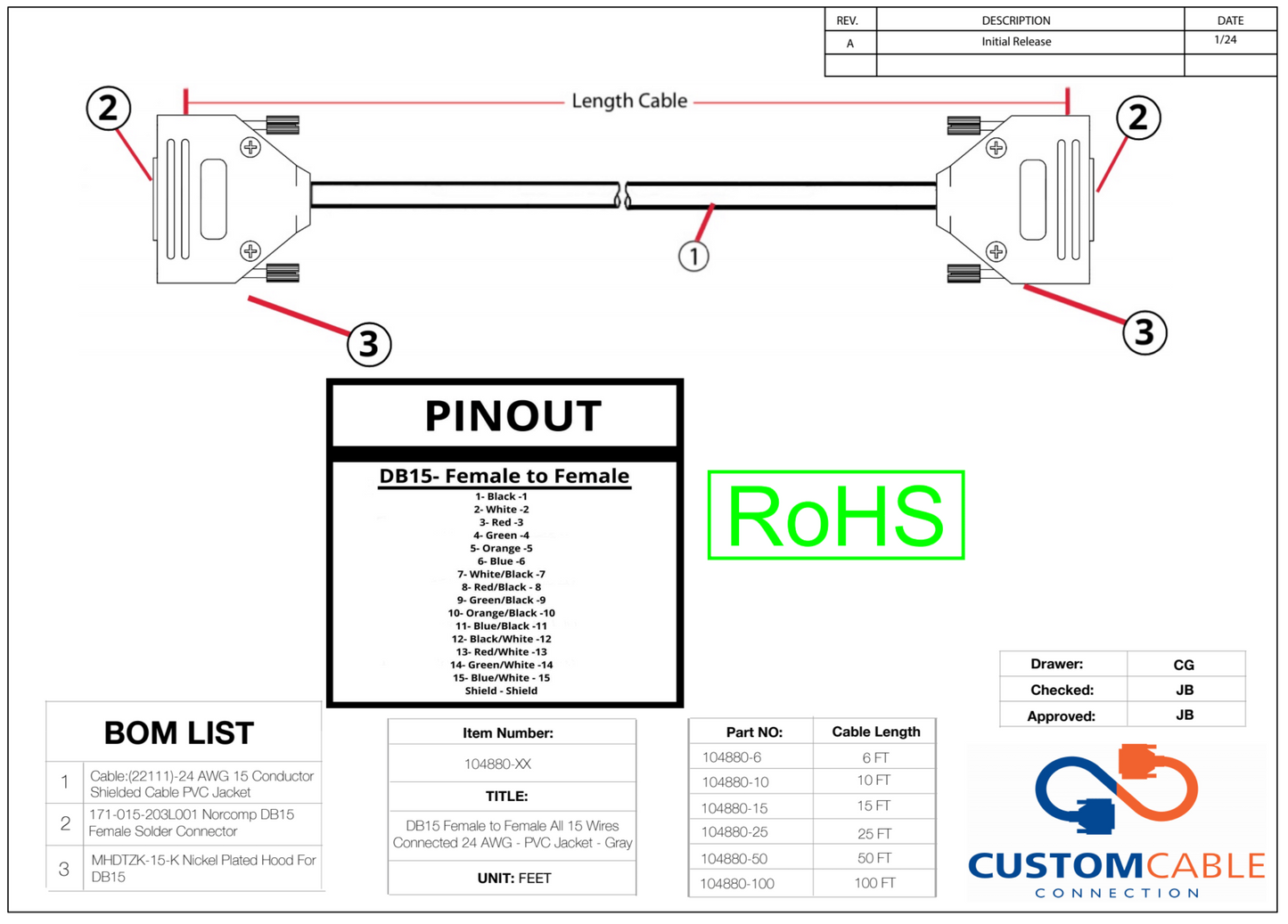

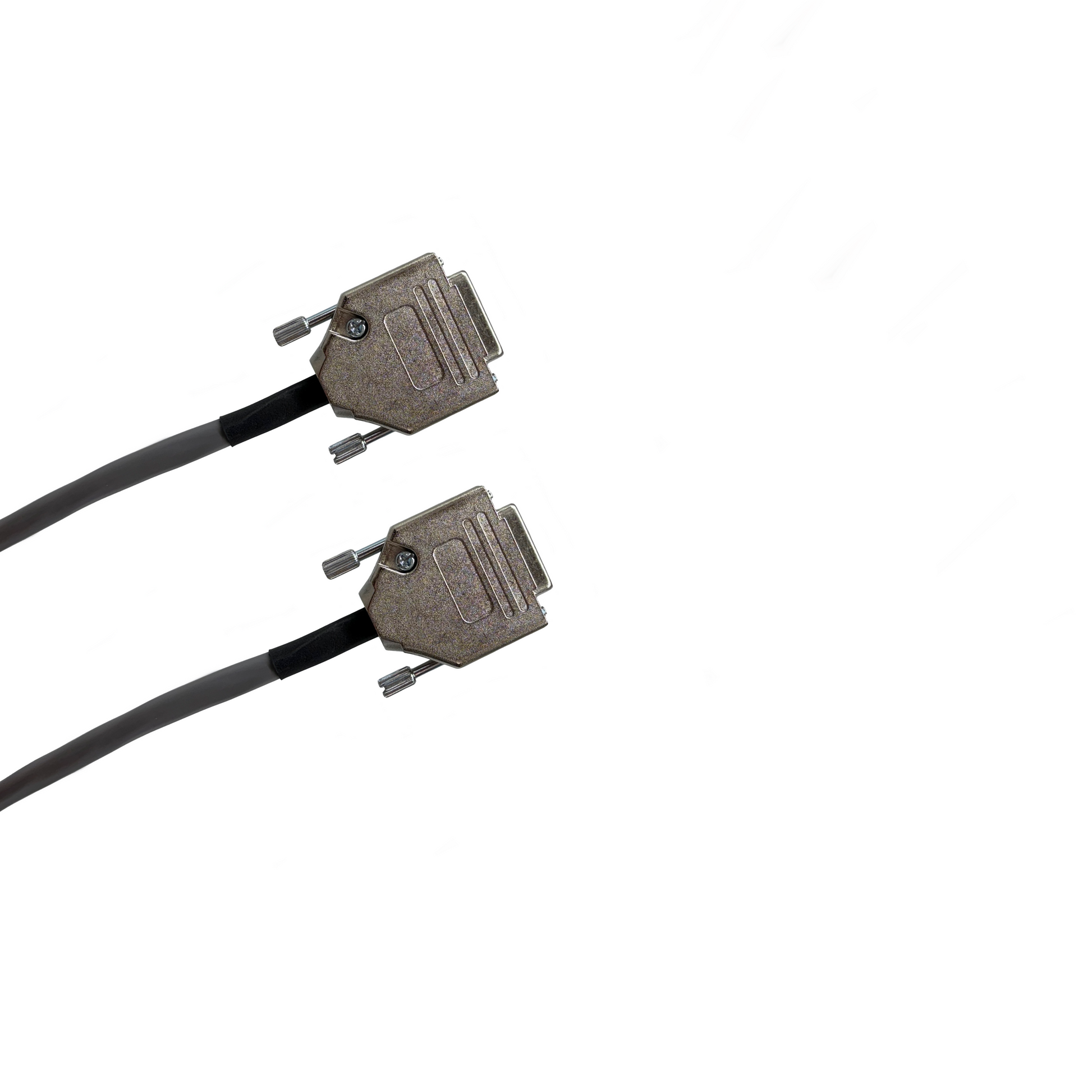

DB15 Female to Female All 15 Wires Connected 24 AWG - PVC Jacket - Gray
