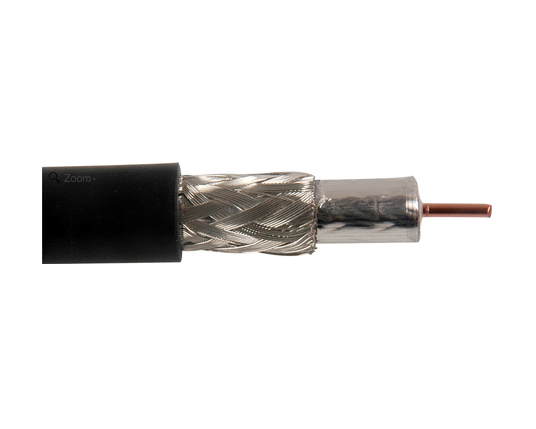

Canare L-5.5CUHD 12G-SDI 75 OHM 16 AWG Video Coaxial Cable - 984 Feet

Brand: Canare      SKU: L-5-5CUHD-984

Length
Color
Black
  • Canare's L-5.5CUHD is a 75 OHM video Coax cable that can effectively transmit 12G-SDI signals over 100 meters. The outside diameter of the cable is the same as their existing L-5CFB and L-5CHD cables to ensure interoperability. Canare has also introduced a new BNC Connector the BCP-D55UHD to ensure minimal return loss while using these cables.
    • Crimp Tool for BCP-D55UHD connector is SKU: 62101

      General
    • Inner Conductor- Construction (qty/mm): 1/1.35A (Annealed Copper)
    • Nom. Cross Section Area (mm²): 1.43 16AWG
    • Overall Diameter (mm): 1.35
    • Insulation: Thickness (mm): 2.10 Foamed Polyethylene / Overall Diameter (mm): 5.55
    • Outer Conductor 1- Thickness (mm) 0.04 (Copper Laminated) / Overall Diameter (mm): 5.6 (Tape)
    • Outer Conductor 2-
    • Construction (carr/end/mm): 24/ 8/ 0.12TA
    • Pitch (mm): 37
    • Overall Diameter (mm): 6.2
    • Sheath Thickness: (mm): 0.75

      Specifications:
    • Rated Voltage AC: 60Vrms
    • Temperature Range: -20° ~ +75°C
    • D.C. Resistance - Inner Conductor: ?12.8?/km (20°C) / Outer Conductor: ?10.3?/km (20°C)
    • Insulation Resistance: ?1000M? km
    • Voltage Proof: AC1000V 1 minute Not Breakdown
    • Characteristic Impedance: 75±3?
    • Nominal Capacitance: 52nF/km ( 1kHz)

    Product Specs

    Cable type: RG7, L-5.5CUHD

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Length / Color Weight
      L-5-5CUHD-984 984ft / Black 61.0 lb
