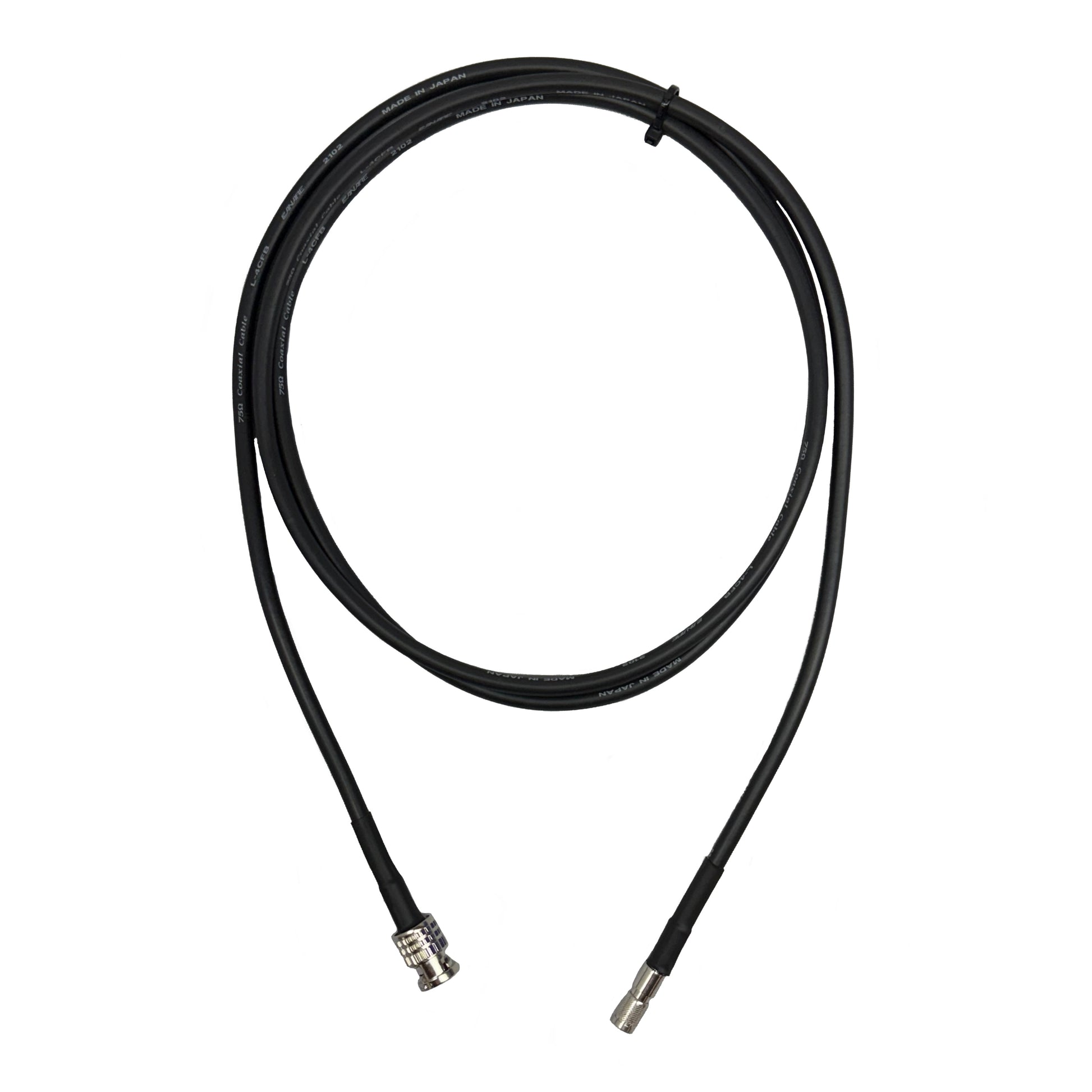

Canare BNC to DIN 1.0/2.3 SDI 3Ghz Video Cable L-4CFB

Brand: Custom Cable Connection      SKU: CANARE-BNC-DIN-1C

  • 3GHZ SDI cables are made of L-4CFB 75ohm RG59 20AWG Digital Video Coaxial Cable with Canare BCP-C4F BNC and DIN 1.0/2.3 connectors.
    Applications Include:

    • HD-Serial Digital Video
    • Best for Fixed HD Applications
    • HDTV Upgrades
    • Broadband Facilities
    • SMPTE 259M, 292M, 424M
    • High-density 1.0/2.3 Din Video Patchbay/Router output to BNC input
    • Great for use with Black Magic and Red One products that utilize 1.0/2.3 DIN 3G HD/SDI I/Os
    • Compatible with Blackmagic DeckLink Quad capture cards

    • Canare BCP-C4F BNC connectors
    • Construction: The cable is constructed from a solid annealed copper center conductor, as well as a tinned copper-braided shield, aluminum foil, and foam polyethylene dielectric.

    Product Specs

    Cable type: Canare L-4CFB

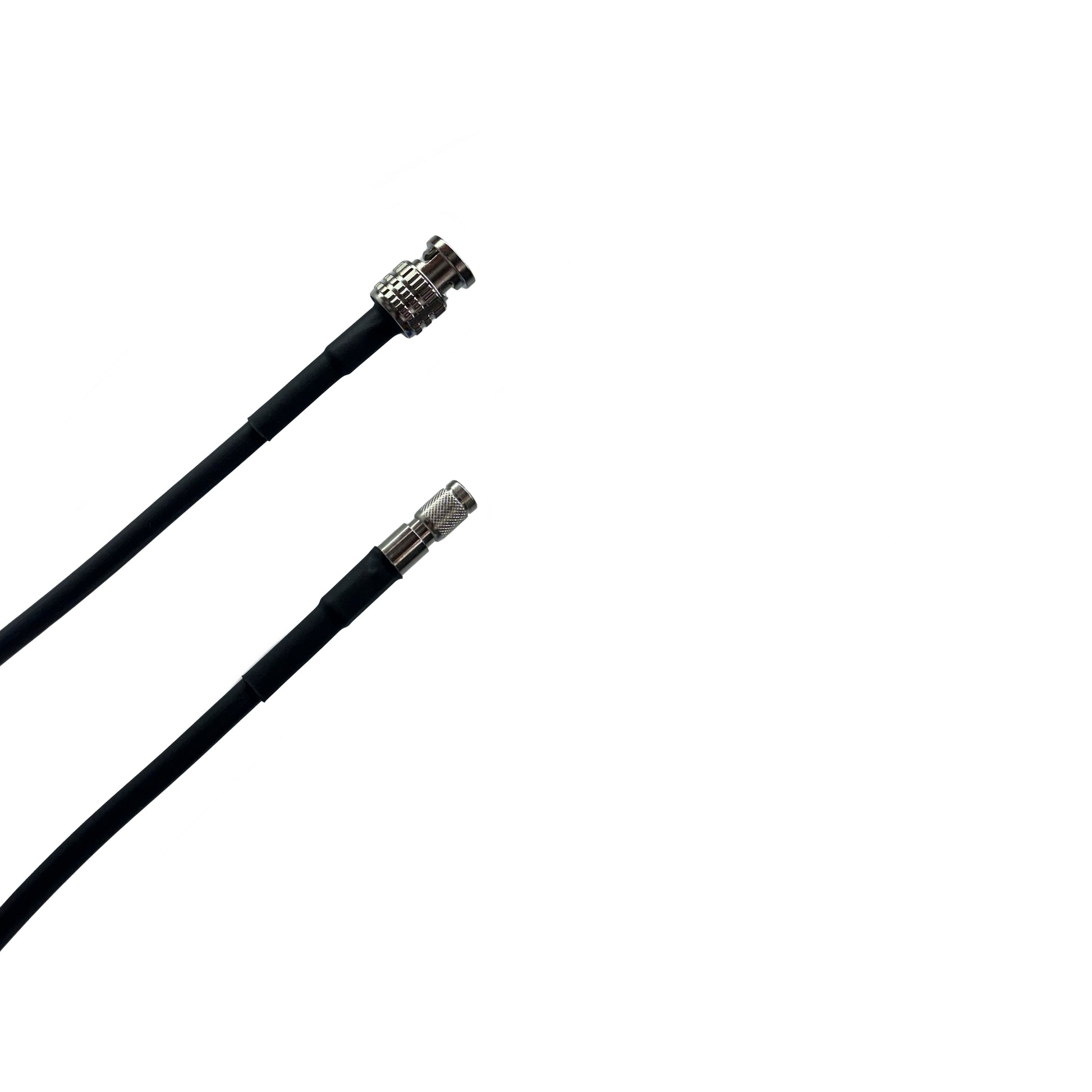

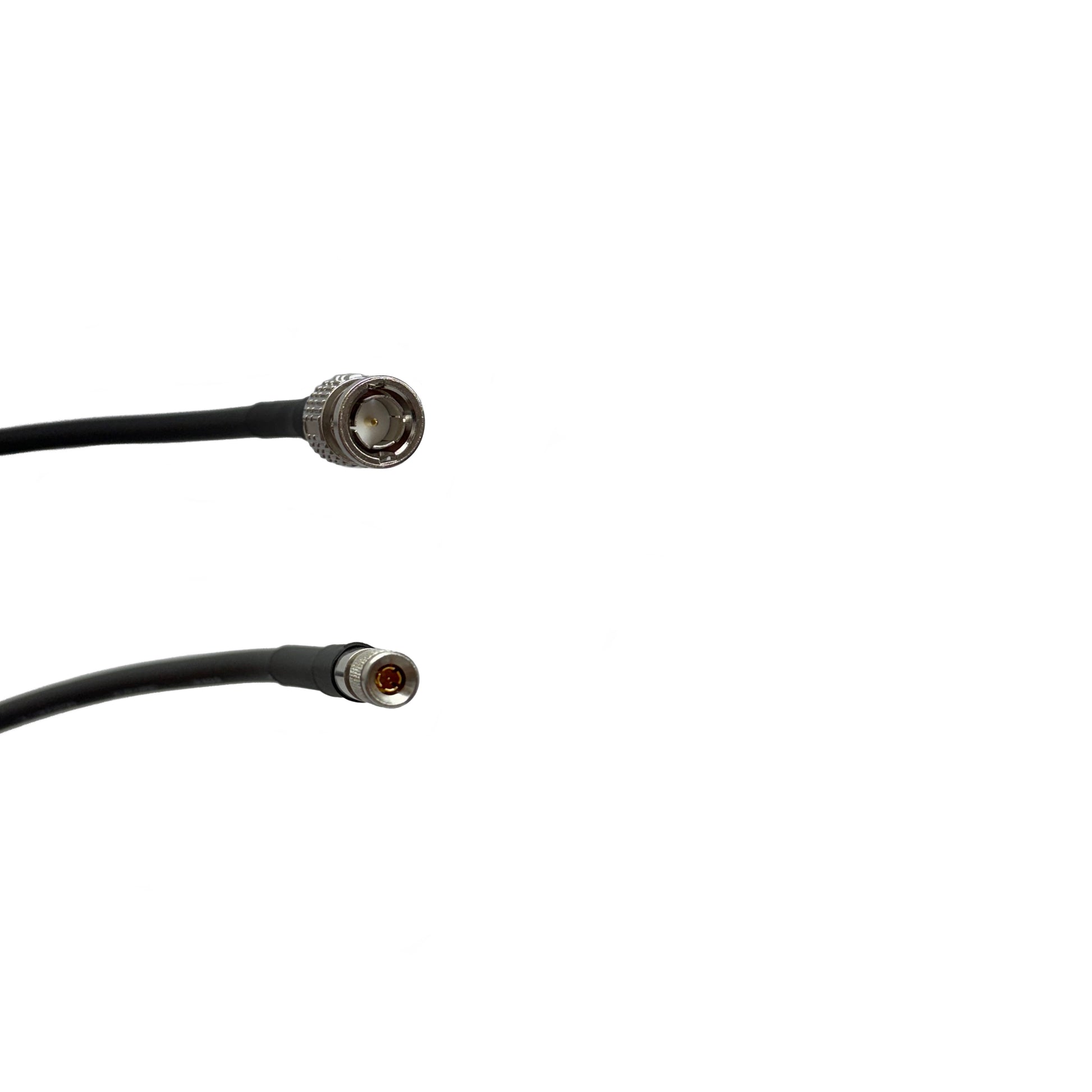

    Connector type: BNC to DIN 1.0/2.3

    Gender: Male to Male

    • For a custom length, call: 866-770-3207 or email:
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Length / Color Weight
      CANARE-BNC-DIN-1C 1ft / Black 0.3 lb
      CANARE-BNC-DIN-100C 100ft / Black 3.25 lb
      CANARE-BNC-DIN-3C 3ft / Black 0.3 lb
      CANARE-BNC-DIN-6C 6ft / Black 0.35 lb
      CANARE-BNC-DIN-10C 10ft / Black 0.45 lb
      CANARE-BNC-DIN-25C 25ft / Black 1.0 lb
