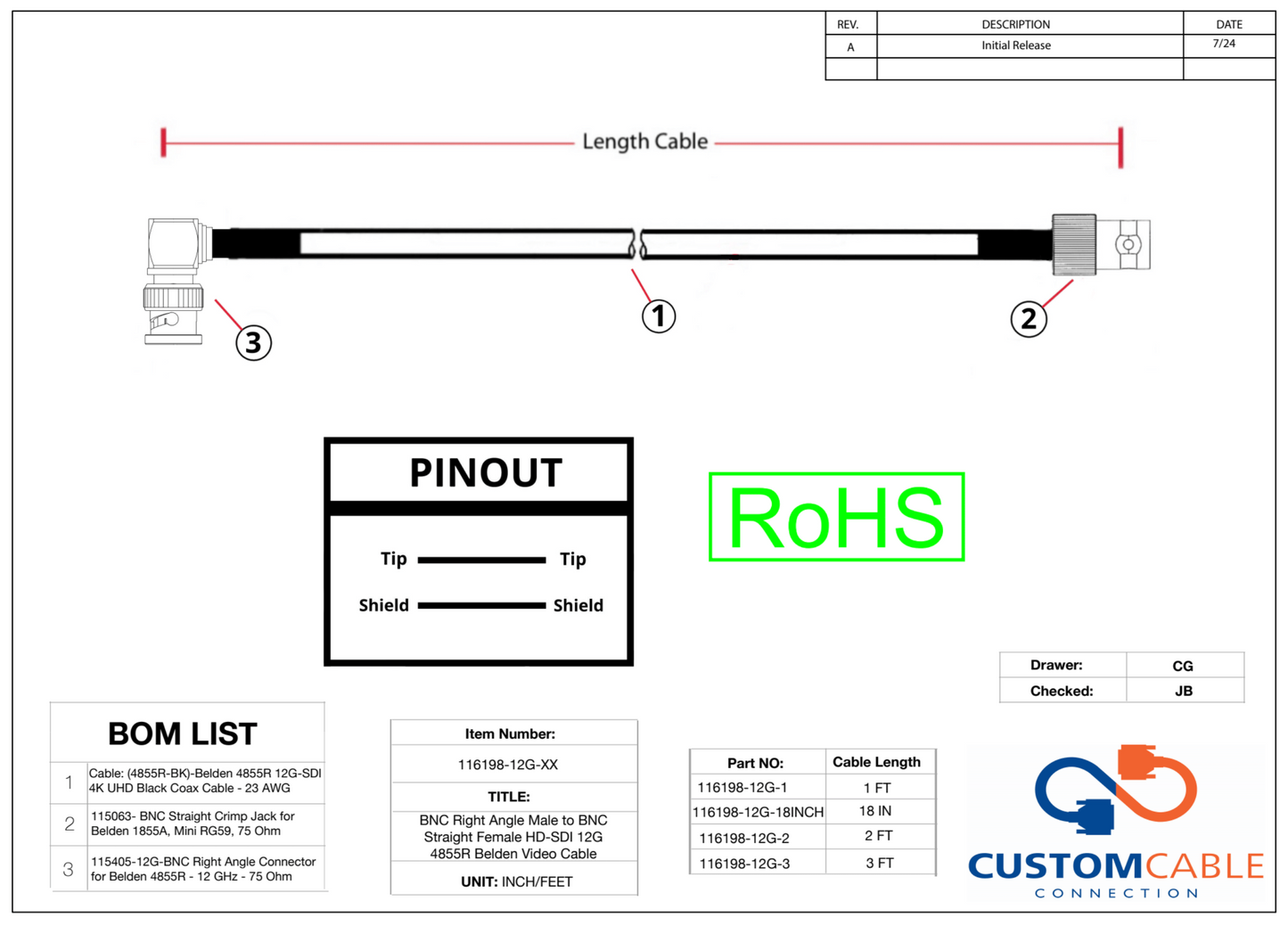

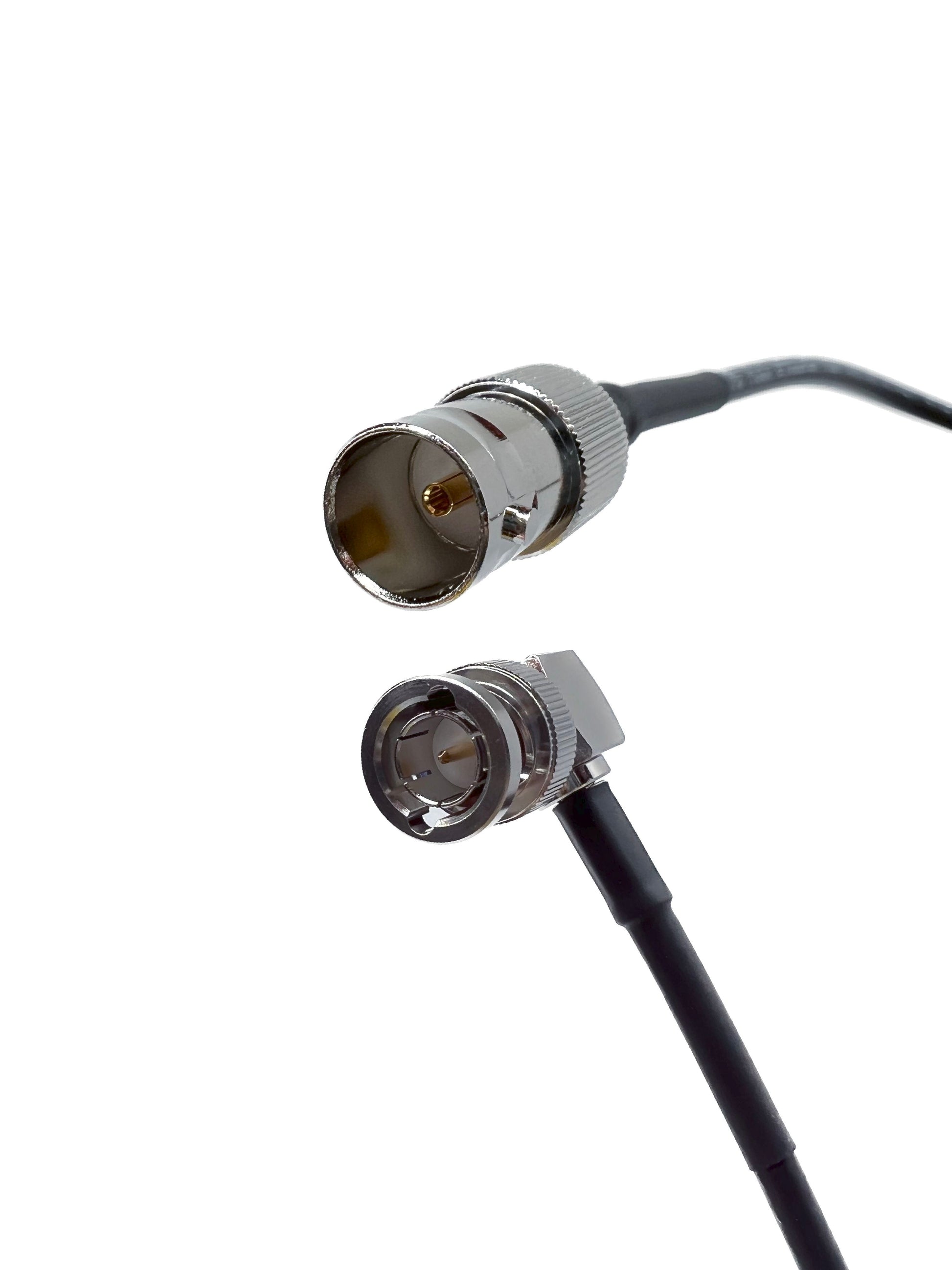

BNC Right Angle Male to BNC Straight Female HD-SDI 12G 4855R Belden Video Cable

BNC Right Angle Male to BNC Straight Female HD-SDI 12G 4855R Belden Video Cable

$34.60 USD
$34.60 USD
Sale Sold out
Shipping calculated at checkout.
Length
Color
12G Rated Mini RG59 HD-SDI cables are designed for professional broadcast applications. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 23AWG solid copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 12 Gbps data transfer.

  • Supports SMPTE 259M/292M/424M Standards
  • Connector A: True 75 Ohm BNC Male Right Angle
  • Connector B: True 75 Ohm BNC Female
  • Number of Coax: 1
  • RG Type: Mini RG59
  • AWG: 23
  • Stranding: Solid
  • Conductor Material: SC -Silvered Copper Conductor
  • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
  • Outer Shield Material : Foil + 95% Tinned Copper Braid Shield
  • Cable Outer Diameter: 0.159 in

    Used with Blackmagic Design, Blackmagic HyperDeck Shuttle, Red One, Atomos, and many other patch panels, CCTV devices and cameras.
    • View full details

    Product Specs

    Cable Type: 12G Belden 4855R

    Connector Type: BNC Right Angle to BNC Female

    Gender: Male to Female

    Additional Info

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    Sku Length / Color Weight
    116198-12G-6INCH 6 Inch / Black 0.1 lb
    116198-12G-1 1ft / Black 0.26 lb
    116198-12G-18INCH 18 Inch / Black 0.29 lb
    116198-12G-2 2ft / Black 0.35 lb
    116198-12G-3 3ft / Black 0.4 lb
