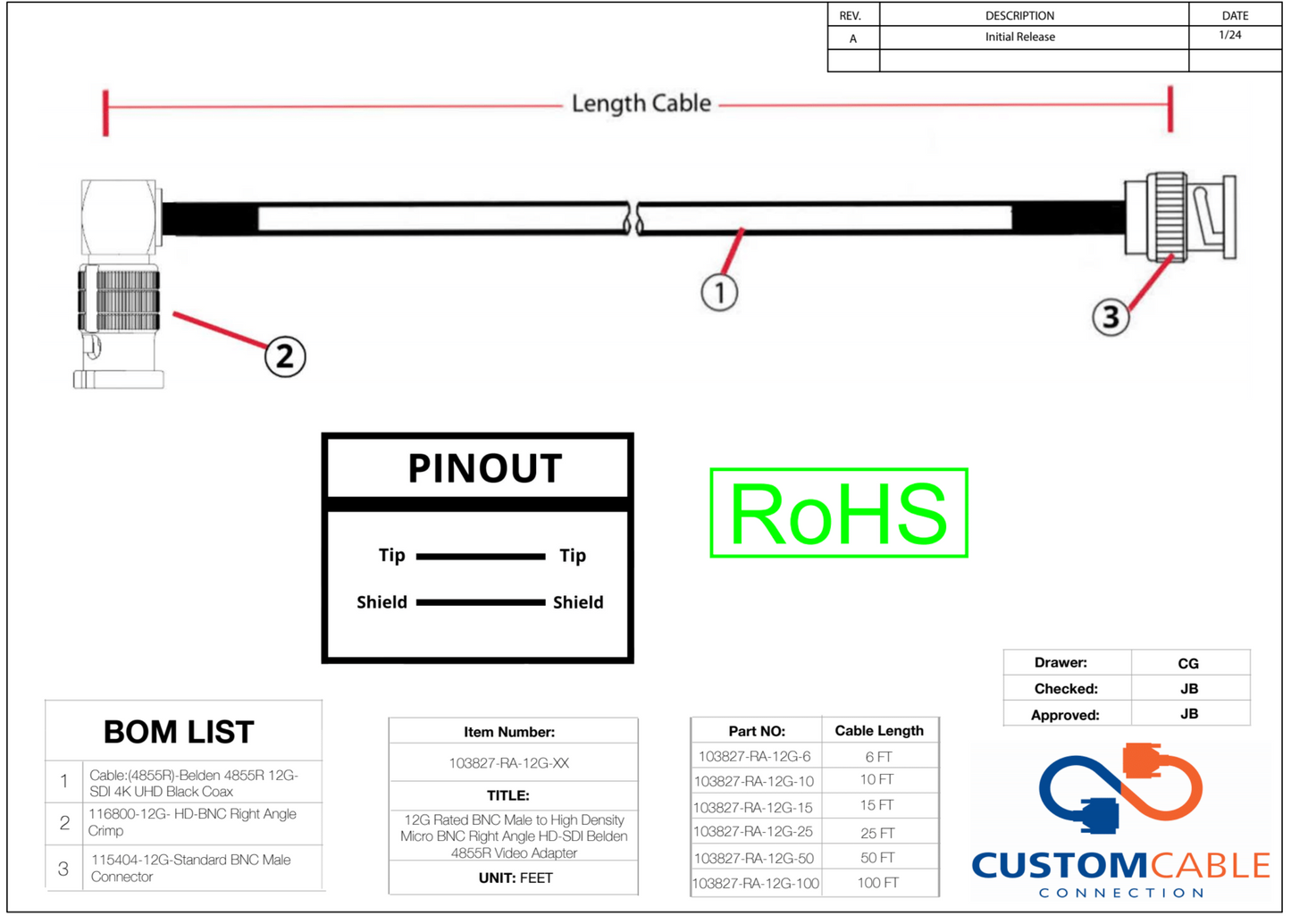

12G Rated BNC Male to High Density Micro BNC Right Angle HD-SDI Belden 4855R Video Adapter Cable

Brand: Custom Cable Connection      SKU: 103827-RA-12G-6INCH

Length
Color
Black
  • 12G Rated! Connect your RED ONE camera with BNC to HD Micro BNC Right Angle cables.

    HD-SDI cables are designed for professional broadcast applications. These cables feature Belden 4855R copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 23 AWG solid copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 12 Gbps data transfer.

    • Supports SMPTE 259M/292M/424M Standards
    • Connector A: True 75 Ohm Male BNC
    • Connector B: True 75 Ohm Male Micro HD BNC Right Angle
    • Number of Coax: 1
    • RG Type: Mini RG59
    • AWG: 23
    • Stranding: Solid
    • Conductor Material: SC - Silvered Copper
    • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
    • Outer Shield Material Trade Name: Duofoil®

      Used with Blackmagic Design, Blackmagic HyperDeck Shuttle, Red One, Atomos, and many other patch panels, CCTV devices and cameras.

    Product Specs

    Cable type: 12G Belden 4855R

    Connector type: BNC to Right Angle HD BNC

    Gender: Male to Male

    Title tag: 12G Rated BNC Male to High Density Micro BNC Right Angle HD-SDI Video Adapter Cable

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Barcode Length / Color Weight
      103827-RA-12G-6INCH 810105473780 6 Inch / Black 0.2 lb
      103827-RA-12G-1 810105470130 1ft / Black 0.25 lb
      103827-RA-12G-1.5 810105473803 18" / Black 0.27 lb
      103827-RA-12G-2 810105470147 2ft / Black 0.3 lb
      103827-RA-12G-3 810105470154 3ft / Black 0.3 lb
      103827-RA-12G-5 810105470161 5ft / Black 0.31 lb
      103827-RA-12G-6 810105470178 6ft / Black 0.5 lb
      103827-RA-12G-10 810105473858 10ft / Black 0.67 lb
      103827-RA-12G-15 810105473865 15ft / Black 1.0 lb
      103827-RA-12G-25 25FT / Black 1.0 lb
      103827-RA-12G-40 40ft / Black 1.2 lb
      103827-RA-12G-50 50ft / Black 1.5 lb
