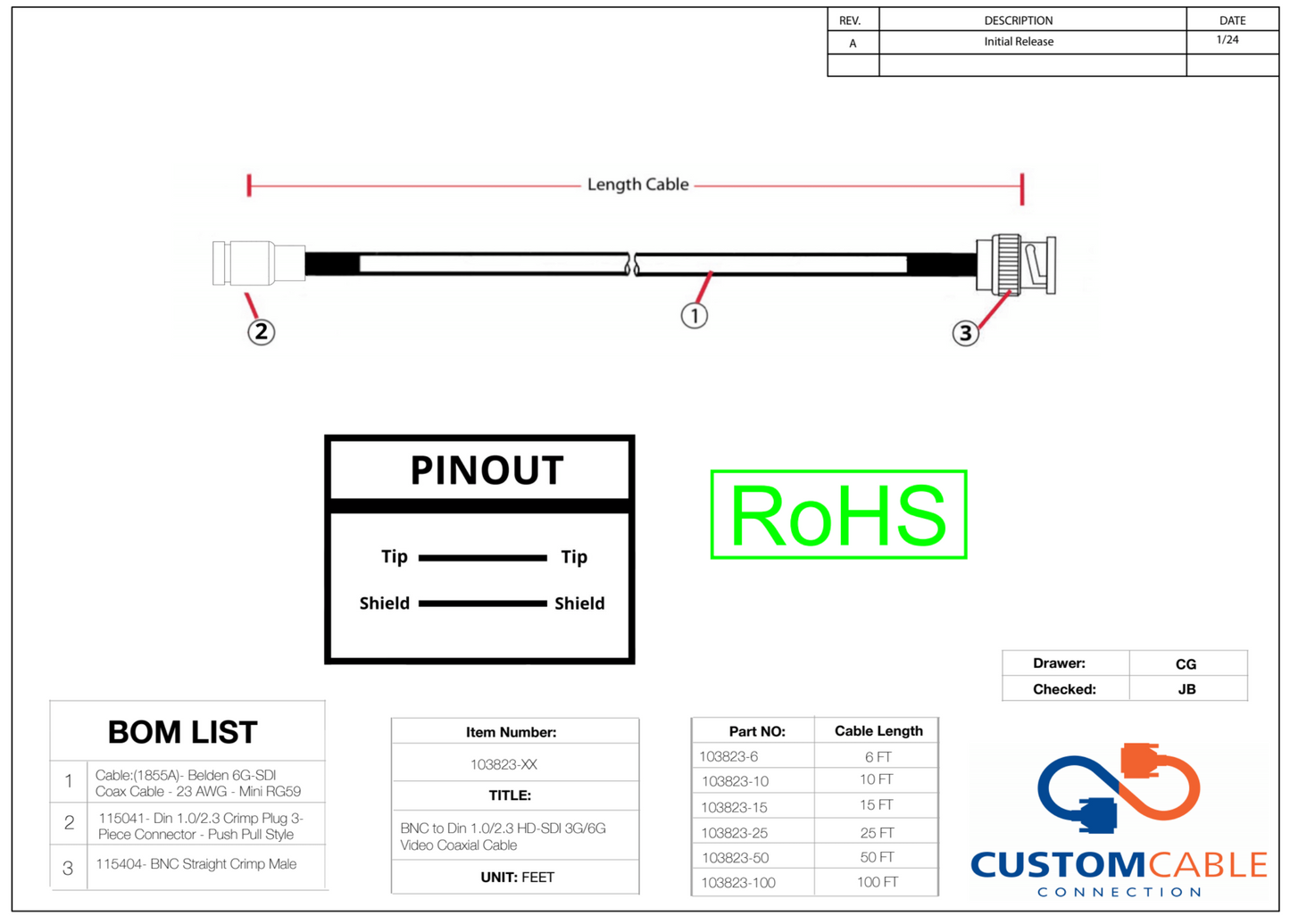

BNC to Din 1.0/2.3 HD-SDI 3G/6G Video Coaxial Cable

Brand: Custom Cable Connection      SKU: 103823-6INCH

Length
Color
Black
  • Mini RG59 HD-SDI cables are designed for professional broadcast applications. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 23AWG solid copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 3 Gbps data transfer.

    • Clark Wire CD7523 Cable is made in the USA
    • Supports SMPTE 259M/292M/424M Standards
    • Connector A: True 75 Ohm BNC Male
    • Connector B: True 75 Ohm Din 1.0/2.3 Male
    • Number of Coax: 1
    • RG Type: Mini RG59
    • AWG: 23
    • Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
    • Outer Shield Material Trade Name: Duofoil®

      Used with Blackmagic Design, Blackmagic HyperDeck Shuttle, Red One, Atomos, and many other patch panels, CCTV devices and cameras.

    Product Specs

    Cable type: Mini RG59

    Connector type: BNC to Din 1.0/2.3

    Gender: Male to Male

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Barcode Length / Color Weight
      103823-6INCH 810105472141 6 Inch / Black 0.3 lb
      103823-1 810105472028 1ft / Black 0.3 lb
      103823-2 810105472066 2ft / Black 0.3 lb
      103823-3 810105472080 3ft / Black 0.3 lb
      103823-5 810105472110 5ft / Black 0.3 lb
      103823-6 810105472134 6ft / Black 0.5 lb
      103823-10 810105472035 10ft / Black 1.0 lb
      103823-15 810105472059 15ft / Black 1.5 lb
      103823-25 810105472073 25ft / Black 2.0 lb
      103823-30 30ft / Black 0.75 lb
      103823-35 810105472097 35ft / Black 3.5 lb
      103823-40 810105472103 40ft / Black 4.0 lb
      103823-50 810105472127 50ft / Black 5.0 lb
      103823-75 810105472158 75ft / Black 7.5 lb
      103823-100 810105472042 100ft / Black 10.0 lb
