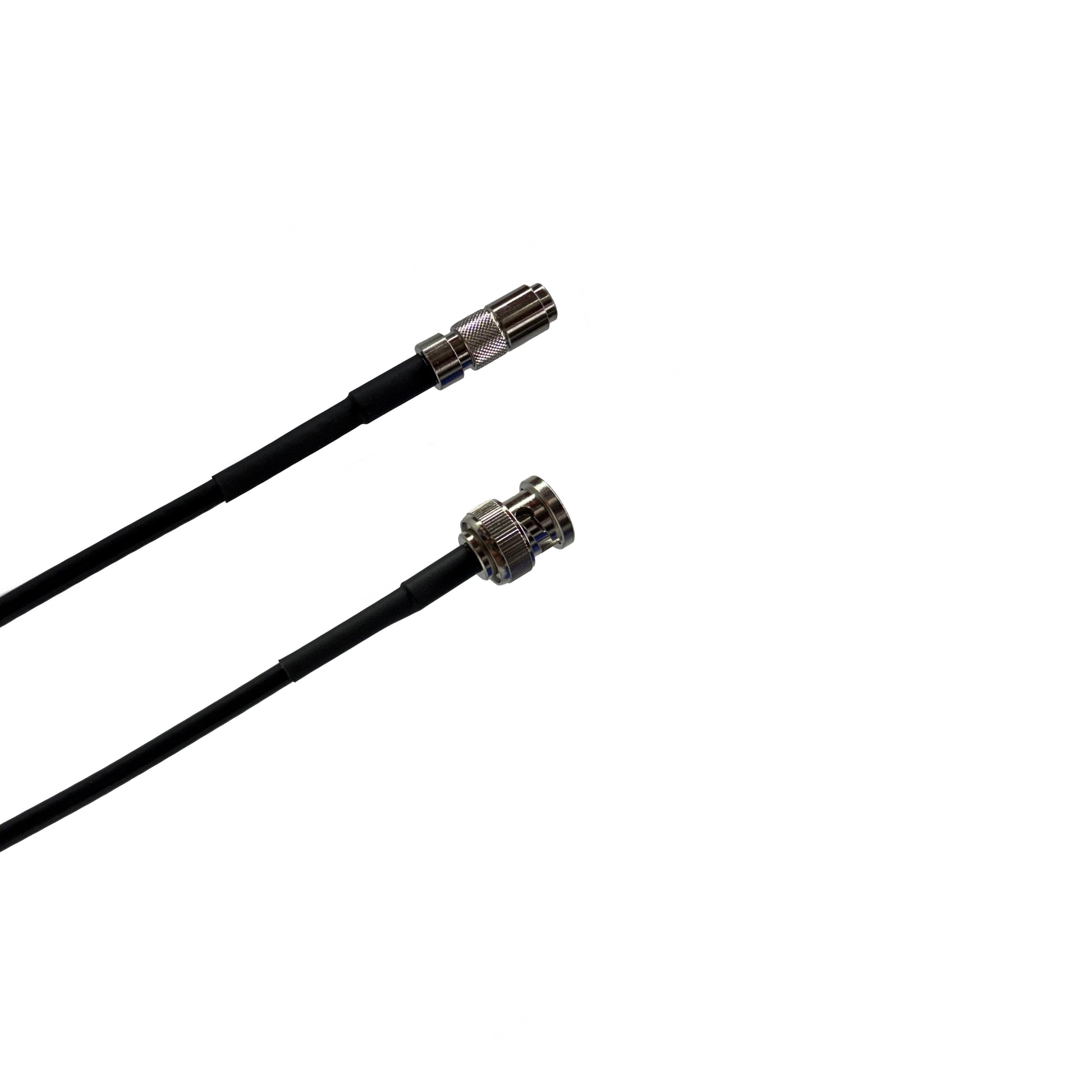

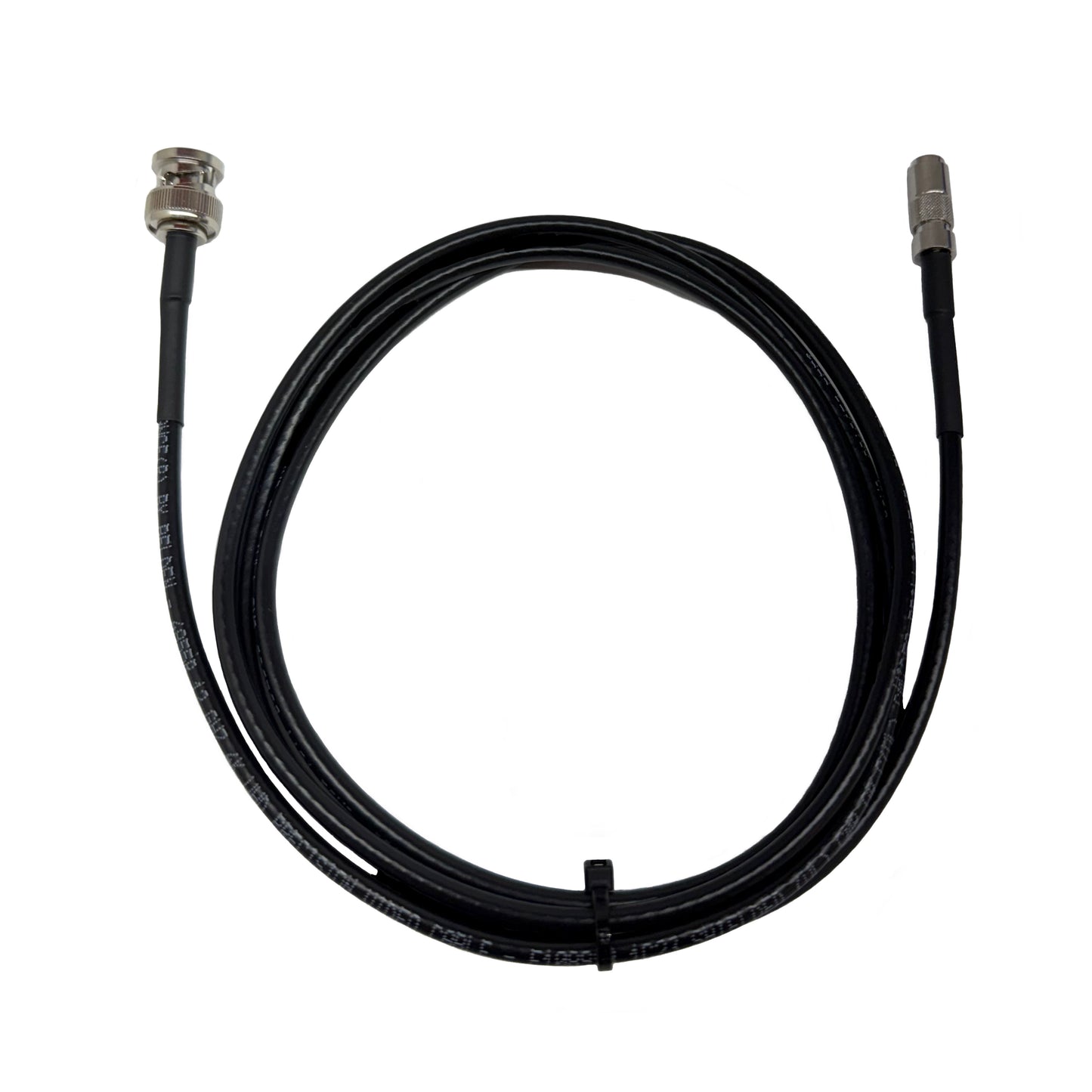

12G Rated BNC to Din 1.0/2.3 HD-SDI Belden 4855R Video Coaxial Cable

Brand: Custom Cable Connection      SKU: 103823-12G-6INCH

Length
Color
Black
  • 12G Rated Mini RG59 HD-SDI cables are designed for professional broadcast applications. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 23AWG solid copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 12 Gbps data transfer.

    • Cable is made in the USA
    • Supports SMPTE 259M/292M/424M Standards

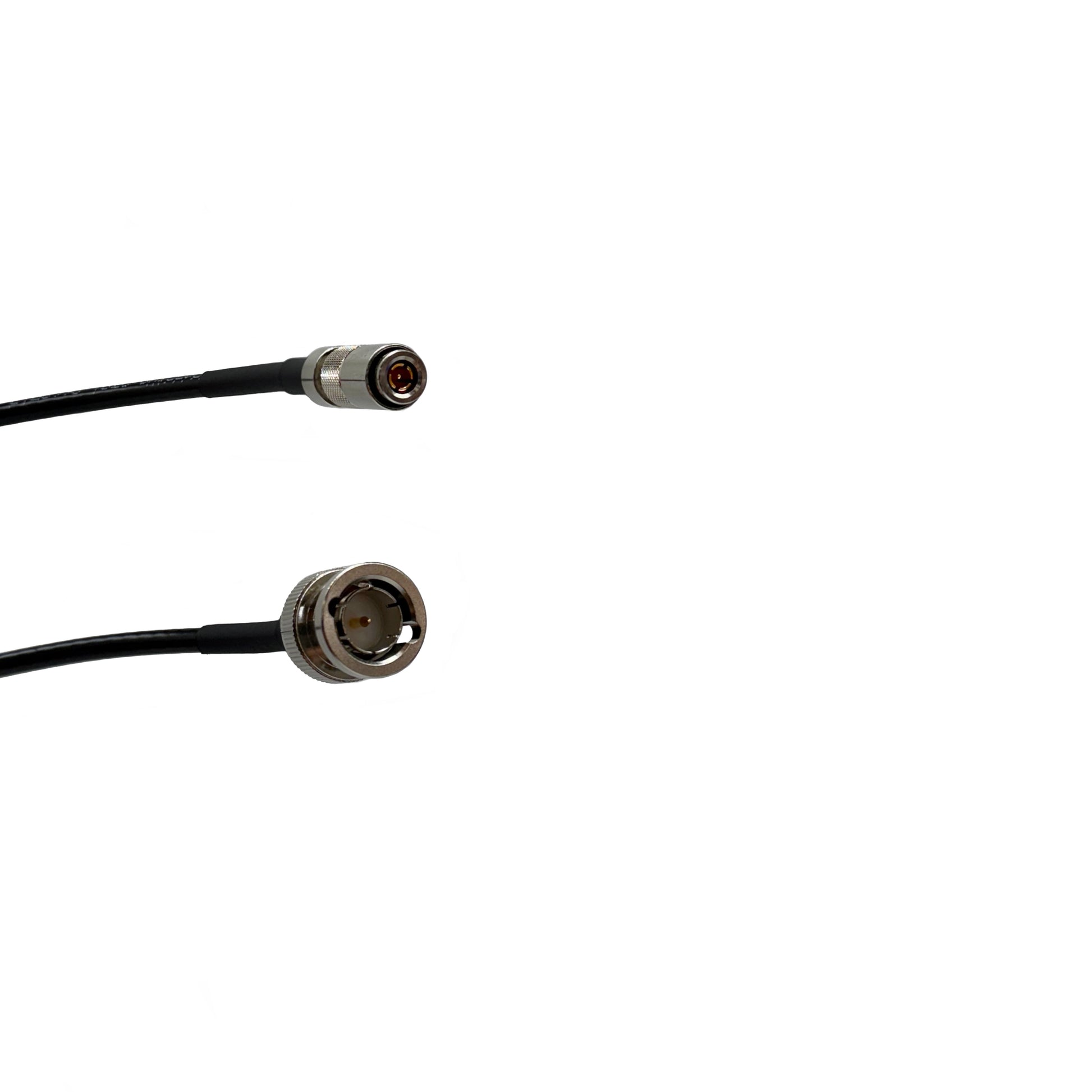

    • Connector A: True 75 Ohm BNC Male
    • Connector B: True 75 Ohm Din 1.0/2.3 Male
    • Number of Coax: 1
    • RG Type: Mini RG59
    • AWG: 23
    • Stranding: Solid
    • Conductor Material: SC - Silvered Copper
    • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
    • Outer Shield Material Trade Name: Duofoil®

      Used with Blackmagic Design, Blackmagic HyperDeck Shuttle, Red One, Atomos, and many other patch panels, CCTV devices and cameras.

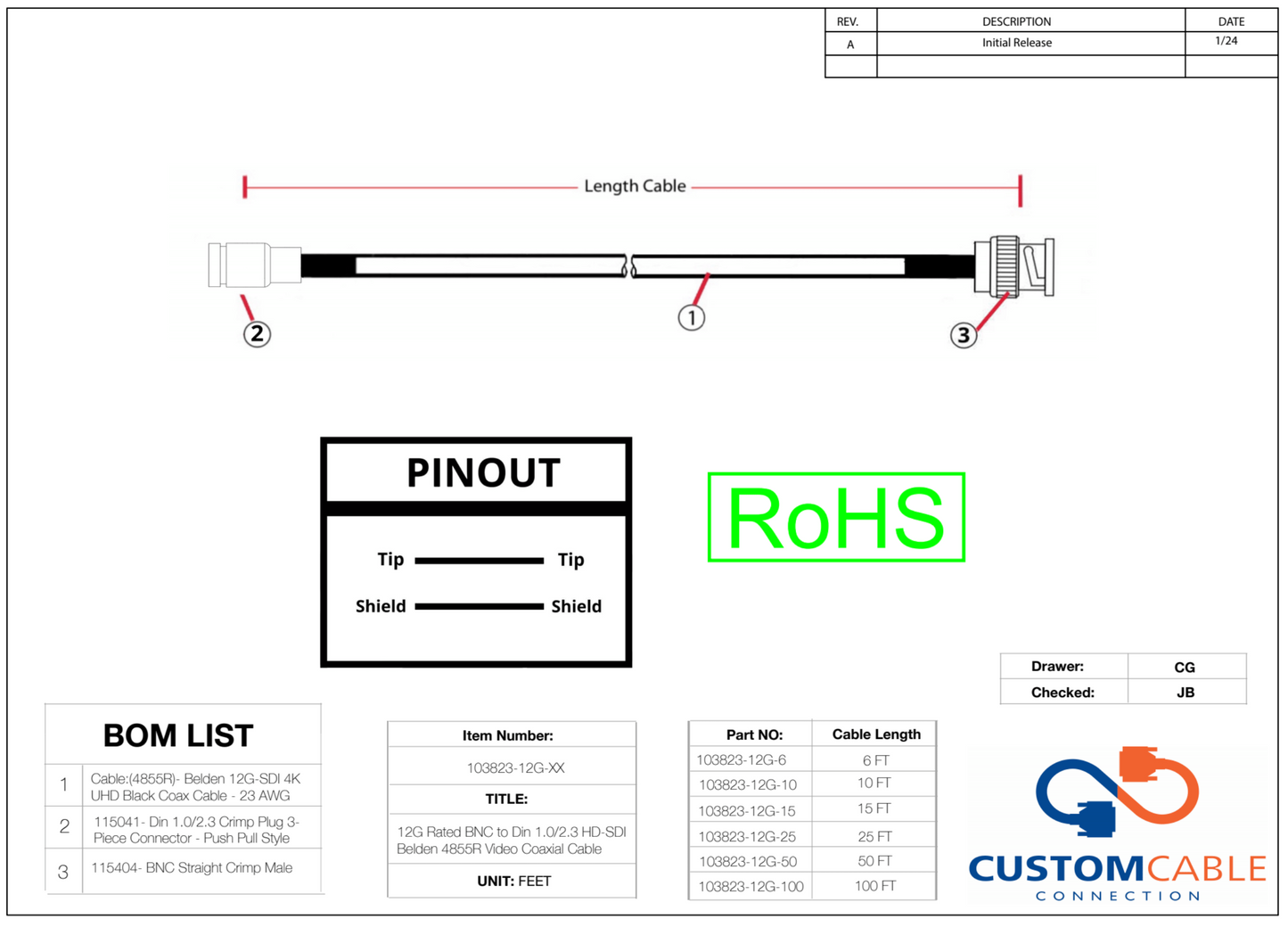

    Product Specs

    Cable type: 12G Belden 4855R

    Connector type: BNC to Din 1.0/2.3

    Gender: Male to Male

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Barcode Length / Color Weight
      103823-12G-6INCH 810105473186 6 Inch / Black 0.2 lb
      103823-12G-1 810105473193 1ft / Black 0.25 lb
      103823-12G-2 810105473209 2ft / Black 0.3 lb
      103823-12G-3 810105473216 3ft / Black 0.3 lb
      103823-12G-5 810105473223 5ft / Black 0.34 lb
      103823-12G-6 810105473230 6ft / Black 0.5 lb
      103823-12G-10 810105473247 10ft / Black 1.0 lb
      103823-12G-15 810105473254 15ft / Black 1.25 lb
      103823-12G-25 810105473261 25ft / Black 2.0 lb
      103823-12G-35 810105473278 35ft / Black 2.5 lb
      103823-12G-50 810105473285 50ft / Black 3.0 lb
      103823-12G-75 810105473292 75ft / Black 3.5 lb
