Custom Cable Connection

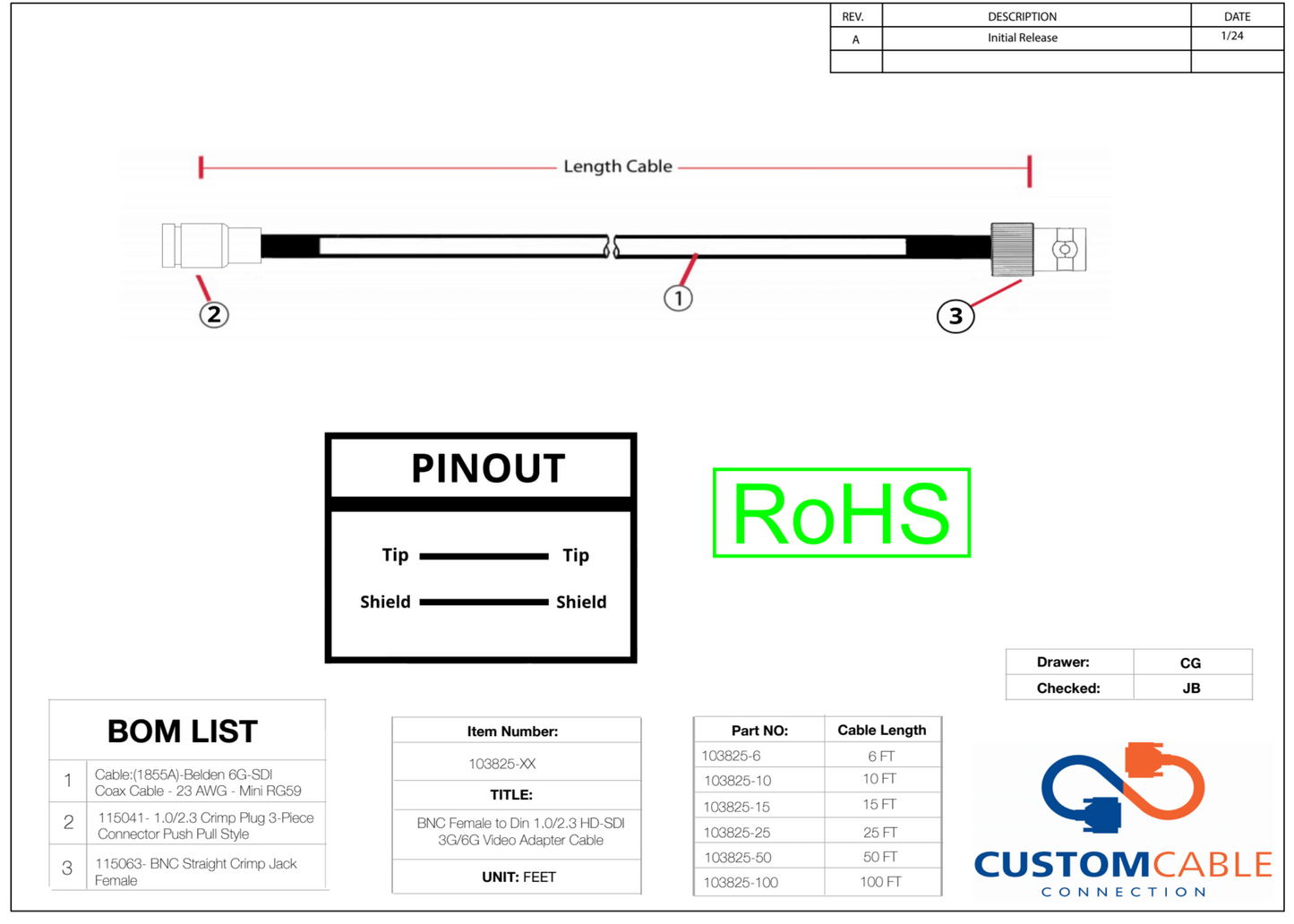

BNC Female to Din 1.0/2.3 HD-SDI 3G/6G Video Adapter Cable

BNC Female to Din 1.0/2.3 HD-SDI 3G/6G Video Adapter Cable

Regular price $26.90 USD
Regular price Sale price $26.90 USD
Sale Sold out
Shipping calculated at checkout.
Length
Color
Adapt your existing male BNC SDI cables to Din 1.0/2.3 connections with this adapter cable. This is a good interface cable for RED ONE cameras which feature the DIN video connector and NVISION NV8288 broadcast router.

Mini RG59 HD-SDI cables are designed for professional broadcast applications. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 23 AWG solid copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 3 Gbps data transfer.

  • Belden 1855A Cable is made in the USA
  • Supports SMPTE 259M/292M/424M Standards
  • Connector A: True 75 Ohm BNC Female
  • Connector B: True 75 Ohm Din 1.0/2.3 Male
  • Number of Coax: 1
  • RG Type: Mini RG59
  • AWG: 23
  • Stranding: Solid
  • Conductor Material: BC - Bare Copper
  • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
  • Outer Shield Material Trade Name: Duofoil®

    Used with Blackmagic Design, Blackmagic HyperDeck Shuttle, Red One, Atomos, and many other patch panels, CCTV devices and cameras.
  • View full details

    Product Specs

    Cable Type: Mini RG59

    Connector Type: BNC F to Din 1.0/2.3

    Gender: Female to Male

    Additional Info

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    Sku Barcode Length / Color Weight
    103825-6INCH 810105472554 6 Inch / Black 0.14 lb
    103825-1 810105470062 1ft / Black 0.14 lb
    103825-18INCH 810105472578 18 Inch / Black 0.2 lb
    103825-2 810105472585 2ft / Black 0.25 lb
    103825-3 810105472592 3ft / Black 0.3 lb
    103825-6 810105472608 6ft / Black 0.34 lb
    103825-12 810105477634 12ft / Black 0.5 lb
    103825-25 810105472615 25ft / Black 1.3 lb
    103825-33 810105478075 33ft / Black 1.8 lb
    103825-50 810105472622 50ft / Black 3.5 lb
    103825-75 810105472639 75ft / Black 5.0 lb
