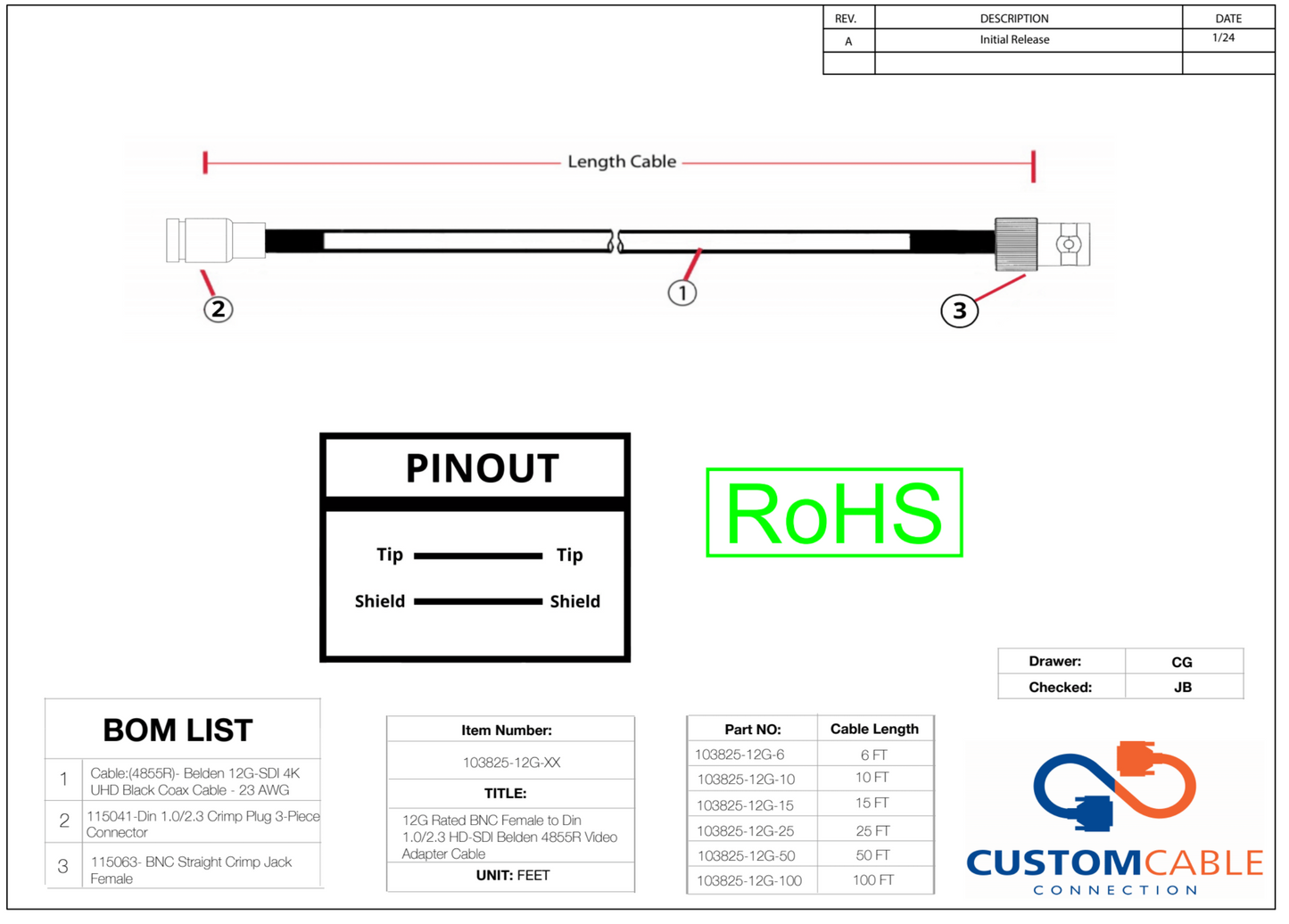

12G Rated BNC Female to Din 1.0/2.3 HD-SDI Belden 4855R Video Adapter Cable

Brand: Custom Cable Connection      SKU: 103825-12G-6INCH

  • 12G Rated! Adapt your existing male BNC SDI cables to Din 1.0/2.3 connections with this adapter cable. This is a good interface cable for RED ONE cameras which feature the DIN video connector and NVISION NV8288 broadcast router.

    Mini RG59 HD-SDI cables are designed for professional broadcast applications. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 23 AWG solid copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 12 Gbps data transfer.

    • Supports SMPTE 259M/292M/424M Standards
    • Connector A: True 75 Ohm BNC Female
    • Connector B: True 75 Ohm Din 1.0/2.3 Male
    • Number of Coax: 1
    • RG Type: Mini RG59
    • AWG: 23
    • Stranding: Solid
    • Conductor Material: SC - Silvered Copper
    • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
    • Outer Shield Material Trade Name: Duofoil®

      Used with Blackmagic Design, Blackmagic HyperDeck Shuttle, Red One, Atomos, and many other patch panels, CCTV devices and cameras.

    Product Specs

    Cable type: 12G Belden 4855R

    Connector type: BNC F to Din 1.0/2.3

    Gender: Female to Male

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Barcode Length / Color Weight
      103825-12G-6INCH 810105473124 6 Inch / Black 0.14 lb
      103825-12G-1 810105473131 1ft / Black 0.14 lb
      103825-12G-18INCH 810105473148 18 Inch / Black 0.2 lb
      103825-12G-2 810105473155 2ft / Black 0.3 lb
      103825-12G-3 810105473162 3ft / Black 0.35 lb
      103825-12G-6 810105473179 6ft / Black 0.4 lb
