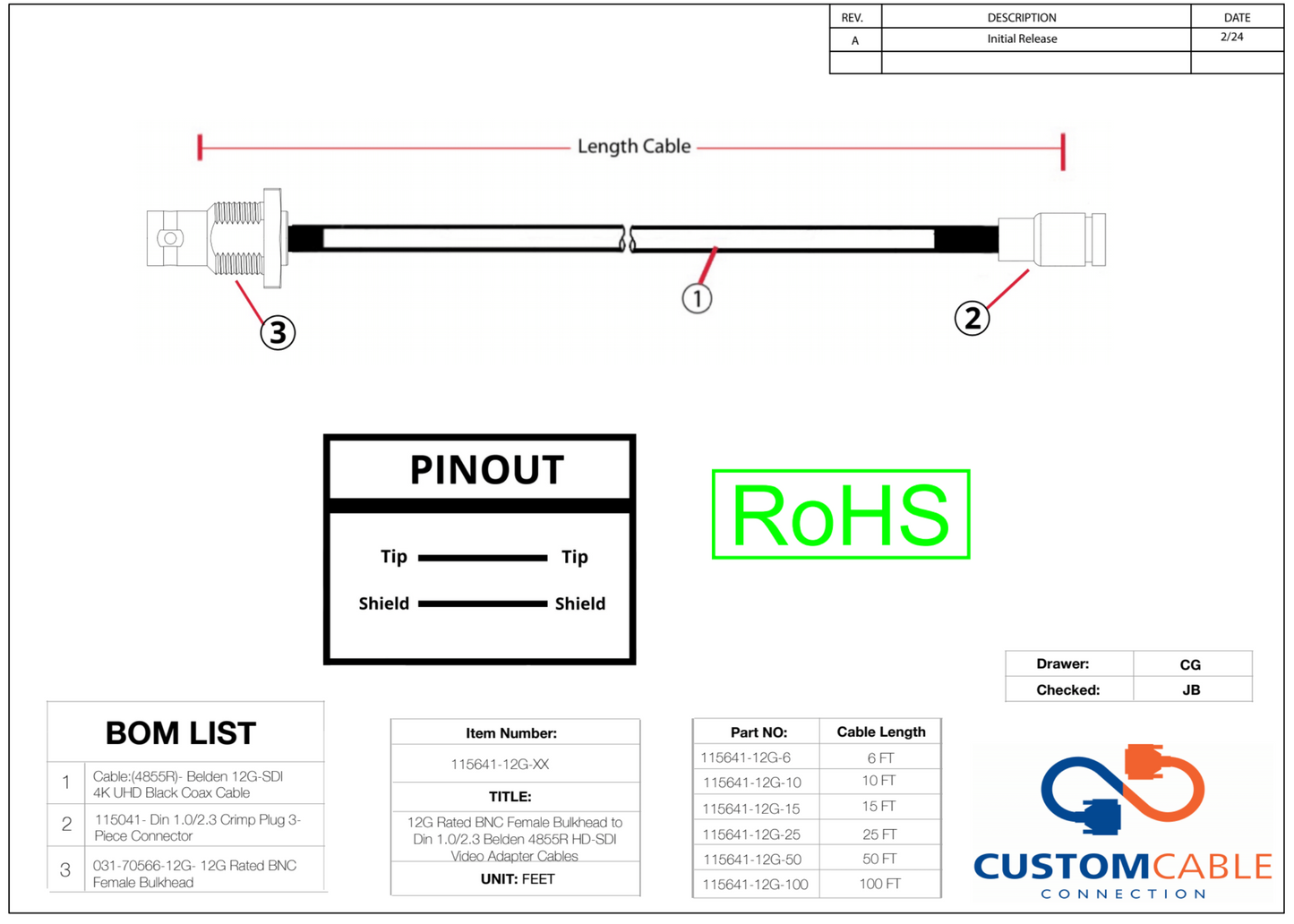

12G Rated BNC Female Bulkhead to Din 1.0/2.3 Belden 4855R HD-SDI Video Adapter Cables

12G Rated BNC Female Bulkhead to Din 1.0/2.3 Belden 4855R HD-SDI Video Adapter Cables

$48.70 USD
$48.70 USD
Sale Sold out
Shipping calculated at checkout.
Length
Color
12G Rated BNC Female Bulkhead to Din 1.0/2.3 cables are designed for professional broadcast applications. Adapt your Standard BNC connections to Din 1.0/2.3 with this adapter cable. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 23 AWG solid copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 3/6/12 Gbps data transfer.

  • 12G, UHDTV1, UHDTV2
  • Connector A: True 75 Ohm BNC Female Bulkhead
  • Connector B: True 75 Ohm Din 1.0/2.3 Male
  • Number of Coax: 1
  • RG Type: Mini RG59
  • AWG: 23
  • Stranding: Solid
  • Conductor Material: SC - Silvered Copper
  • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
  • Outer Shield Material Trade Name: Duofoil®

    Used with Blackmagic Design, Blackmagic HyperDeck Shuttle, Red One, Atomos, and many other patch panels, CCTV devices and cameras.
    • View full details

    Product Specs

    Cable Type: 12G Belden 4855R

    Connector Type: BNC (F) Bulkhead to Din 1.0/2.3

    Gender: Female to Male

    Additional Info

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    Sku Length / Color Weight
    115641-12G-6INCH 6 Inch / Black 0.15 lb
    115641-12G-1 1ft / Black 0.17 lb
    115641-12G-18INCH 18 Inch / Black 0.2 lb
    115641-12G-2 2ft / Black 0.25 lb
    115641-12G-3 3ft / Black 0.3 lb
