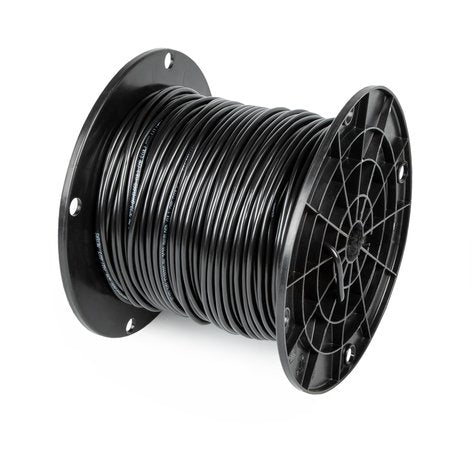

Belden 9451 22 AWG 2C Mic Line Instrument Cable Beldfoil Shield

• Conductor Count: 1 PAIR

• Conductor Material: TINNED COPPER

• Conductor Size: 22 AWG (AMERICAN WIRE GAUGE)

• Conductor Type: STRANDED CONDUCTOR

• Fire Rating: GENERAL PURPOSE

• Impedance: 45 OHM NOMINAL IMPEDANCE

• Insulation Material: PP-POLYPROPYLENE

• Jacket Color: Black (SLATE)

• Jacket Material: PVC-POLYVINYL CHLORIDE

• NEC Rating: UL LISTED ART 800

• RoHS Compliant: YES

• Screen/Shield Type: FOIL SHIELDED - ALUM/MYLAR

• Screen/Shield: YES

• Shield Construction: OVERALL SHIELD & DRAIN

• Temperature Rating: 75 DEGREES CENTIGRADE

• UL Style: UL LSTED WIRE MISC.

• Voltage Rating: 300 VOLTS AC

Product Specs

Cable type: 22-2 PVC
