Belden 4694R 12G-SDI 4K Ultra-High-Definition BNC Right Angle to Right Angle

Brand: Custom Cable Connection      SKU: 115739-1WH

Length
Color
White
Black
Red
Blue
Purple
  • Belden's 4694R RG6 cable is a 12 GHz, 4K UHD precision video coaxial cable. 12G-SDI coaxial cable maximizes 4K signal transmission distance on a single coax, minimizing weight and space compared to dual- or quad-link configurations. Single link runs of Belden 4694R are capable of driving the12G-SDI signal up to 257 feet, 6G-SDI up to 374 feet and 3G-SDI up to 686 feet.

    Features:
    • Belden 4694R BNC Male 12 GHz RG-6 crimp style connectors featuring a polished nickel body with brass/gold plated contacts.
    • 12GHz Coax, 4K UHD Precision Video Cable, RG 6, 75 Ohm
    • 18 AWG solid .040" silver plated copper conductor
    • Gas-injected foam HDPE insulation, Duofoil® bonded to core + tinned copper braid shield (95% coverage)
    • Transmission rates of 12G-SDI signals up to 257 feet, 6G-SDI up to 374 feet and 3G-SDI up to 686 feet.

      As 12G / 4K UHD continues to shape the landscape of broadcast TV, sports, live events and commercial production workflows, Belden 4694R coaxial cable delivers effective transmission of 12G-SDI signals up to 257 feet, 6G-SDI up to 374 feet and 3G-SDI up to 686 feet. Utilizing Belden 4694R coaxial, these BNC cables are the right choice to future-proof new facility installs in studios and broadcast towers as well as outside broadcast interface applications. Belden 4694R maximizes 4K transmission distance over a single coax while minimizing space and weight compared to multi-link solutions. The awe-inspiring images of 4K now can be transmitted in just about any environment; classrooms, broadcast vans & trucks, ENG camera crews, churches and especially home theater enthusiasts. Belden 4694R cable delivers true 4K UHD right in your living room, schoolroom or boardroom. Wherever you need crisp, crystal clear Ultra High Definition detail the Belden 4694R cable will deliver.
    • 75 Ohm Video Cable
    • BNC Right Angle to BNC Right Angle

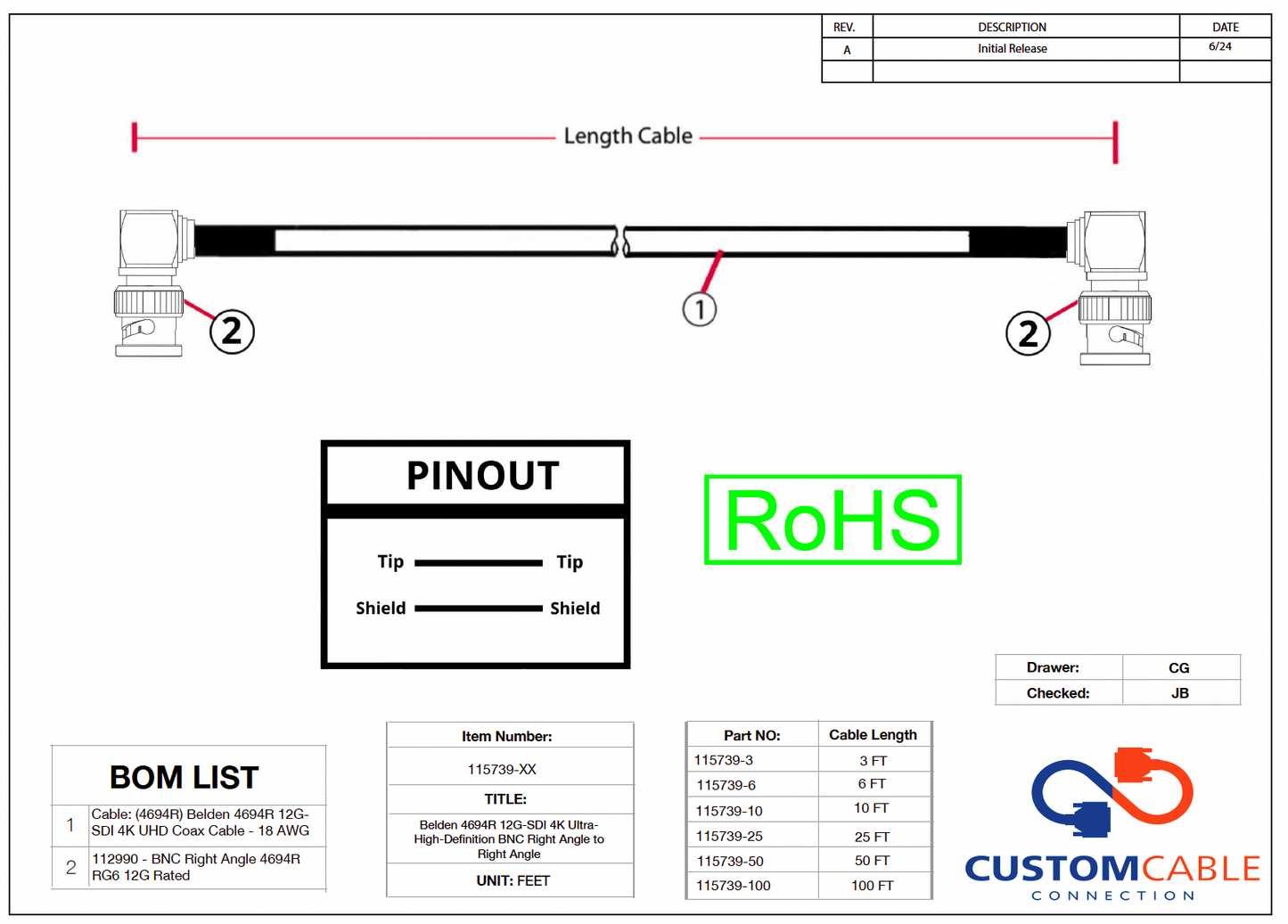

    Product Specs

    Cable type: 12G Belden 4694R

    Connector type: BNC Right Angle to Right Angle

    Gender: Male to Male

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Length / Color Weight
      115739-1WH 1ft / White 0.23 lb
      115739-1 1ft / Black 0.23 lb
      115739-1RD 1ft / Red 0.23 lb
      115739-1BL 1ft / Blue 0.23 lb
      115739-1PUR 1ft / Purple 0.23 lb
      115739-2WH 2ft / White 0.25 lb
      115739-2 2ft / Black 0.25 lb
      115739-2RD 2ft / Red 0.25 lb
      115739-2BL 2ft / Blue 0.25 lb
      115739-2PUR 2ft / Purple 0.25 lb
      115739-3WH 3ft / White 0.3 lb
      115739-3 3ft / Black 0.3 lb
      115739-3RD 3ft / Red 0.3 lb
      115739-3BL 3ft / Blue 0.3 lb
      115739-3PUR 3ft / Purple 0.3 lb
      115739-6WH 6ft / White 0.31 lb
      115739-6 6ft / Black 0.31 lb
      115739-6RD 6ft / Red 0.31 lb
      115739-6BL 6ft / Blue 0.31 lb
      115739-6PUR 6ft / Purple 0.31 lb
      115739-10WH 10ft / White 0.35 lb
      115739-10 10ft / Black 0.35 lb
      115739-10RD 10ft / Red 0.35 lb
      115739-10BL 10ft / Blue 0.35 lb
      115739-10PUR 10ft / Purple 0.35 lb
      115739-12WH 12ft / White 0.5 lb
      115739-12 12ft / Black 0.5 lb
      115739-12RD 12ft / Red 0.5 lb
      115739-12BL 12ft / Blue 0.5 lb
      115739-12PUR 12ft / Purple 0.5 lb
      115739-25WH 25ft / White 2.5 lb
      115739-25 25ft / Black 2.5 lb
      115739-25RD 25ft / Red 2.5 lb
      115739-25BL 25ft / Blue 2.5 lb
      115739-25PUR 25ft / Purple 2.5 lb
      115739-50WH 50ft / White 4.0 lb
      115739-50 50ft / Black 4.0 lb
      115739-50RD 50ft / Red 4.0 lb
      115739-50BL 50ft / Blue 4.0 lb
      115739-50PUR 50ft / Purple 4.0 lb
      115739-100WH 100ft / White 8.0 lb
      115739-100 100ft / Black 8.0 lb
      115739-100RD 100ft / Red 8.0 lb
      115739-100BL 100ft / Blue 8.0 lb
      115739-100PUR 100ft / Purple 8.0 lb
      115739-150WH 150ft / White 10.0 lb
      115739-150 150ft / Black 10.0 lb
      115739-150RD 150ft / Red 10.0 lb
      115739-150BL 150ft / Blue 10.0 lb
      115739-150PUR 150ft / Purple 10.0 lb
      115739-200WH 200ft / White 12.0 lb
      115739-200 200ft / Black 12.0 lb
      115739-200RD 200ft / Red 12.0 lb
      115739-200BL 200ft / Blue 12.0 lb
      115739-200PUR 200ft / Purple 12.0 lb
      115739-250WH 250ft / White 14.0 lb
      115739-250 250ft / Black 14.0 lb
      115739-250RD 250ft / Red 14.0 lb
      115739-250BL 250ft / Blue 14.0 lb
      115739-250PUR 250ft / Purple 14.0 lb
      115739-300WH 300ft / White 16.0 lb
      115739-300 300ft / Black 16.0 lb
      115739-300RD 300ft / Red 16.0 lb
      115739-300BL 300ft / Blue 16.0 lb
      115739-300PUR 300ft / Purple 16.0 lb
