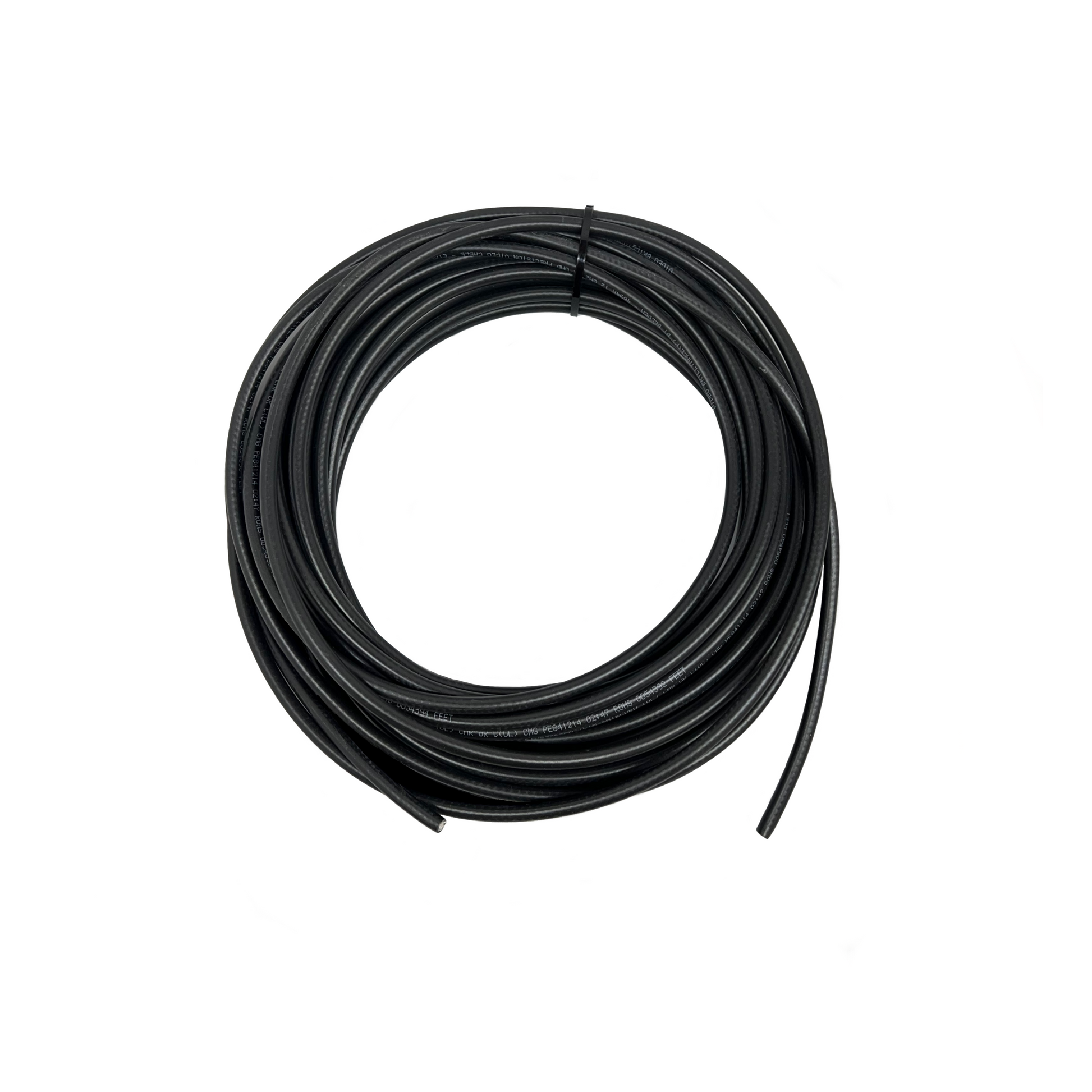

Belden 4694R 12G-SDI 4K UHD Black Coax Cable - 18 AWG - 1000 foot

Brand: Belden      SKU: 4694R-1000

Length
Color
Black

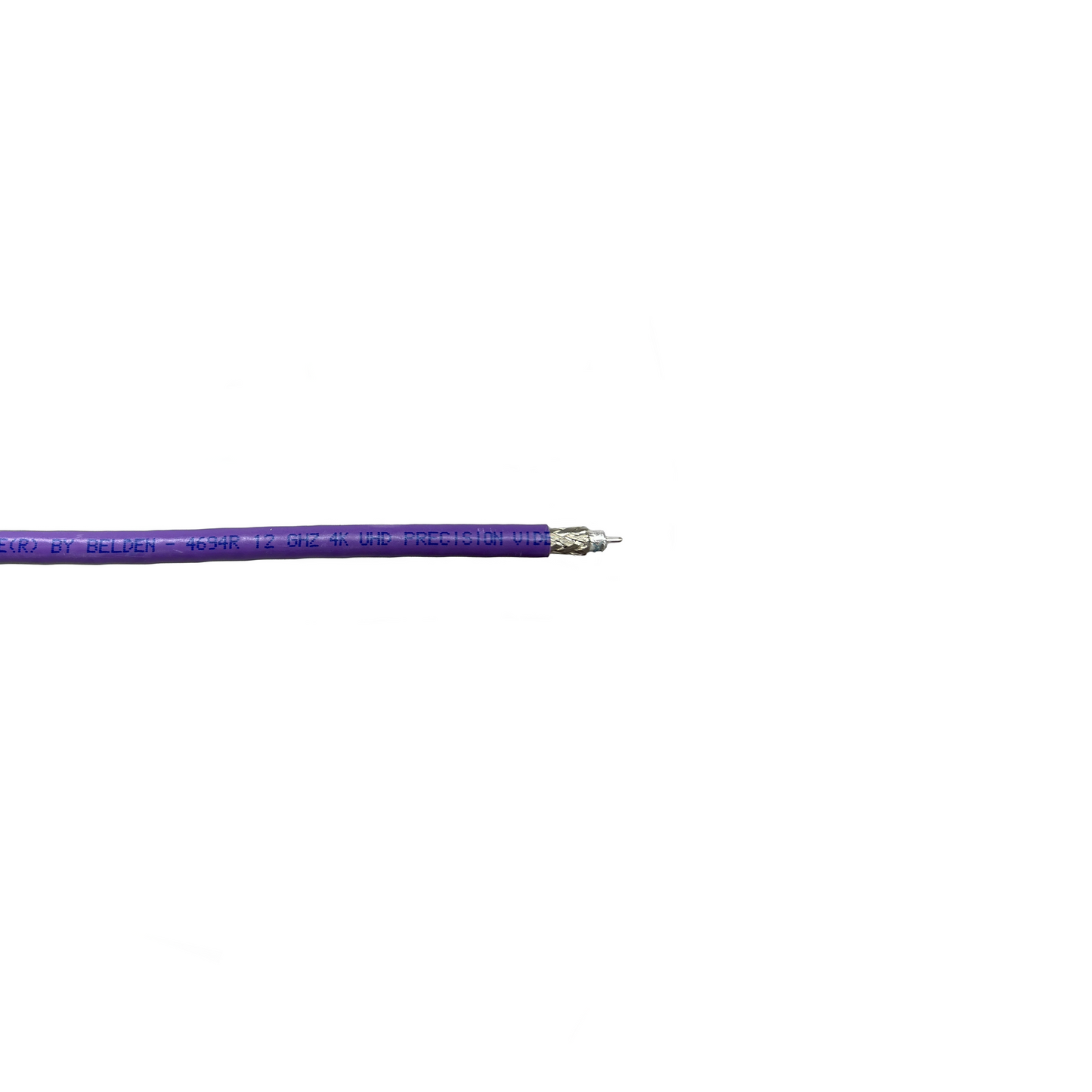

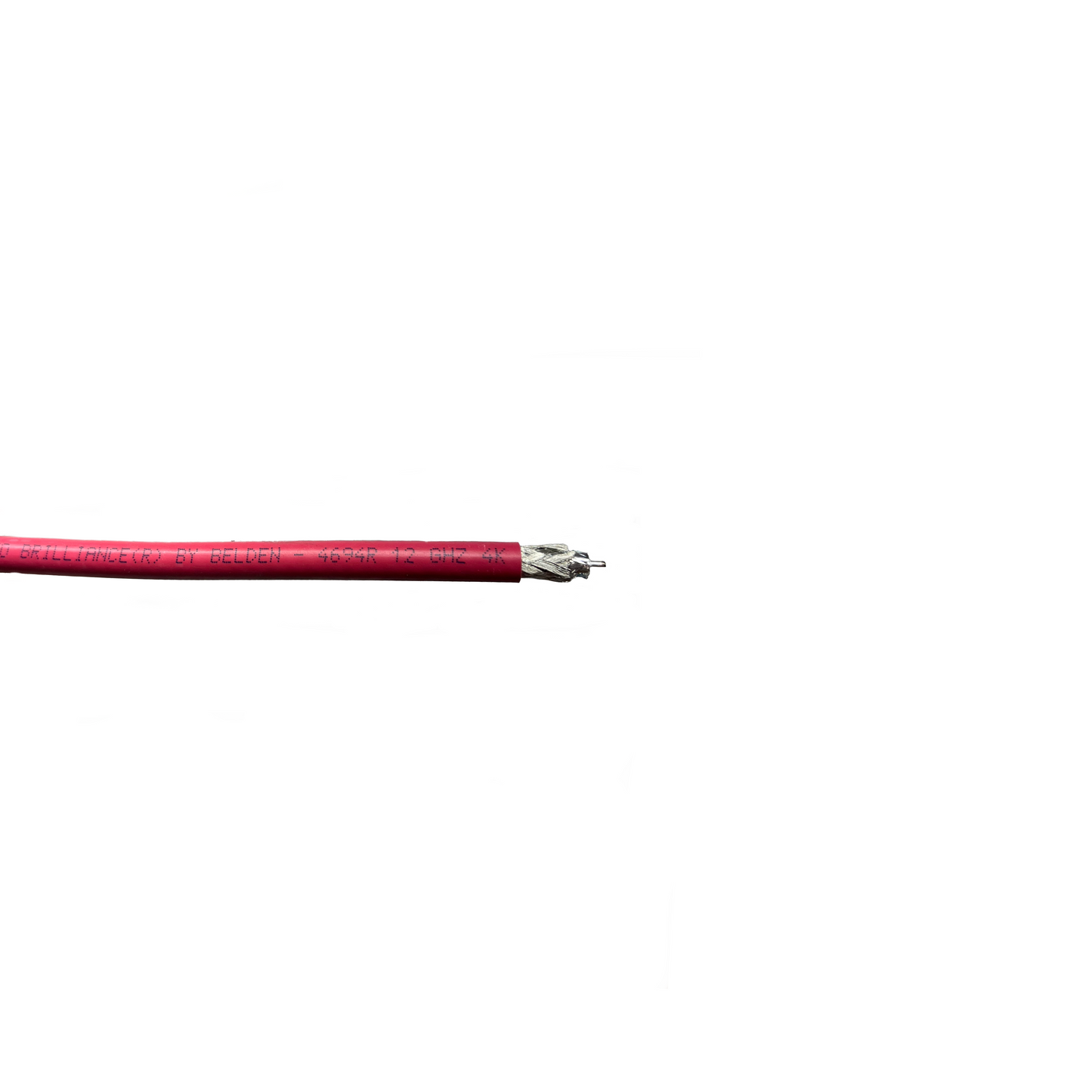

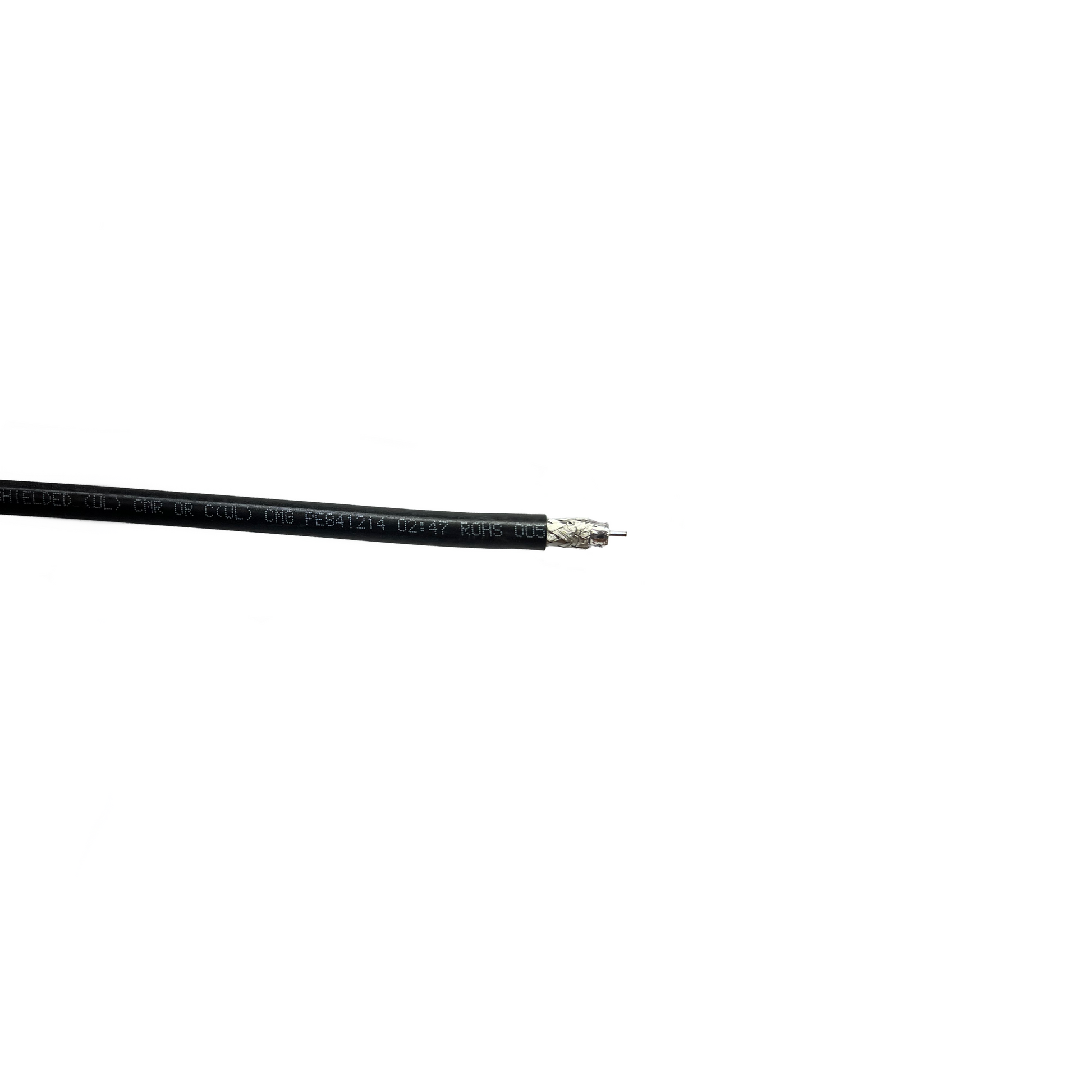

  • Belden's 4694R RG6 cable is a 12 GHz, 4K UHD precision video coaxial cable. 12G-SDI coaxial cable maximizes 4K signal transmission distance on a single coax, minimizing weight and space compared to dual- or quad-link configurations. Single link runs of Belden 4694R are capable of driving the 12G-SDI signal up to 258 feet (3G up to 548 feet).

    Belden 4694R 12G-SDI cables guarantee a 15dB RL limit from 4.5 to 12 GHz for 8-11 dB headroom against the SMPTE limit. The Inner foil bonded to the core of 4694R 12G-SDI cable makes it easier installation with onepiece compression connectors.

    Features: 12G-SDI cables guaranteed 15dB RL limit from 4.5 to 12 GHz for 8-11 dB headroom against SMPTE limit Inner foil bonded to the core on 12G-SDI cables for easier installation with onepiece compression connectors One-piece compression connectors simplify and speed installation

    Physical Characteristics
    • # Coax: 1
    • AWG: 18
    • Stranding: Solid
    • Conductor Material: Silver Plated Copper
    • Dia. (in.): 0.040
    • Insulation Material/ Diameter (in.): Gas-injected FHDPE - Foam High Density Polyethylene / .180"
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Overall Nominal Diameter: 0.274 in.

    Product Specs

    Cable type: RG6, 4694R
