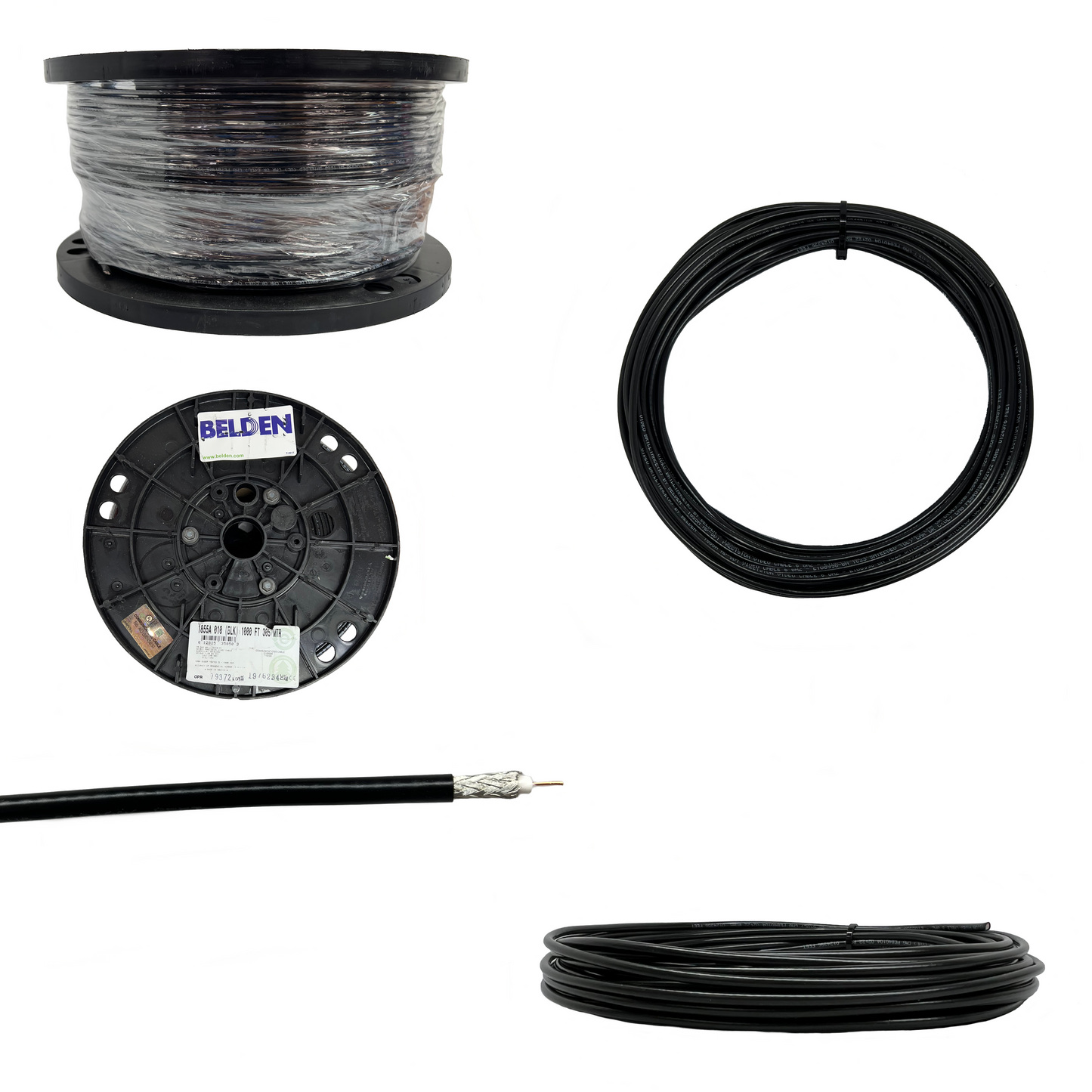

Belden 1855A 6G-SDI Coax Cable - 23 AWG - Mini RG59

Brand: Belden      SKU: 1855A

  • Belden 1855A Sub Miniature Video Coax 23 AWG is a precision broadcast video cable for analog and digital signals. It can be used for narrow-band composite through wide-band SDI transmissions.

    Stranding is solid and the conductor is bare copper. Insulation material is gas-injected foam high density polyethylene and the outer shield is of two layers, with layer 1 made of aluminum foil-polyester tape-aluminum foil and featuring 100% coverage and layer 2 made of tinned copper with 95% coverage.

    Max pull tension is at 36 lbs and bend radius at 1.5". Impedance is 75 Ohm and overall diameter .159". Ten different colors are available to choose from, with black exclusively offering outdoor and aerial suitability.

    • Sub Miniature Video Coax Cable
    • 23 AWG / 1000 ft
    • For Composite through SDI Transmissions
    • 36 lb Max Pull Tension
    • Diameter: .102" (.26 cm)

    Product Specs

    Cable type: Mini RG59

    • For a custom length, call: 866-770-3207 or email:
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Barcode Length / Color Weight
      1855A 612825358503 Per Foot / Black 0.21 lb
      1855A-1K 612825358503 1000ft / Black 21.0 lb
