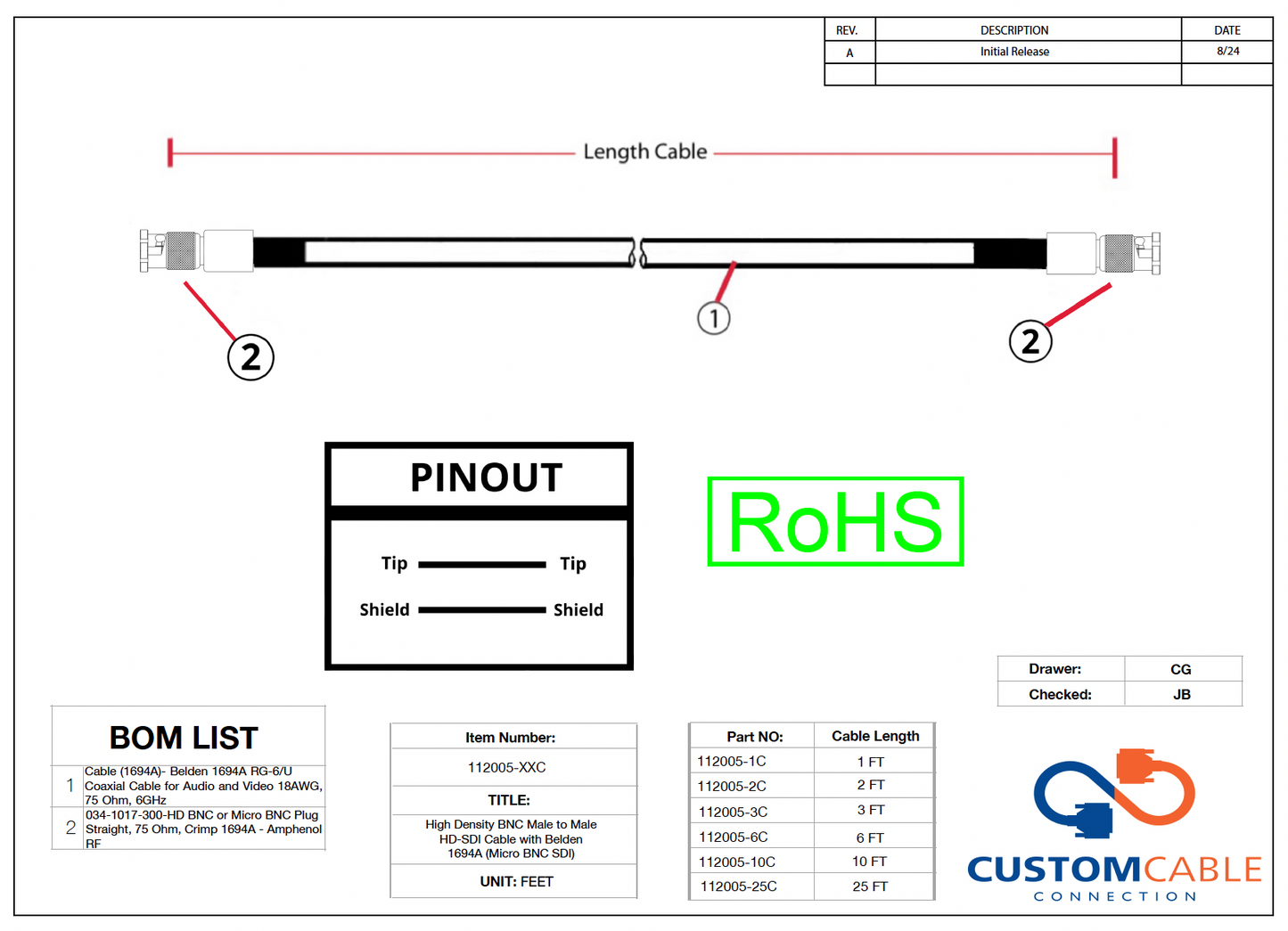

High Density BNC Male to Male HD-SDI Cable with Belden 1694A (Micro BNC SDI)

Brand: Custom Cable Connection      SKU: 112005-1C

  • The RG6 HD-SDI cables are designed for professional broadcast applications in mind. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 18AWG solid copper.

    • Amphenol Connector A: True 75 Ohm High Density BNC Male
    • Amphenol Connector B: True 75 Ohm High Density BNC Male
    • Number of Coax: 1
    • RG Type: 6/U
    • AWG: 18
    • Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
    • Outer Shield Material Trade Name: Duofoil®

      One of the distinct advantages of the HD-BNC is its lack of variable return loss and mechanical bonding commonly found with mini-BNC and DIN 1.0 / 2.3 connectors. The HD-BNC connector meet or exceeds SMPTE 292M and SMPTE 424M specifications for return loss.

    Product Specs

    Cable type: Belden 1694A

    Connector type: HD BNC to HD BNC

    Gender: Male to Male

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Barcode Length / Color Weight
      112005-1C 810105474015 1ft / Black 0.2 lb
      112005-2C 810105474039 2ft / Black 0.22 lb
      112005-3C 810105474046 3ft / Black 0.22 lb
      112005-6C 810105474060 6ft / Black 0.28 lb
      112005-10C 810105474008 10ft / Black 0.3 lb
      112005-25C 810105474022 25ft / Black 1.5 lb
      112005-50C 810105474053 50ft / Black 4.0 lb
      112005-100C 810105473995 100ft / Black 5.0 lb
