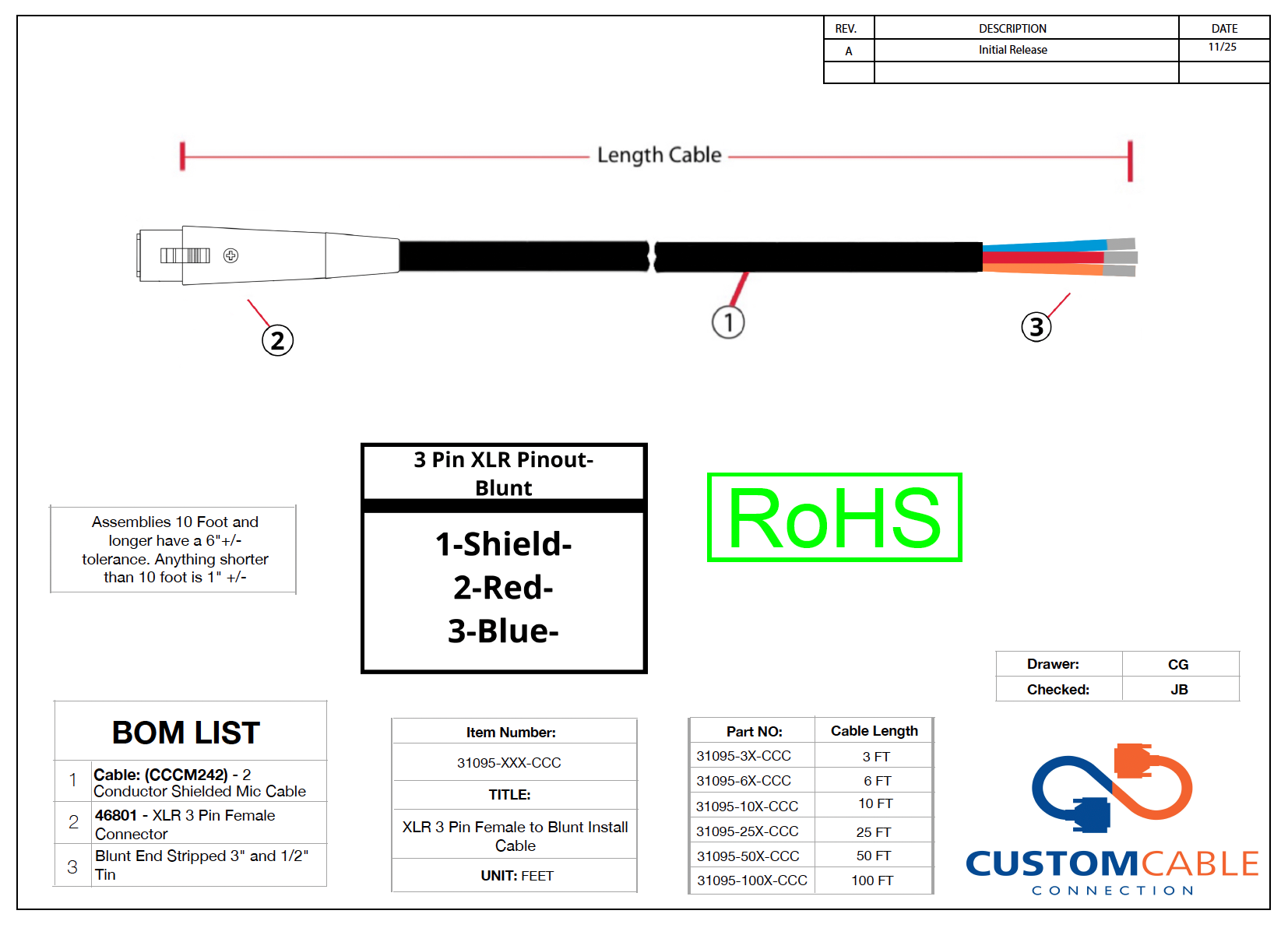

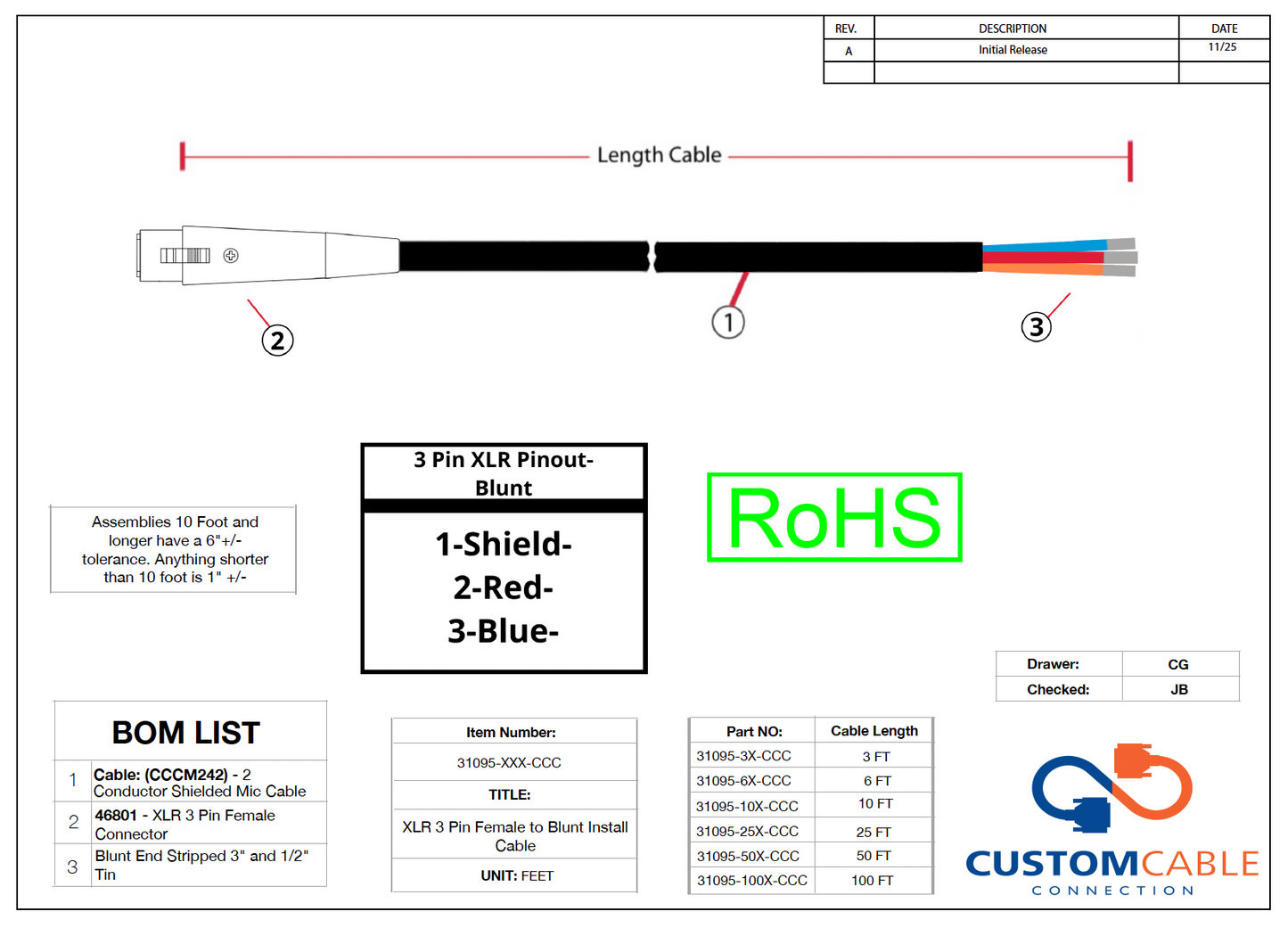

XLR 3 Pin Female to Blunt Install Cable

Brand: Custom Cable Connection      SKU: 31095-6INX-CCC

  • Custom Cable Connection microphone cables are a great choice for custom "pro" audio hookups to connect microphones to PA amplifiers, mixers or extension cords. These hookups are balanced, which helps cut out noise and hum pickup. A balanced line consists of three paths of current flow, using a pair of twisted wires with a shield covering them. The twisted pair would carry the actual audio signal while the overall shield acts as a noise absorbing barrier. The shield is connected to ground.

    • The outer jacket is constructed from a durable, ultra-flexible matte black PVC compound. O.D.: .210"
    • 24-gauge bare copper conductors
    • Connectors: XLR Female Jack to 3 Bare Wires
    • Rugged Nickel Plated XLR Connectors with Strain Relief

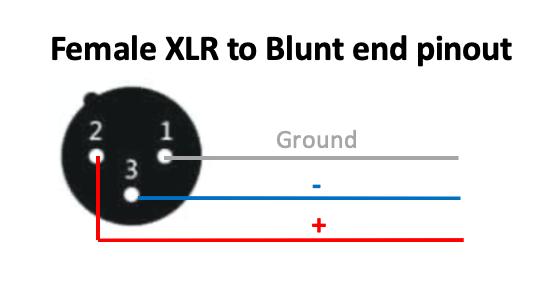

    • Pinout
    • Pin 1- Shield
    • Pin 2- Red
    • Pin 3- Blue

    Product Specs

    Cable type: 24-2 Audio

    Connector type: XLR to Blunt

    Gender: Female to blunt

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Length / Color Weight
      31095-6INX-CCC 6 Inch / Black 0.25 lb
      31095-1X-CCC 1ft / Black 0.45 lb
      31095-3X-CCC 3ft / Black 0.15 lb
      31095-6X-CCC 6ft / Black 0.3 lb
      31095-10X-CCC 10ft / Black 1.0 lb
      31095-15X-CCC 15ft / Black 2.5 lb
      31095-25X-CCC 25ft / Black 2.0 lb
      31095-50X-CCC 50ft / Black 5.0 lb
      31095-75X-CCC 75ft / Black 5.5 lb
      31095-100X-CCC 100ft / Black 6.0 lb
      31095-150X-CCC 150ft / Black 8.0 lb
      31095-200X-CCC 200ft / Black 10.0 lb
      31095-250X-CCC 250ft / Black 12.0 lb
