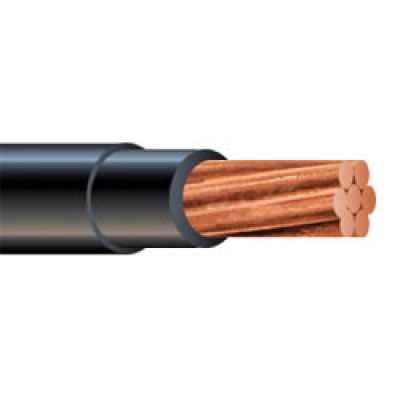

THHN Cable, 6 AWG, 19 Strand, 600V, Annealed Copper, PVC Insulation, Nylon Jacket

Applications:

6 AWG THHN/THWN-2 building wire is intended for general purpose applications as defined by the National Electrical Code (NEC). 6 AWG THHN-THWN-2 is permitted for new construction or rewiring for 600-volt applications. Applications requiring Type THHN or THWN-2, the conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C in oil or coolants. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations. Most common building wire used often on sub-panels, hot tubs & jacuzzis.

Specifications

Size: 6 AWG

Number of Strands: 19

Cross Section Area: 13.3 mm2

PVC Insulation Thickness (Conductor): 0.760 mm / 0.030 inches

Nylon Jacket Thickness: 0.130 mm / 0.005 inches

Outside Diameter: 0.25 inches

Weight: 0.11 lbs per ft

Allowable Ampacity: 55 Amps at 60ºC / 65 Amps at 75ºC / 75 Amps at 90ºC
