5-Pin XLR DMX AES/EBU Digital Audio/Data Mic Cables with Neutrik Connectors

Brand: Custom Cable Connection      SKU: 13335-1C

Length
Color
Black
  • The communications standard "DMX512" covers digital multiplexed signals. It is the most common communications standard used by lighting and related stage equipment. DMX512 provides up to 512 control "channels" per data link. Each of these channels was originally intended to control lamp dimmer levels. You can think of it as 512 sliders on a lighting console, connected to 512 light bulbs.

    Pinout
    • Pin 1: Shield (ground)
    • Pin 2: Primary Data Complement (-)
    • Pin 3: Primary Data True (+)
    • Pin 4: Optional Secondary Data Complement (-)
    • Pin 5: Optional Secondary Data 2 True (+)

      We use DMX 110ohm Digital 2 Pair Shielded 24Awg Cable.
    • Shield Coverage: 95%
    • Jacket: Matte PVC
    • O.D.: 0.29

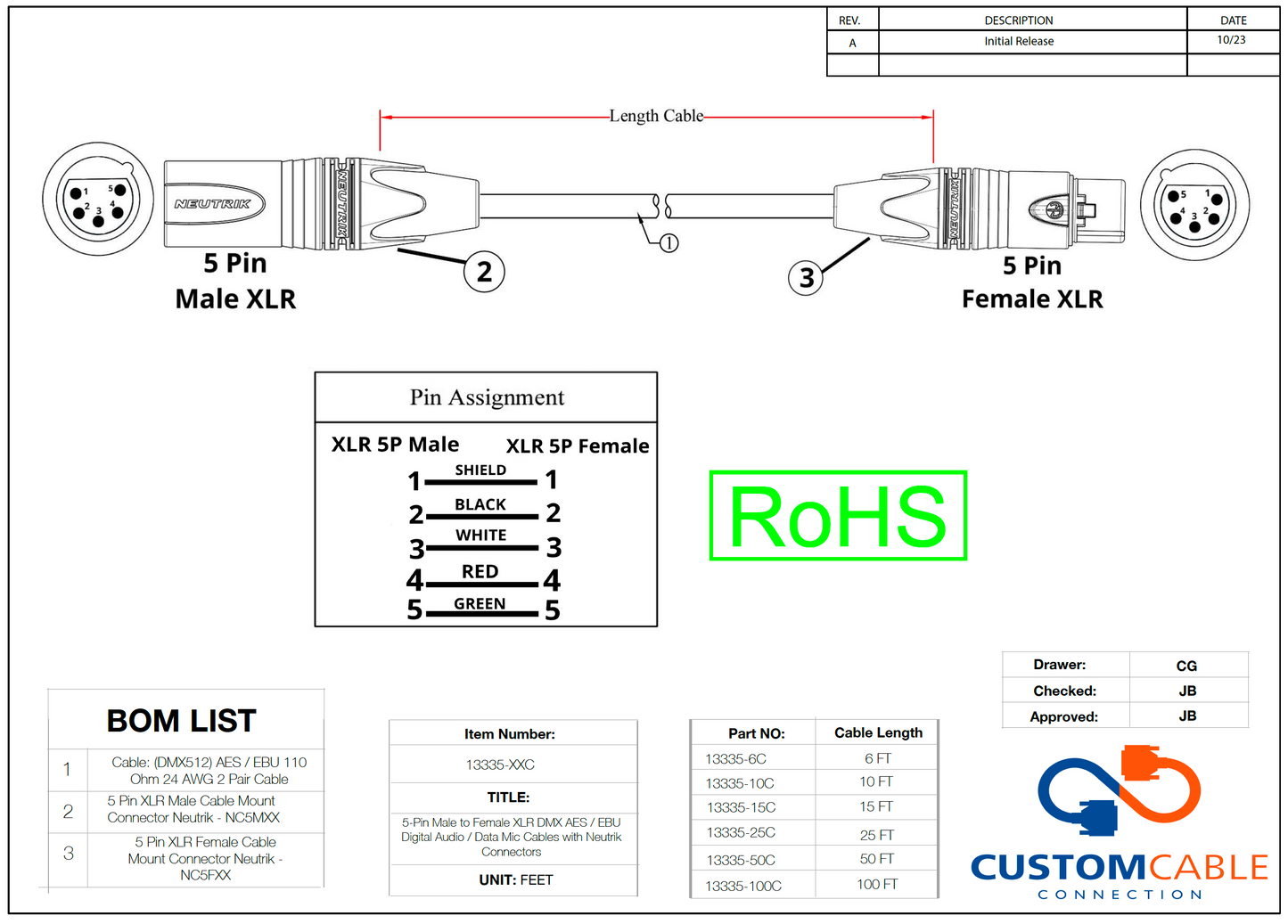

      Straight Through Pinout
    • 1- Shield
    • 2- Black
    • 3- White
    • 4- Red
    • 5- Green

    Product Specs

    Cable type: DMX 2 Pair

    Connector type: XLR 5 Pin

    Gender: Male to Female

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Length / Color Weight
      13335-1C 1ft / Black 0.25 lb
      13335-2C 2ft / Black 0.25 lb
      13335-3C 3ft / Black 0.35 lb
      13335-4C 4ft / Black 0.25 lb
      13335-5C 5ft / Black 0.5 lb
      13335-6C 6ft / Black 0.6 lb
      13335-225C 225ft / Black 12.0 lb
      13335-8C 8ft / Black 0.6 lb
      13335-10C 10ft / Black 1.0 lb
      13335-15C 15ft / Black 1.5 lb
      13335-20C 20ft / Black 2.0 lb
      13335-25C 25ft / Black 2.5 lb
      13335-30C 30ft / Black 3.0 lb
      13335-35C 35ft / Black 3.5 lb
      13335-40C 40ft / Black 3.5 lb
      13335-50C 50ft / Black 5.0 lb
      13335-60C 60ft / Black 5.5 lb
      13335-70C 70ft / Black 5.9 lb
      13335-75C 75ft / Black 6.0 lb
      13335-100C 100ft / Black 7.0 lb
      13335-120C 120ft / Black 8.0 lb
      13335-125C 125ft / Black 9.0 lb
      13335-150C 150ft / Black 11.0 lb
      13335-160C 160ft / Black 12.0 lb
      13335-200C 200ft / Black 15.0 lb
      13335-250C 250ft / Black 18.0 lb
      13335-300C 300ft / Black 19.0 lb
