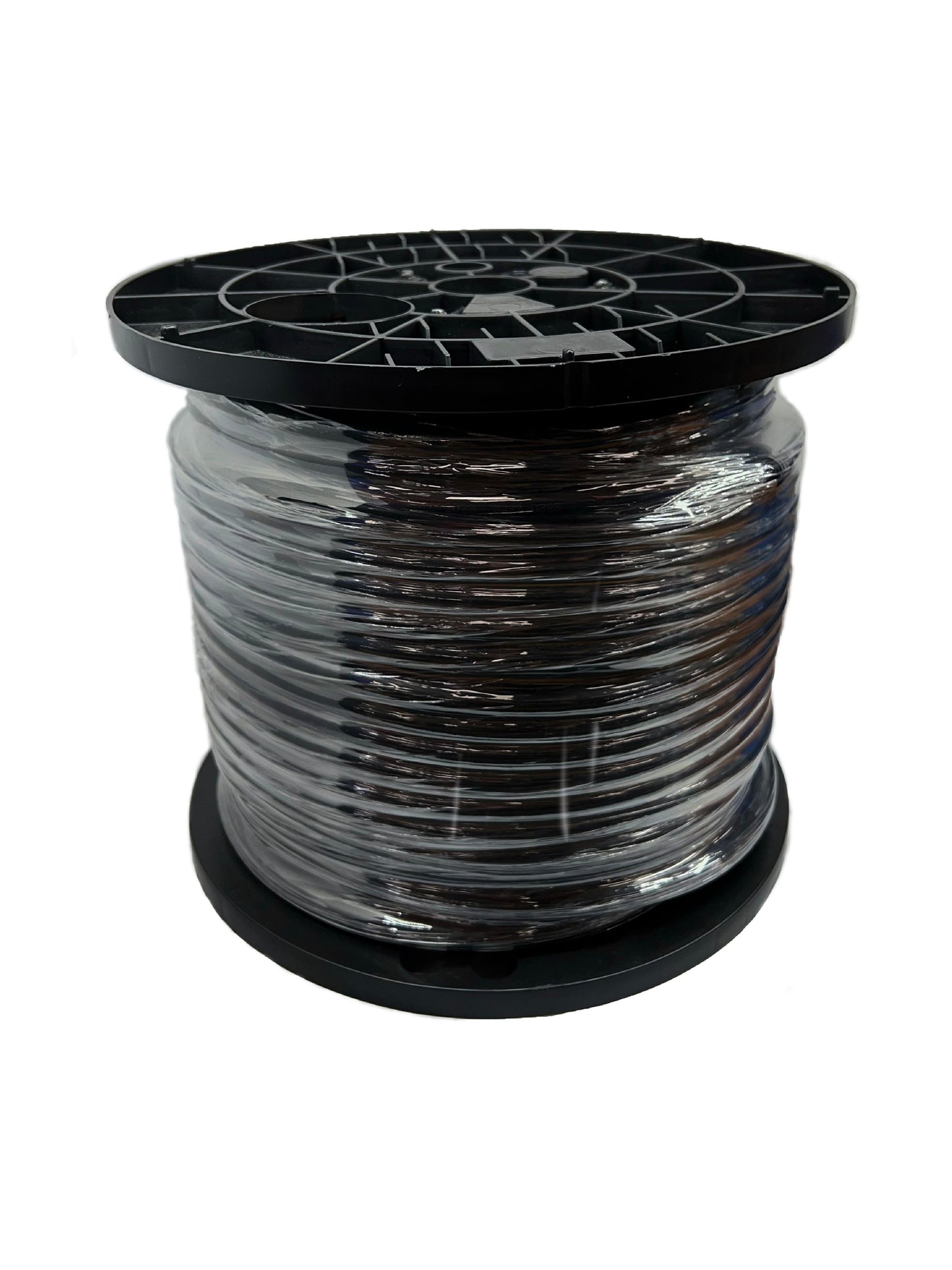

16 AWG 4 Conductor Shielded Variable Frequency Drive Cable

16 AWG 4 Conductor Shielded Variable Frequency Drive Cable

$2,350.00 USD
$2,350.00 USD
Sale Sold out
Shipping calculated at checkout.
Length
Color
  • AWG = 16
  • 4 Conductor
  • Overall Diameter = .42
  • Jacket Thickness = .045
  • 600V UL Type TC-ER / 1000V UL Type Motor Supply

    Application: Four Conductor Variable Frequency Drive Cables are primarily used with VFD’s. The four conductor construction is more effective than the three conductor version to reduce the effects of EMI interference in the event of a component failure. The cable is 600V rated and for use from -40°C to 90°C.

    Conductors: Stranded soft drawn tinned copper conductors.

    Drain(s): Stranded soft drawn tinned copper ground(s). Insulation: Cross-linked polyethylene XLPE insulation.

    Shielding: Aluminum polyester & 85% tinned copper braid.

    Jacket: Polyvinyl chloride (PVC) jacket that is sunlight, moisture, oil and abrasion resistant, and direct burial rated.

    Standards: UL 1277, Type TC-ER, Type XHHW-2 UL approved as 1000V flexible motor supply cable CSA FT-4 Vertical tray flame test CSA AWM I/II A/B singles C(UL) CIC-TC per CSA standard C22.2 No. 239 & 230 Meets IEEE 1202/UL 1685 70,000 BTU flame test Meets ICEA T-29-520 210,000 BTU flame test Suitable for use in Class I Division II hazardous locations RoHS II & REACH compliant
    • View full details

    Product Specs

    Cable Type: 16-4 Shielded VFD

    Additional Info

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    Sku Length / Color Weight
    VFD-1604-1K 1000ft / Black 145.0 lb
    VFD-1604-FT Per Foot / Black 0.5 lb
