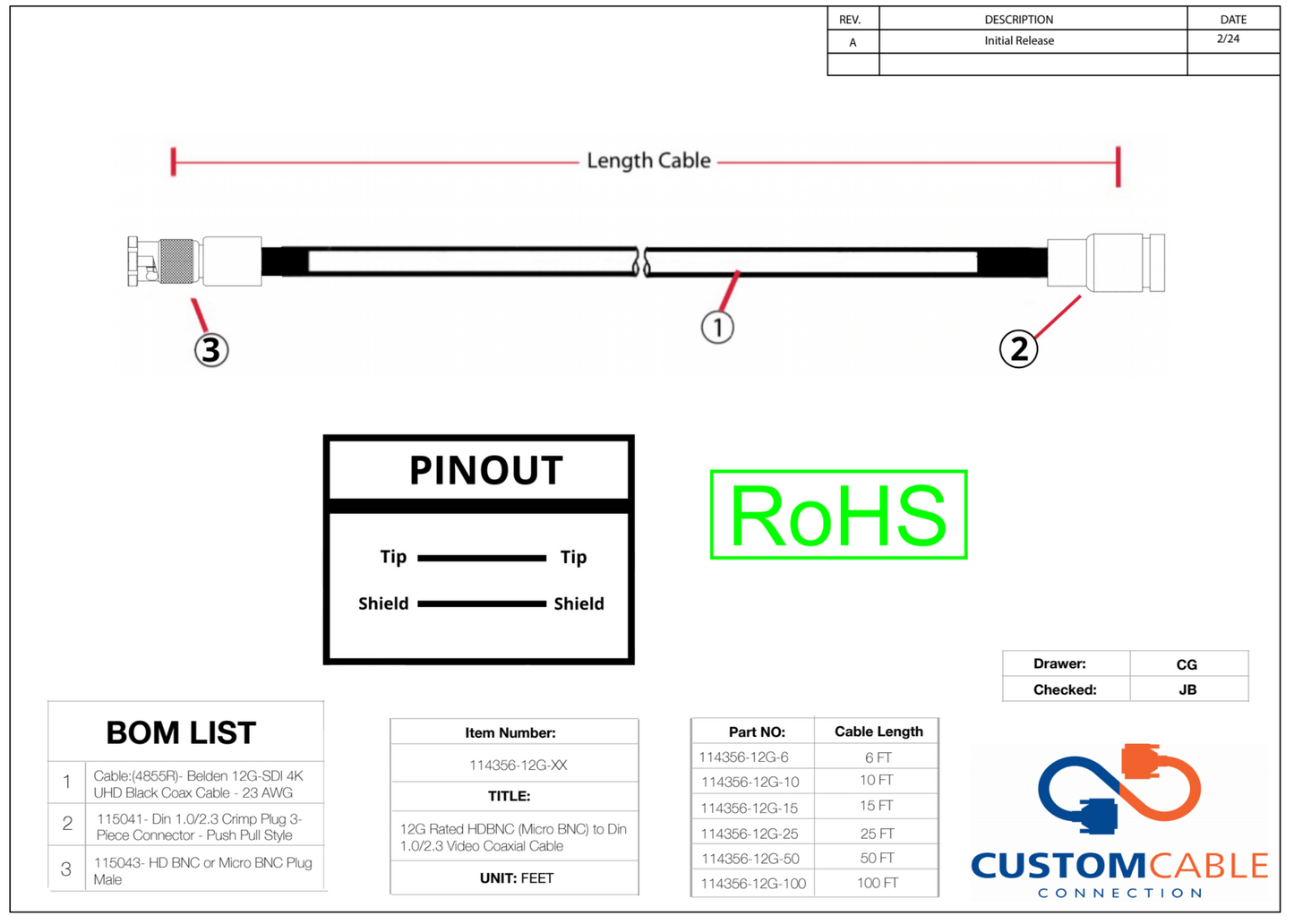

12G Rated HDBNC (Micro BNC) to Din 1.0/2.3 Video Coaxial Cable

Brand: Custom Cable Connection      SKU: 114356-12G-1

  • Belden 4855R Mini RG59 HD-SDI cables are designed for professional 12G broadcast applications. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 23AWG solid silvered copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 12 Gbps data transfer. 12000 MHz at 41.2 dB/100ft

    • Belden 4855R Cable is made in the USA
    • Supports SMPTE 259M/292M/424M Standards
    • Connector A: True 75 Ohm High Density Micro BNC Male
    • Connector B: True 75 Ohm Din 1.0/2.3 Male
    • Number of Coax: 1
    • RG Type: Mini RG59
    • AWG: 23
    • Stranding: Solid
    • Conductor Material: BC - Bare Silvered Copper
    • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
    • Outer Shield Material Trade Name: Duofoil®

      Used with Blackmagic Design, Blackmagic HyperDeck Shuttle, Red One, Atomos, and many other patch panels, CCTV devices and cameras.

    Product Specs

    Cable type: 12G Belden 4855R

    Connector type: HDBNC to Din 1.0/2.3

    Gender: Male to Male

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Barcode Length / Color Weight
      114356-12G-1 810105473711 1ft / Black 0.23 lb
      114356-12G-2 810105473728 2ft / Black 0.25 lb
      114356-12G-3 810105473735 3ft / Black 0.27 lb
      114356-12G-6 810105473742 6ft / Black 0.3 lb
      114356-12G-7 810105473759 7ft / Black 0.35 lb
      114356-12G-10 810105473766 10ft / Black 0.57 lb
      114356-12G-15 810105473773 15ft / Black 0.75 lb
      114356-12G-30 30ft / Black 2.0 lb
      114356-12G-50 50ft / Black 3.0 lb
