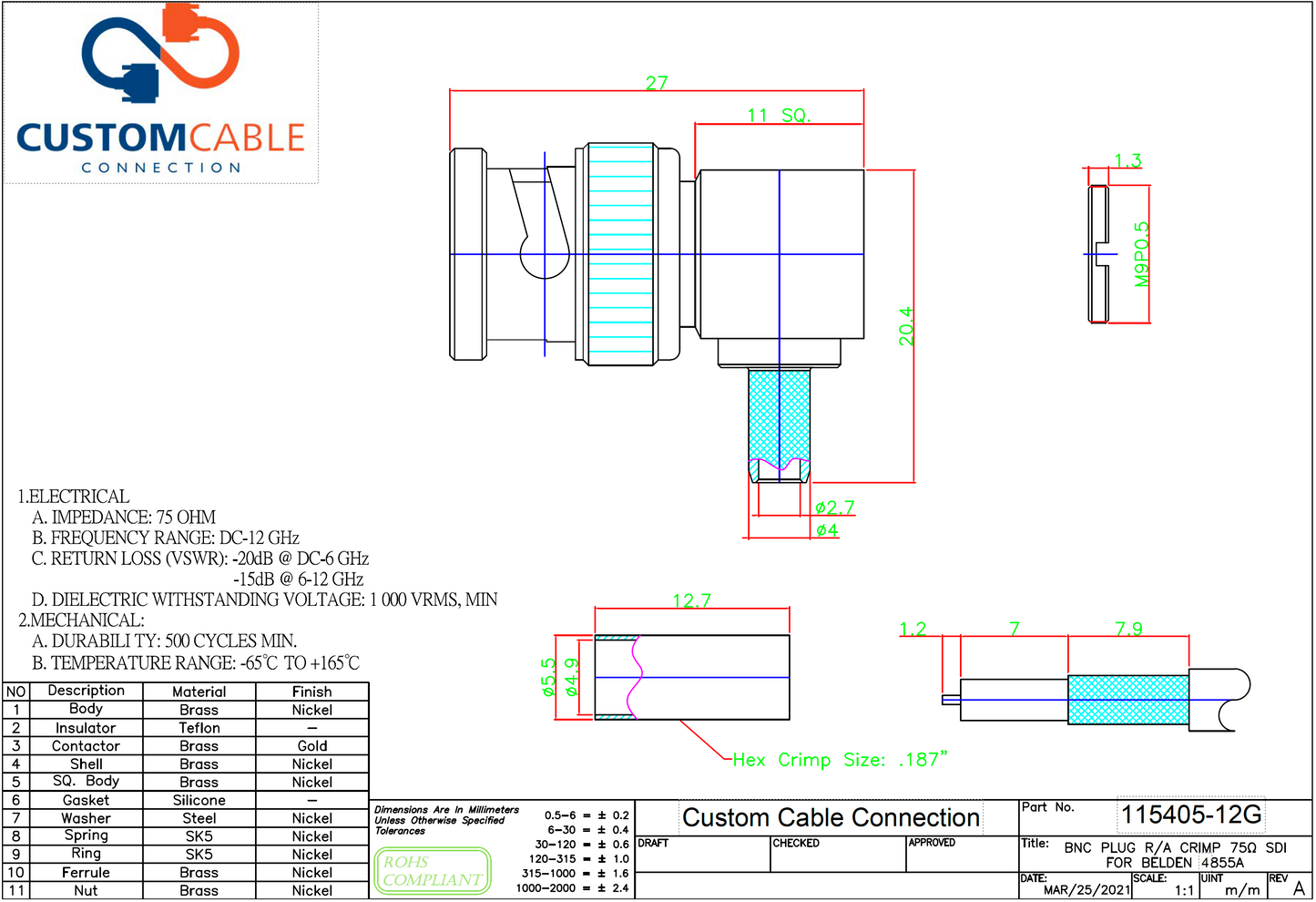

BNC Right Angle Connector for Belden 4855R - 12 GHz - 75 Ohm

• Crimp Sleeve and Solder Pin style connector

• Material and Plating: Body/Brass/Nickel

• Outer Contact/BeCu/Nickel

• Coupling Nut/Brass/Nickel

• Insulator/PTFE

• Center Contact/Brass/3u" Gold

• Electrical(75 Ω)

• Impedance: 75 Ohm

• Frequency Range: DC ~ 12 GHz

• VSWR: 1.25 max.

• Insertion Loss: ≤ 0.5 dB

• Insulator Resistance: ≥ 5 GΩ

• Center Contact Resistance: ≤ 1.5 mΩ

• Outer Contact Resistance: ≤ 1 mΩ

• Test Voltage: 1,500 V rms

• Working Voltage: 400 V rms

• Power Handling: ≤ 80 W @ 2 GHz

• Environmental

• RoHS and REACH compliant

• Certificate

• ISO 9001 IATF 16949

• Ethical Sourcing

• Conflict Minerals Reporting Template (CMRT)

Product Specs

Cable type: 4855R

Connector type: 12G BNC Right Angle

Gender: Male
