• High Density BNC Male to BNC Male HD-SDI Cable with Belden 1694A- 10 Foot
1 2

Custom Cable Connection

High Density BNC Male to BNC Male HD-SDI Cable with Belden 1694A

High Density BNC Male to BNC Male HD-SDI Cable with Belden 1694A

$33.00 USD
$33.00 USD
Sale Sold out
Shipping calculated at checkout.
Length
Color
The RG6 HD-SDI cables are designed for professional broadcast applications in mind. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 18AWG solid copper.

  • Amphenol Connector A: True 75 Ohm High Density BNC Male
  • Amphenol Connector B: True 75 Ohm BNC Male
  • Number of Coax: 1
  • RG Type: 6/U
  • AWG: 18
  • Stranding: Solid
  • Conductor Material: BC - Bare Copper
  • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
  • Outer Shield Material Trade Name: Duofoil®

    One of the distinct advantages of the HD-BNC is its lack of variable return loss and mechanical bonding commonly found with mini-BNC and DIN 1.0 / 2.3 connectors. The HD-BNC connector meet or exceeds SMPTE 292M and SMPTE 424M specifications for return loss.
    • View full details

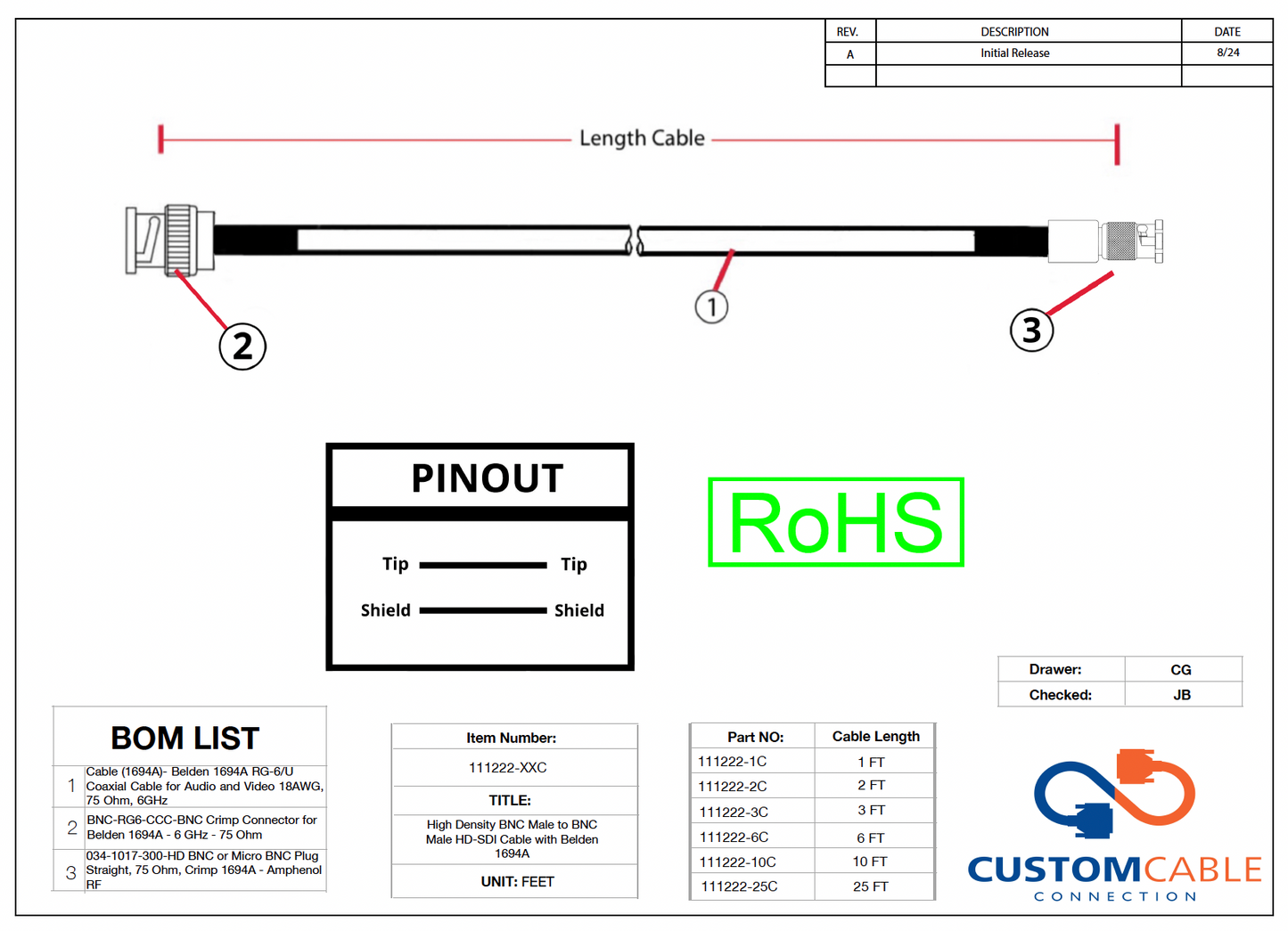

    Product Specs

    Cable Type: Belden 1694A

    Connector Type: HD BNC to BNC

    Gender: Male to Male

    Additional Info

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    Sku Barcode Length / Color Weight
    111222-1C 810105473971 1ft / Black 0.25 lb
    111222-1BL 1ft / Blue 0.25 lb
    111222-2C 810105473957 2ft / Black 0.25 lb
    111222-2BL 2ft / Blue 0.25 lb
    111222-3C 810105473940 3ft / Black 0.25 lb
    111222-3BL 3ft / Blue 0.25 lb
    111222-6C 810105473926 6ft / Black 0.3 lb
    111222-6BL 6ft / Blue 0.3 lb
    111222-10C 810105473988 10ft / Black 0.3 lb
    111222-10BL 10ft / Blue 0.3 lb
    111222-12C 12ft / Black 0.3 lb
    111222-12BL 12ft / Blue 0.3 lb
    111222-25C 810105473964 25ft / Black 1.0 lb
    111222-25BL 25ft / Blue 1.0 lb
    111222-50C 810105473933 50ft / Black 3.0 lb
    111222-50BL 50ft / Blue 3.0 lb
    111222-100C 810105473919 100ft / Black 5.0 lb
    111222-100BL 100ft / Blue 5.0 lb
