{"id":7035610988744,"title":"12G Rated BNC Female Bulkhead to Din 1.0/2.3 Belden 4855R HD-SDI Video Adapter Cables","handle":"bnc-female-bulkhead-din-1-0-2-3-12g-cables","description":"12G Rated BNC Female Bulkhead to Din 1.0/2.3 cables are designed for professional broadcast applications. Adapt your Standard BNC connections to Din 1.0/2.3 with this adapter cable. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 23 AWG solid copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 3/6/12 Gbps data transfer.

12G, UHDTV1, UHDTV2

Connector A: True 75 Ohm BNC Female Bulkhead

Connector B: True 75 Ohm Din 1.0/2.3 Male

Number of Coax: 1

RG Type: Mini RG59

AWG: 23

Stranding: Solid

Conductor Material: SC - Silvered Copper

Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene

Outer Shield Material Trade Name: Duofoil®

Used with Blackmagic Design, Blackmagic HyperDeck Shuttle, Red One, Atomos, and many other patch panels, CCTV devices and cameras.

","published_at":"2021-09-04T13:00:08-05:00","created_at":"2021-09-04T13:00:08-05:00","vendor":"Custom Cable Connection","type":"Cable","tags":["12G","12G Rated","Adapter","Audio Video Cables","BNC to DIN","Bulkhead","Cable","DIN 1.0/2.3","HD-SDI","Mini RG59","UHDTV1","UHDTV2"],"price":4870,"price_min":4870,"price_max":5249,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":40876620349640,"title":"6 Inch / Black","option1":"6 Inch","option2":"Black","option3":null,"sku":"115641-12G-6INCH","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"12G Rated BNC Female Bulkhead to Din 1.0/2.3 Belden 4855R HD-SDI Video Adapter Cables - 6 Inch / Black","public_title":"6 Inch / Black","options":["6 Inch","Black"],"price":4870,"weight":68,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40876620382408,"title":"1ft / Black","option1":"1ft","option2":"Black","option3":null,"sku":"115641-12G-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"12G Rated BNC Female Bulkhead to Din 1.0/2.3 Belden 4855R HD-SDI Video Adapter Cables - 1ft / Black","public_title":"1ft / Black","options":["1ft","Black"],"price":4980,"weight":77,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40876620415176,"title":"18 Inch / Black","option1":"18 Inch","option2":"Black","option3":null,"sku":"115641-12G-18INCH","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"12G Rated BNC Female Bulkhead to Din 1.0/2.3 Belden 4855R HD-SDI Video Adapter Cables - 18 Inch / Black","public_title":"18 Inch / Black","options":["18 Inch","Black"],"price":5030,"weight":91,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40876620447944,"title":"2ft / Black","option1":"2ft","option2":"Black","option3":null,"sku":"115641-12G-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"12G Rated BNC Female Bulkhead to Din 1.0/2.3 Belden 4855R HD-SDI Video Adapter Cables - 2ft / Black","public_title":"2ft / Black","options":["2ft","Black"],"price":5117,"weight":113,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40876620480712,"title":"3ft / Black","option1":"3ft","option2":"Black","option3":null,"sku":"115641-12G-3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"12G Rated BNC Female Bulkhead to Din 1.0/2.3 Belden 4855R HD-SDI Video Adapter Cables - 3ft / Black","public_title":"3ft / Black","options":["3ft","Black"],"price":5249,"weight":136,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["//cdn.shopify.com/s/files/1/0073/1575/0996/products/ScreenShot2021-09-04at1.32.25PM.png?v=1630780360","//cdn.shopify.com/s/files/1/0073/1575/0996/products/031-70566-12G_de8ed33b-4e9b-4717-9b2a-c1c143d6238f.jpg?v=1630780770"],"featured_image":"//cdn.shopify.com/s/files/1/0073/1575/0996/products/ScreenShot2021-09-04at1.32.25PM.png?v=1630780360","options":["Length","Color"],"media":[{"alt":null,"id":23199177801928,"position":1,"preview_image":{"aspect_ratio":1.115,"height":522,"width":582,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/ScreenShot2021-09-04at1.32.25PM.png?v=1630780360"},"aspect_ratio":1.115,"height":522,"media_type":"image","src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/ScreenShot2021-09-04at1.32.25PM.png?v=1630780360","width":582},{"alt":null,"id":23199194775752,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/031-70566-12G_de8ed33b-4e9b-4717-9b2a-c1c143d6238f.jpg?v=1630780770"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https://cdn.shopify.com/s/files/1/0073/1575/0996/products/031-70566-12G_de8ed33b-4e9b-4717-9b2a-c1c143d6238f.jpg?v=1630780770","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"12G Rated BNC Female Bulkhead to Din 1.0/2.3 cables are designed for professional broadcast applications. Adapt your Standard BNC connections to Din 1.0/2.3 with this adapter cable. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 23 AWG solid copper. This cable is 100% sweep tested and is ready to meet today’s requirements of 3/6/12 Gbps data transfer.

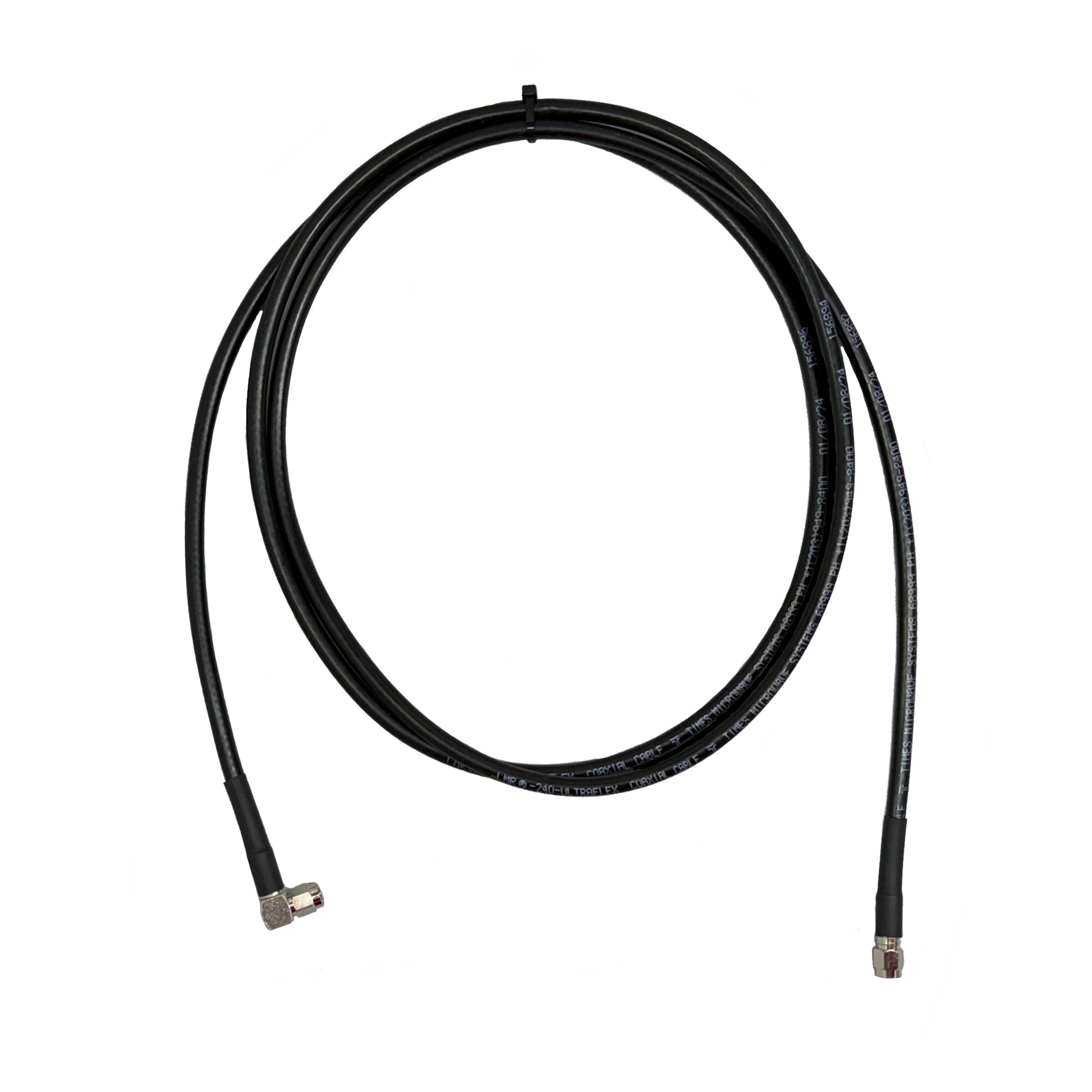

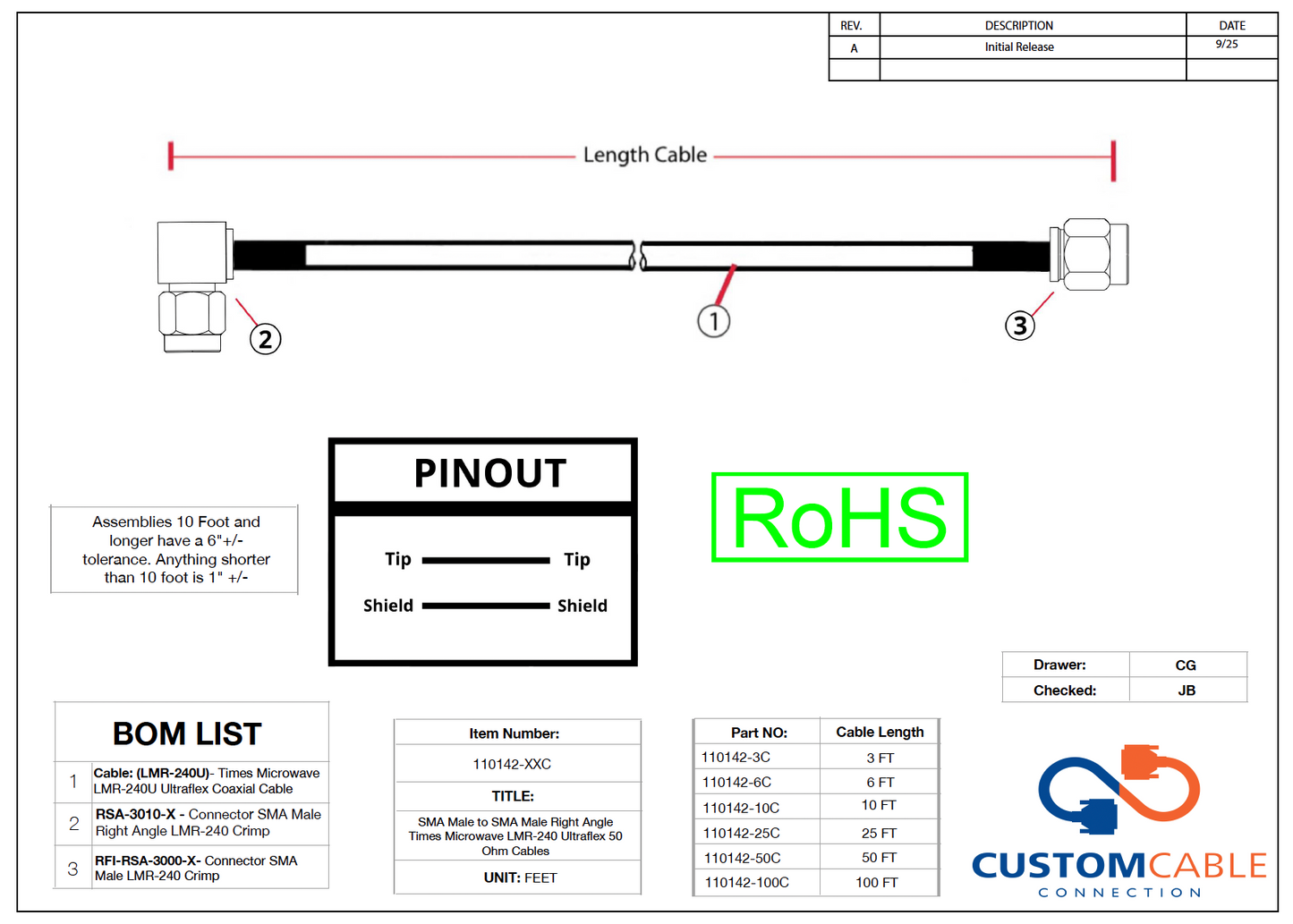

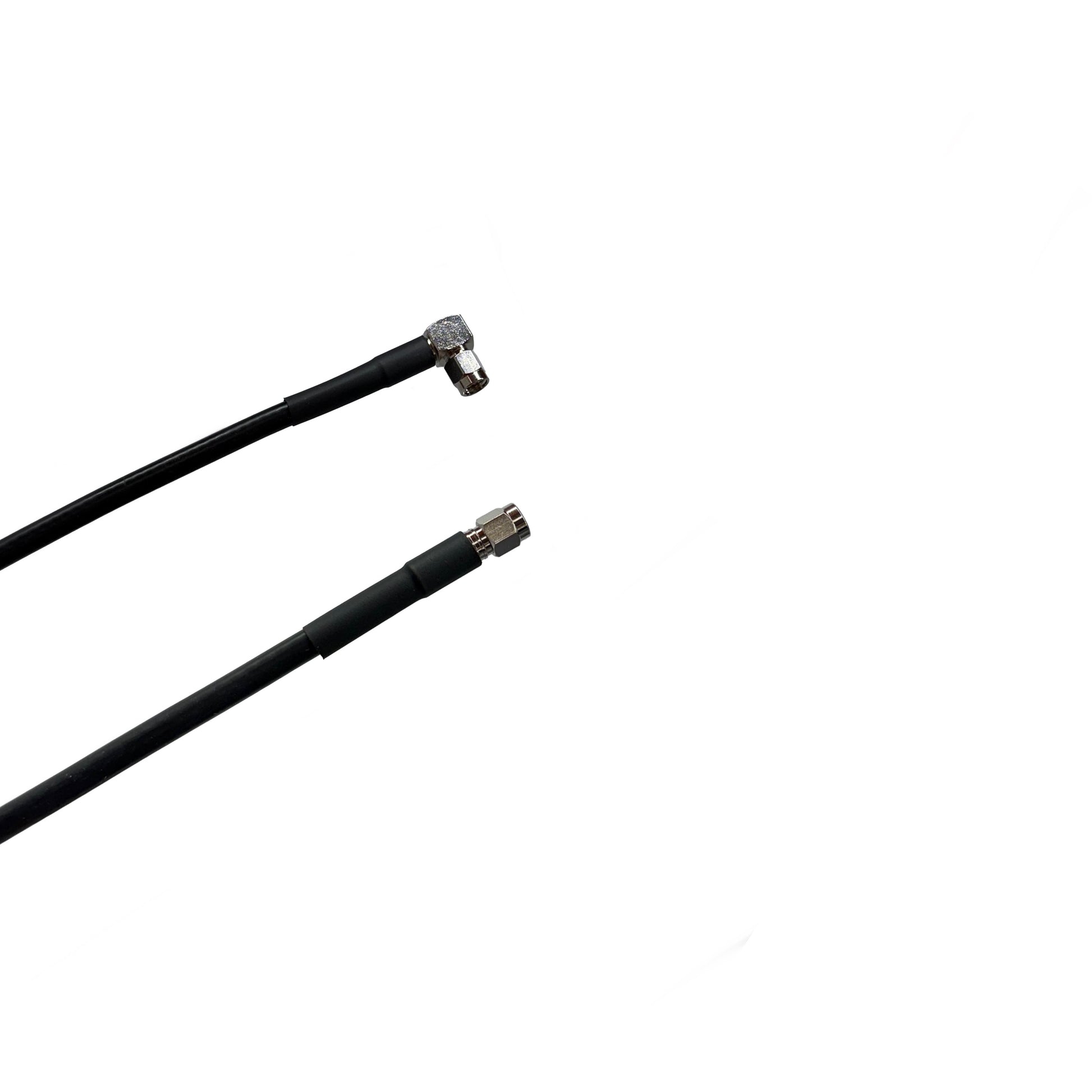

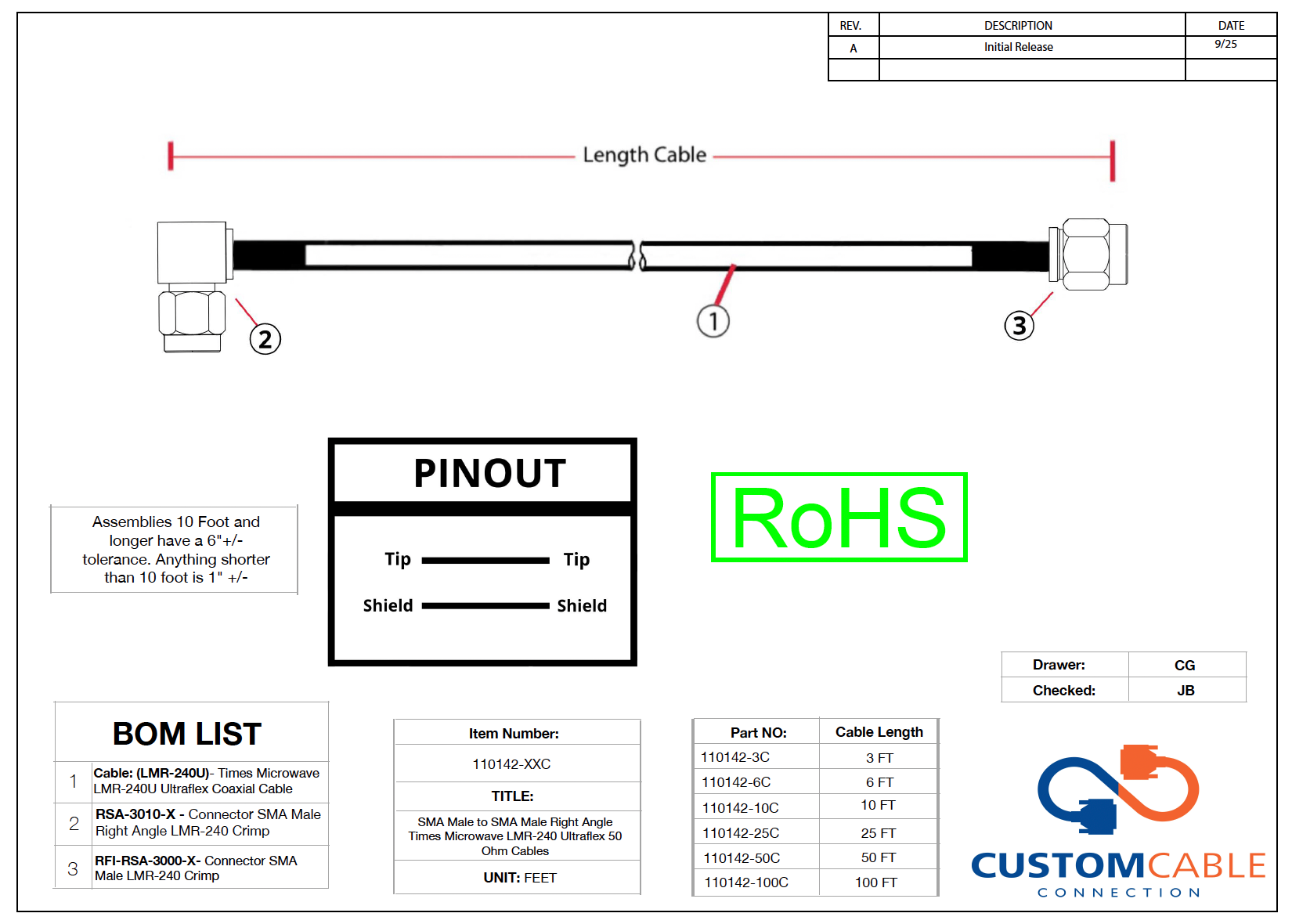

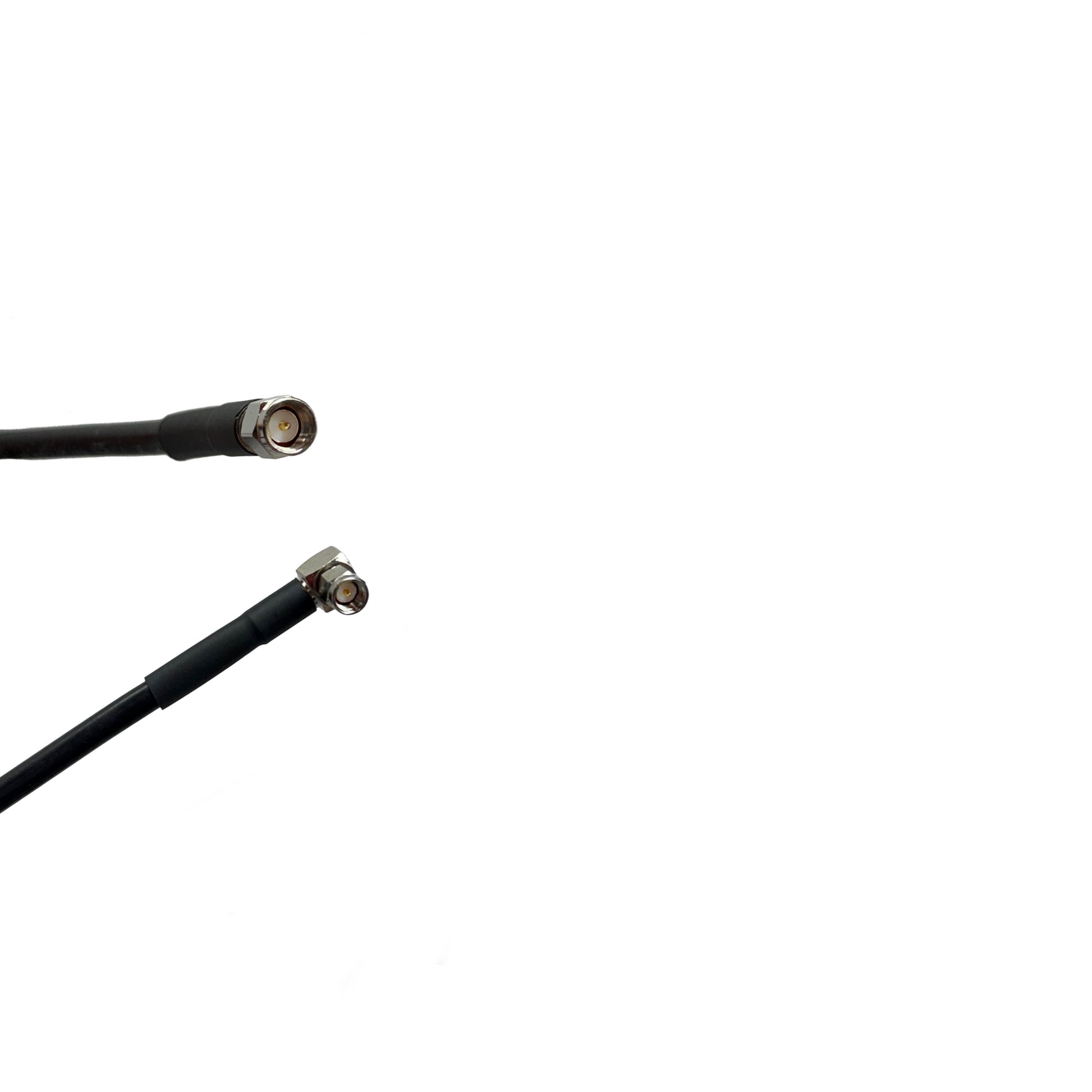

SMA Male to SMA Male Right Angle Times Microwave LMR-240 Ultraflex 50 Ohm Cables
