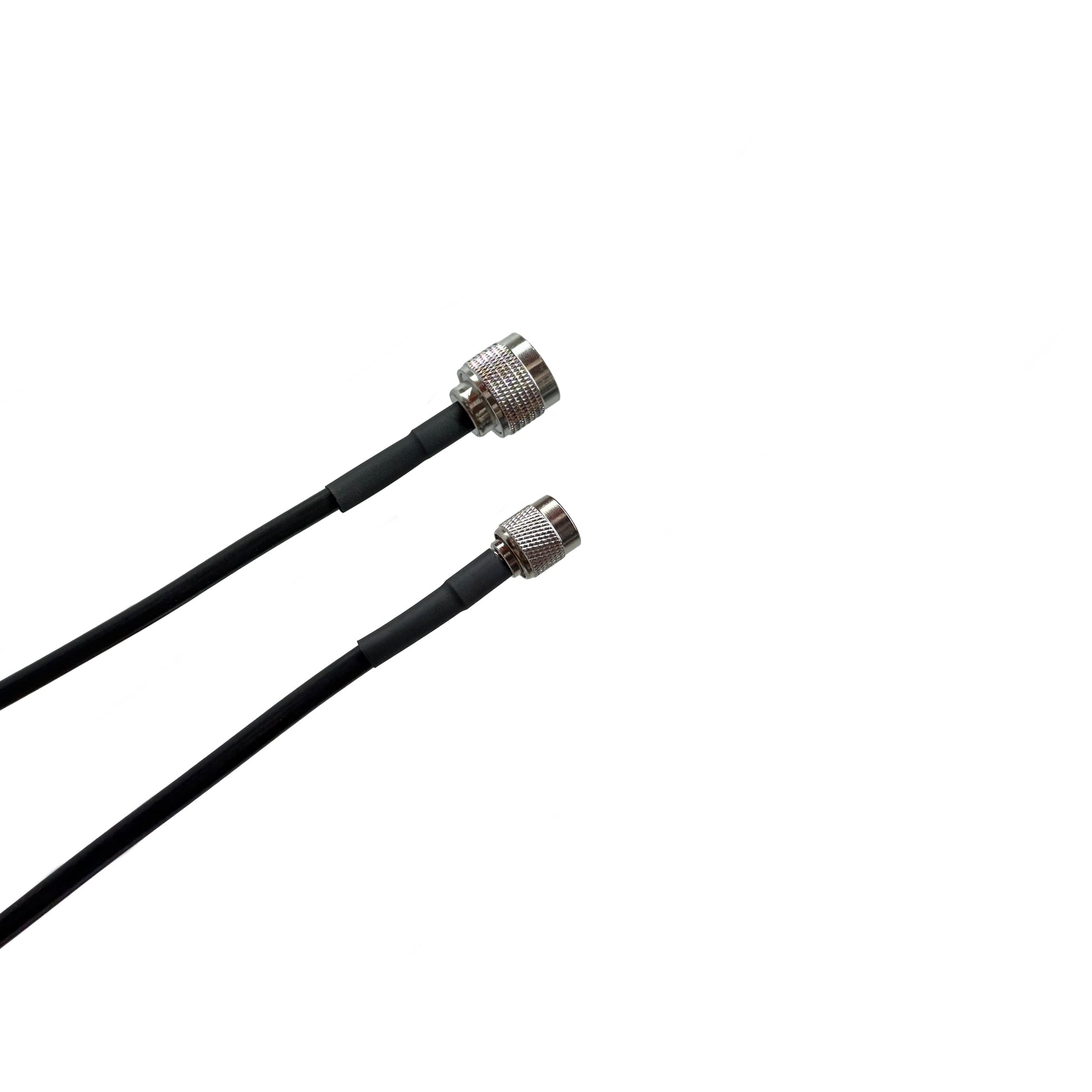

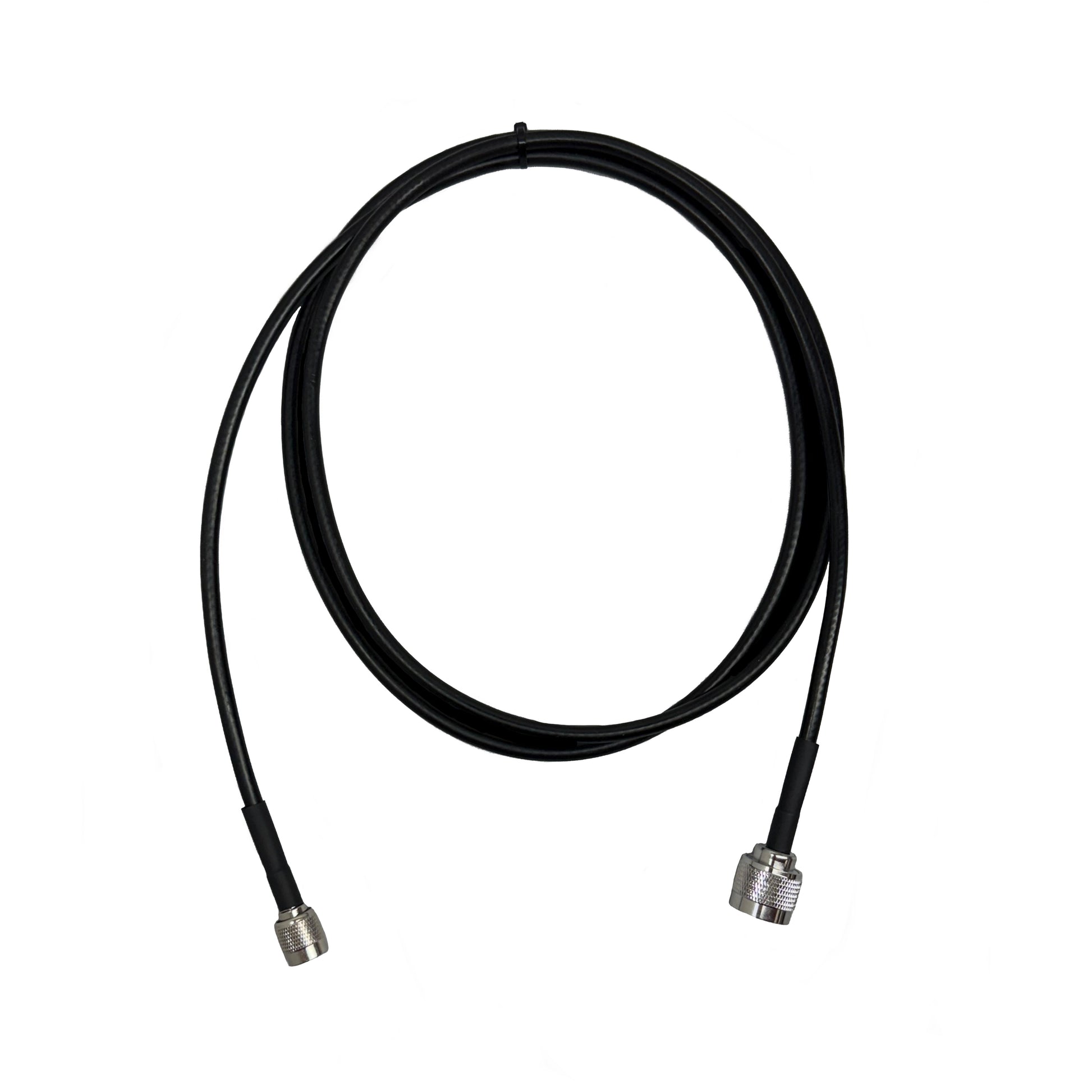

N Male to TNC Male Times Microwave LMR-240 Ultraflex Cables

Brand: Custom Cable Connection      SKU: 104209-1C

  • 50-Ohm cable assemblies using Times Microwave LMR240U series cable. Stranded Center Conductor for Maximum Flexibility. Double shielded to help prevent signal leakage & to improve the ground plane. N-Type is the most commonly used connector for wireless antennas. Relocate your current Wi-Fi antenna or add a high gain antenna to meet aesthetic needs and increase the performance of your wireless LAN network. This ultra low loss cable allows longer runs with no signal degradation. Relocating your Wi-Fi antenna to a more central location and out of an equipment closet is a simple and cost-effective solution for propagation problems.

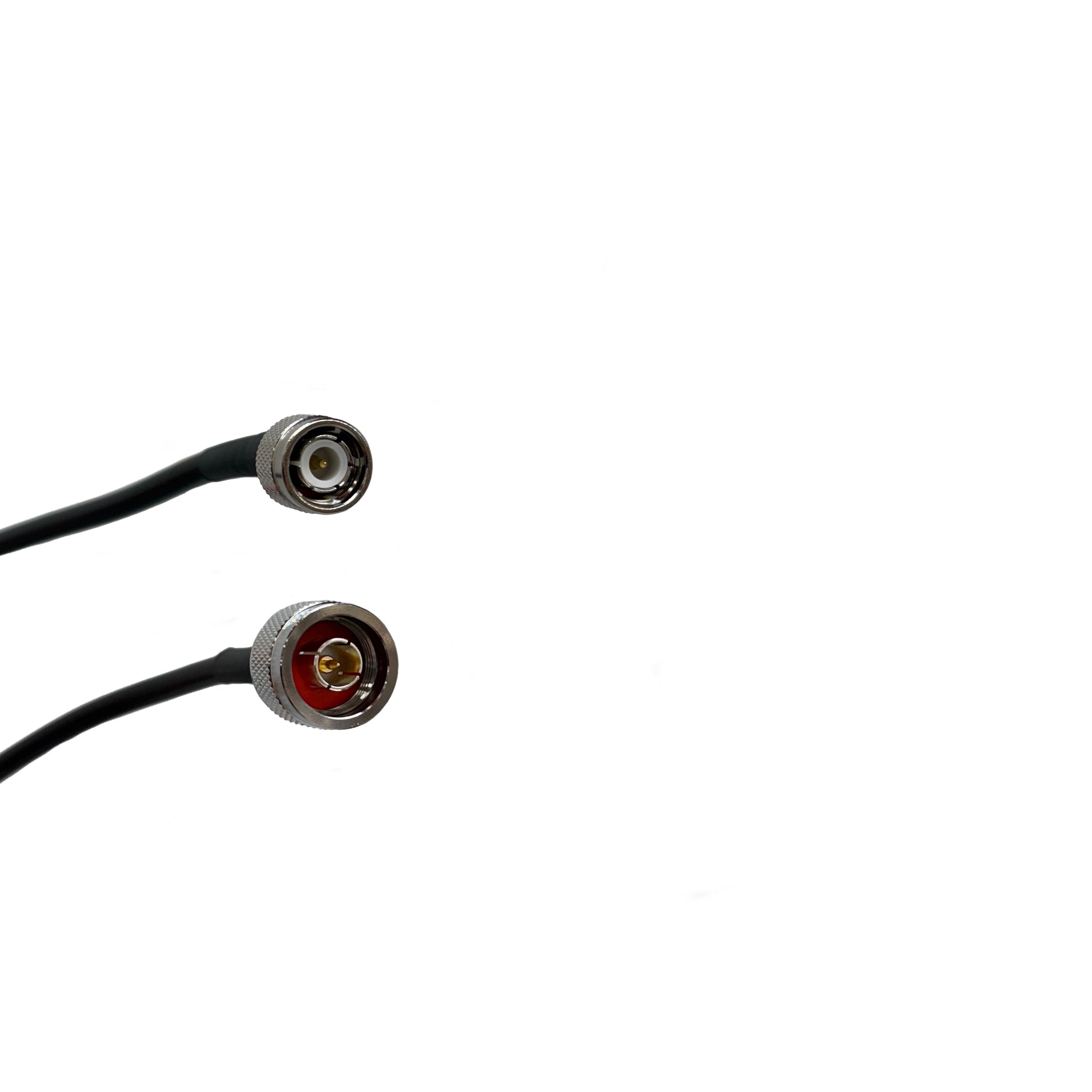

    • Connectors: N Male to TNC Male
    • Cable:LMR240 Ultraflex
    • Stranded Center Conductor for Maximum Flexibility
    • Low Loss characteristics
    • 100% Bonded Alum Foil, +90% Tinned Copper, Foam Polyethylene
    • Double shielded to help prevent signal leakage & to improve the ground plane.
    • 50 Ohm
    • UV Resistant

    Product Specs

    Cable type: LMR-240, RG8X

    Connector type: N to TNC

    Gender: Male to Male

    • For a custom length, call: 866-770-3207 or email: sales@customcableconnection.com
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Barcode Length / Color Weight
      104209-1C 810105475289 1ft / Black 0.25 lb
      104209-3C 810105475296 3ft / Black 0.29 lb
      104209-6C 810105475302 6ft / Black 0.3 lb
      104209-10C 810105475319 10ft / Black 0.34 lb
      104209-12C 810105475326 12ft / Black 0.4 lb
      104209-15C 810105475333 15ft / Black 0.5 lb
      104209-20C 810105475340 20ft / Black 1.2 lb
      104209-50C 810105475357 50ft / Black 3.0 lb
      104209-100C 810105475364 100ft / Black 5.0 lb
