USB 3.1 Type C to HDMI Cables - Thunderbolt 3

Brand: Custom Cable Connection      SKU: 113609-3

    • Our high-quality USB Type-C to HDMI cable enables you to connect a Type-C equipped computer (Macbook Pro) or smartphone directly to a HD monitor, TV or projector with HDMI input.
    • USB-C connected devices must support DP Alt Mode or ThunderboltTM 3 connector.
    • Gold-plated connector provides superior transmission, high reliability and durability.
    • USB Type-C features a smaller and reversible connector that makes it easier to plug in.
    • Support HDMI resolution up to 4K x 2K@60HZ.
    • Support USB 3.1 communication and features.
    • Support per lane data rates of 2.7Gbps (HBR) and 1.62Gbps (RBR).
    • Support content protection of HDCP.
    • USB bus power (no external power supply)

      Thunderbolt is the brand name of a hardware interface developed by Intel (in collaboration with Apple) that allows the connection of external peripherals to a computer. Thunderbolt 1 and 2 use the same connector as Mini DisplayPort (MDP), whereas Thunderbolt 3 re-uses the USB-C connector from USB.

      There is a great deal of confusion about the difference between Thunderbolt 3 and USB-C. No doubt this at least partially is because the ports look identical apart from the "traditional" three prong USB logo on USB-C cables and the "Lightning Bolt" logo on Thunderbolt 3 cables.

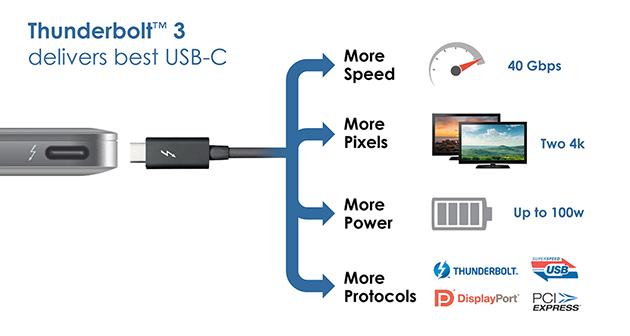

      The simplest explanation is that USB-C refers to the shape of the port and Thunderbolt 3 refers to the connectivity standard. Thunderbolt 3 combines Thunderbolt, USB, DisplayPort and power via a single USB-C connector.
      So, a Thunderbolt 3 device is connected to a "Touch Bar" MacBook Pro using the Thunderbolt 3 standard via a USB-C shaped port. Hardware commonly referred to as "USB-C devices" also will work with a Thunderbolt 3 port, but they will not be able to take advantage of the maximum speed provided by Thunderbolt 3 devices.

    Product Specs

    Connector type: USB C to HDMI

    Gender: Male to Male

    • For a custom length, call: 866-770-3207 or email:
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Length / Color Weight
      113609-3 3ft / Black 0.2 lb
      113609-6 6ft / Black 0.25 lb
      113609-10 10ft / Black 0.28 lb
