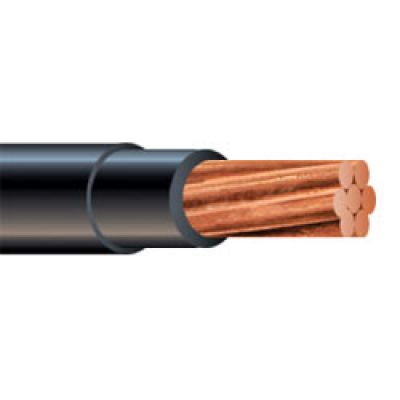

THHN Cable, 4 AWG, 19 Strand, 600V, Annealed Copper, PVC Insulation, Nylon Jacket

Brand: Custom Cable Connection      SKU: THHN-4-BLK-100

  • Applications:

    6 AWG THHN/THWN-2 building wire is intended for general purpose applications as defined by the National Electrical Code (NEC). 6 AWG THHN-THWN-2 is permitted for new construction or rewiring for 600-volt applications. Applications requiring Type THHN or THWN-2, the conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C in oil or coolants. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations. Most common building wire used often on sub-panels, hot tubs & jacuzzis.

    • Size: 6 AWG
    • Number of Strands: 19
    • Cross Section Area: 13.3 mm2
    • PVC Insulation Thickness (Conductor): 0.760 mm / 0.030 inches
    • Nylon Jacket Thickness: 0.006 inches
    • Outside Diameter: 0.33 inches
    • Weight: 0.125 lbs per ft
    • Allowable Ampacity: 75 Amps at 75ºC / 85 Amps at 90ºC

    Product Specs

    Cable type: THHN 4 AWG Stranded

    • For a custom length, call: 866-770-3207 or email:
    • Net 30 Terms Available
    • School and Universities automatically approved for Net 30 with PO
    • Quantity discounts and RFQ's available
    • Same day shipping (1PM Cutoff)
    • Sku Length / Color Weight
      THHN-4-BLK-100 100ft / Black 13.0 lb
      THHN-4-RED-100 100ft / Red 13.0 lb
      THHN-4-WHT-100 100ft / White 13.0 lb
      THHN-4-GRN-100 100ft / Green 13.0 lb
      THHN-4-BLK-500 500ft / Black 65.0 lb
      THHN-4-RED-500 500ft / Red 65.0 lb
      THHN-4-WHT-500 500ft / White 65.0 lb
      THHN-4-GRN-500 500ft / Green 65.0 lb
